Product details

Condition
New
Location
South Africa
Product code
EC-070
Bob Shop ID
593183612

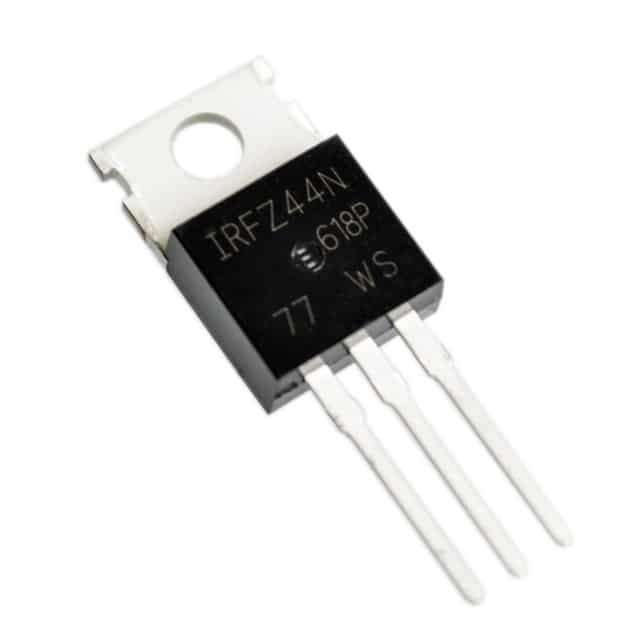

Power Mosfet IRFZ44 49A 55V

Advanced HEXFET Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels of approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

IRFZ44 Specifications:

IRFZ44 Datasheet.

Channel TypeN
Maximum Continuous Drain Current49 A
Maximum Drain Source Voltage55 V
Package TypeTO-220AB
Mounting TypeThrough Hole
Pin Count3
Maximum Drain Source Resistance17.5 m
Channel ModeEnhancement
Maximum Gate Threshold Voltage4V
Minimum Gate Threshold Voltage2V
Maximum Power Dissipation94 W
Transistor ConfigurationSingle
Maximum Gate Source Voltage-20 V, +20 V
Number of Elements per Chip1
Transistor MaterialSi
Typical Gate Charge @ Vgs63 nC @ 10 V
Maximum Operating Temperature+175 C
SeriesHEXFET
Height8.77mm
Minimum Operating Temperature-55 C
