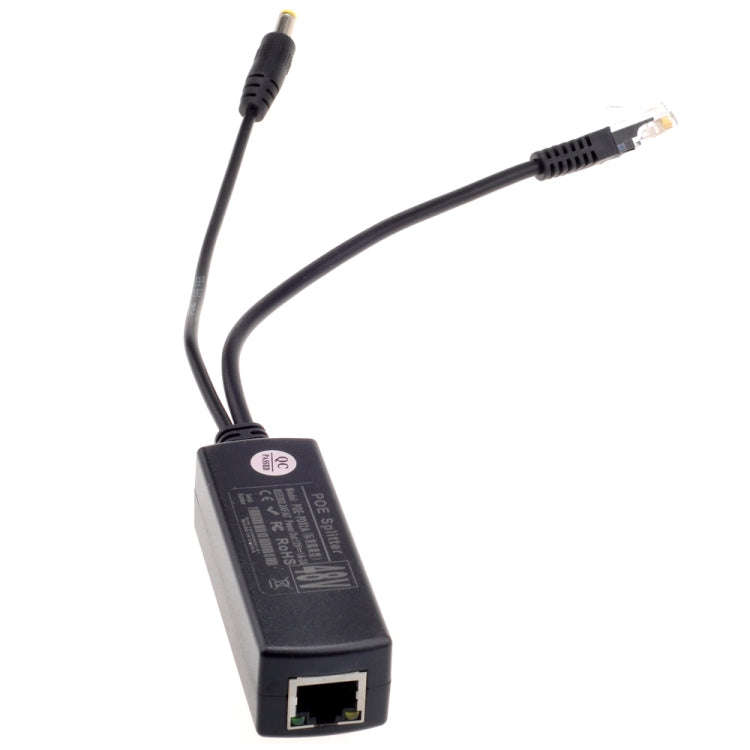

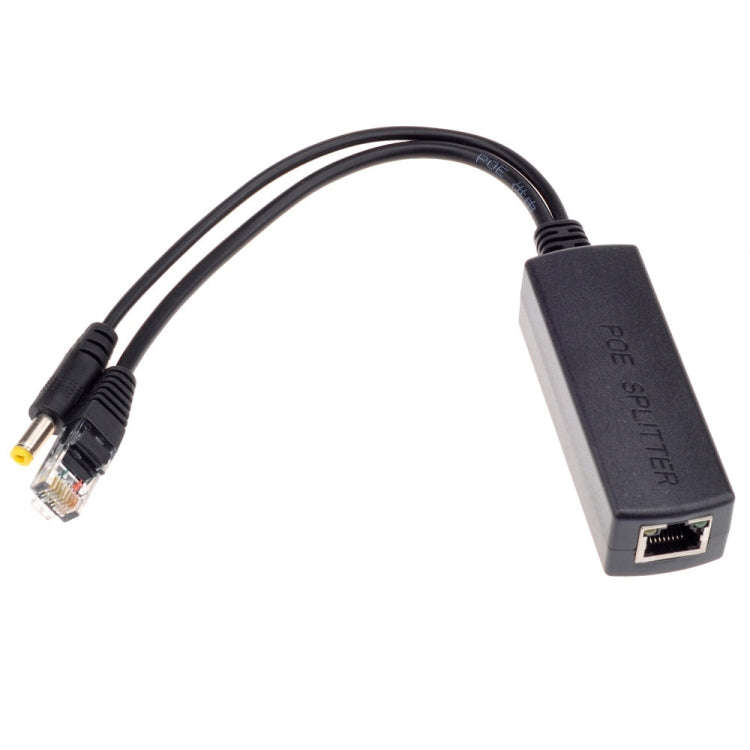

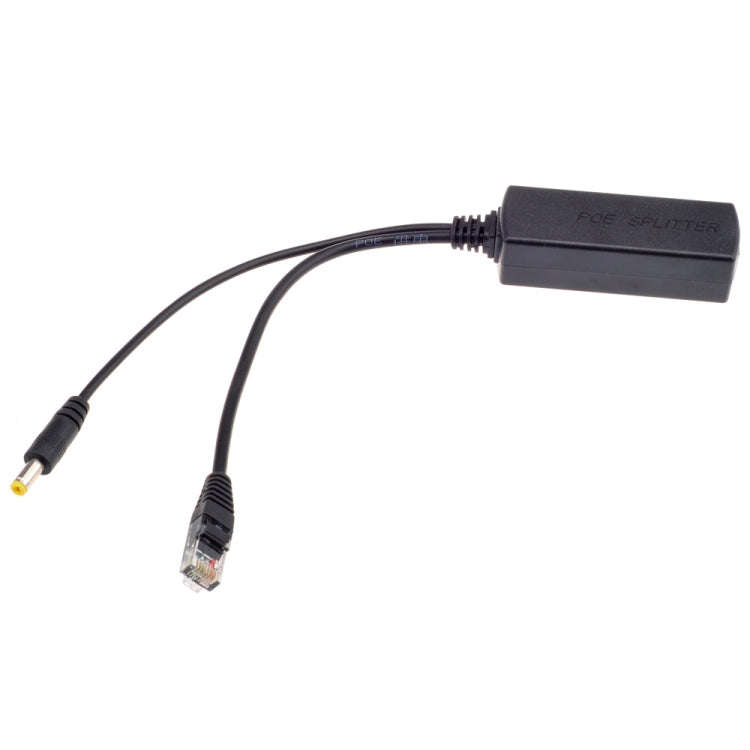

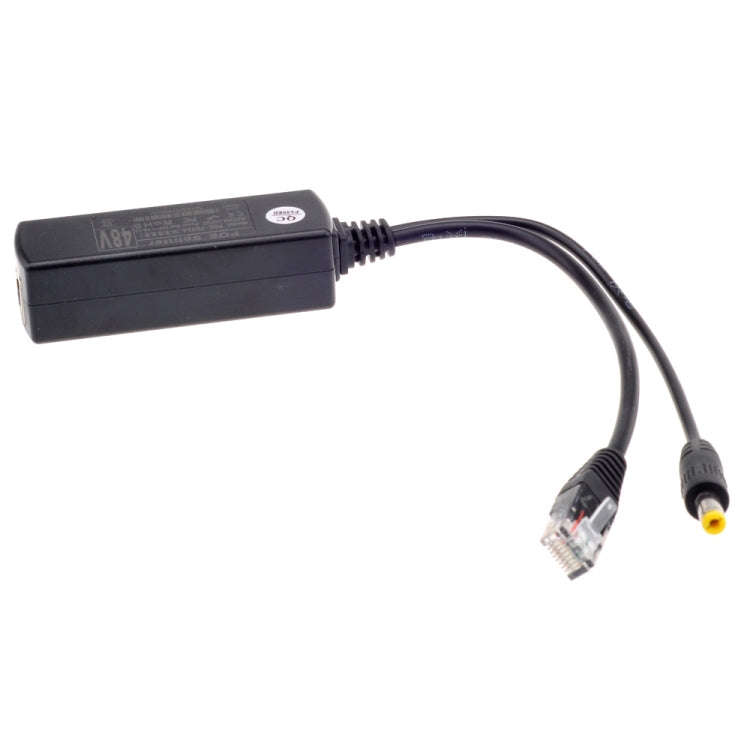

Power Over Ethernet Splitter 48V Input and 12V Output 48V PoE Splitter Adapter, Let 12V DC IP Cam...

Specification:
1.Power 15.4W
2.Output : 12V
3.Input : DC48V
4.Support 10/100Mbps
5.IEEE802.3af standard
6.Power in support: 1236 pin
Features:
1. Support the IEEE 802.3af the Power over Ethernet standard.
2. Support 10/100Mbps data transmission.
3. PoE Splitter receiving end supports variety of voltage of 44V-57V transfer.
4. Provide 12V 1A power to adapt to a variety of small network equipment.
5. Circuit isolation protection, effective protection of electrical equipment.
6. High quality design guarantees the stability and reliability of the equipment in work.
POE Parameters
1. Maximum Power: 15.4W (IEEE 802.3af)
2. Input voltage :40-57V
3. Output voltage: 12V
Connect Port
1. Input: an input RJ45 interface
2. Output: an output RJ45 connector and a DC output interface
3. Data transfer rate: 10/100Mbps
4. The maximum transmission distance: 100 meters
Network standards
1.IEEE802.3i 10 BASE-T,
2.IEEE802.3i 100 BASE-TX,
3.IEEE802.3x flow control
4.IEEE802.3af /IEEE802.3at
