Power Supply Box Adjustable Voltage + Current:
Category: 3000312645 - Power Supply
Specifications:
Model: HJS-480
Input: 220V
Output: 0-60V
Power: 480W
Rated Current: 8A
Protections: Battery protection / Overload / Overvolt / Overtemp / Surge
Working Temperature: -10 to 60deg
Size: 215 x 115 x 50mm
- Convert AC 110V/220V to DC 0-60V (0-8A)
- Dual knob switch: a 0-24V DC voltage fully adjustable switch and a current fully adjustable switch, built in a multi-loop high precision and high-end potentiometer.

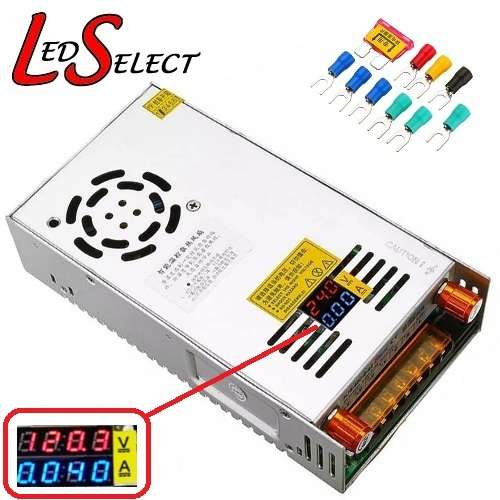

- Dual high precision digital display, the real-time output DC voltage and current.
- Smart protections: support shortage protection, overload protection, overvoltage protection, surge protection, automatic recovery function.
- Built-in intelligent temperature control cooling fan: it starts working when the temperature is up to certain value, and stops working when no need for cooling.
- Dual input voltage, built-in 110V AC/220 V AC toggle switch (on the side), the default voltage is 220V AC.
- Wide input voltage range, widely used in DC equipment, DC motor stepless speed adjustment, battery charging, Industrial automation, LED light strip display, student experiment, communications, etc.
Operational Use:
How to limit current to adjust current?

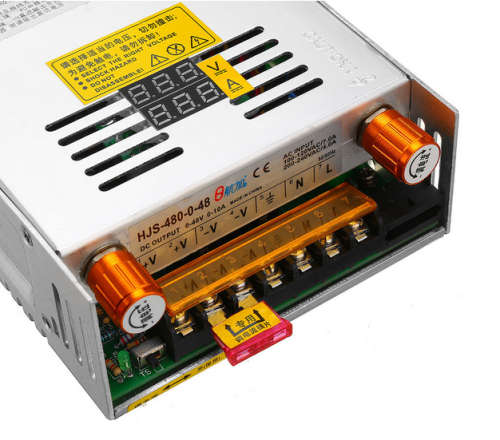

1. Operate in the case of power failure, pull the small pull switch in the lower left corner to the current regulating gear
2. Pull out (dedicated current regulating insert) to the 2nd and 3rd ports of the wiring port, loosen the port screw with a screwdriver, and tighten with a screwdriver (at this time, connect to the listed power), and then connect The voltage of the meter shows 0.00V, and the current shows the current current parameter. At this time, the power supply will emit a small current.
3. On the right side (adjust current knob), you can adjust the desired current limit parameter, and display the current parameter synchronously with the digital display. 0-21A/0-16A/0-11A/0-6.5A can be adjusted in the whole process.
4. Remove the (special adjustment current plug) and insert it back into the original insert card holder. After removing the digital display, the voltage is about 0.90V, and the current is 0.00A.
5. Pull the pull switch in the lower left corner to the right to open the "open (use)" position.
6. The current power supply is in the parameter value of the current limit. The power supply is adjusted to a few V (the digital display shows the output voltage in real time), the current does not change, and the current reaches the current limit of 95% of the current limiting parameter. Overload protection
7. The current parameter displayed by the digital display at this time is the current value of the device load, and the load current is monitored in real time.
