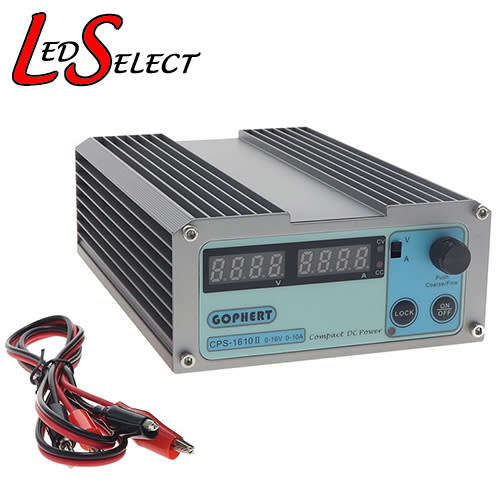

Power Supply Bench 0-16V 0-10A Gophert **LOCAL STOCK**

New

1 was available

R1,699.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

99.95 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

PWR304

Bob Shop ID

496133307

Power Supply Bench 0-16V 0-10A:

Category: 3000312645 - Power Supply

Specifications:

Model: CPS-1610
Operation Voltage Range: Can switch between 110V or 220V AC
Operation Frequency Range: 45 - 65HZ
Output Voltage Range: 0 - 16V
Output Current Range: 0 - 10A
Efficiency (220V/full load): ≥ 87%
Full Load Input Current (220V AC): ≤1.4A
No Load Input Current (220V AC): ≤ 80mA
Volt Meter Accuracy: ≤ 0.3% + 1 digit
Current Meter Accuracy: ≤ 0.3% + 2 digit

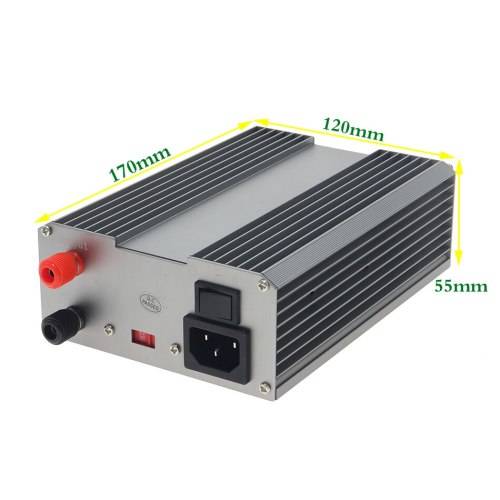

Size: 170 x 120 x 55mm

Constant Voltage:
Load Regulation (0-100%): ≤ 30mV
Line Regulation(198-264V AC): ≤ 10mV
Ripple & Noise (Peak-Peak): ≤ 30mV
Ripple & Noise (r.m.s): ≤ 3mV
Set Accuracy: ≤ 0.3% + 10mV
Transient Response Time (50%-100% rated Load): ≤ 1.0ms

Constant Current:
Load Regulation (90%-10%): ≤ 50mA
Line Regulation (198-264V AC): ≤ 20mA
Ripple & Noise (Peak-Peak): ≤ 30mAp-p
Set Accuracy: ≤ 0.3% + 20mA

Features:

High power density, smallest and compact
Aluminum shell, lower EMI
Microprocessor (MCU) Control
Using Encoder to set the voltage and current
Four digital volt meter and three digital current meter
The current meter displays mA automatically when current below 1A
High efficiency, up to 88%
Output ON/OFF
LOCK switch
110V/220V main AC power input Selectable
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection

Includes:

1 x Adjustable Switching DC Power Supply
1 x AC Power Cable
1 x DC Power Output Tester Wires
1 x User Manual
