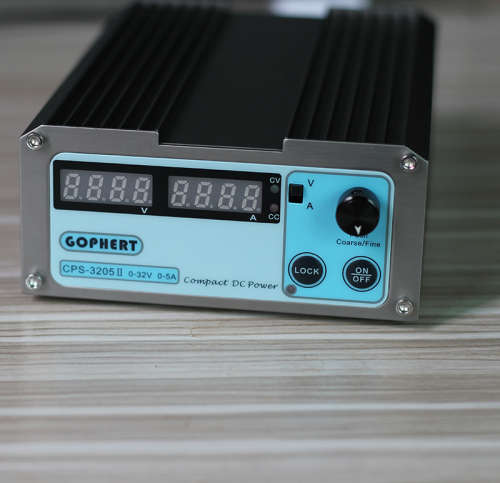

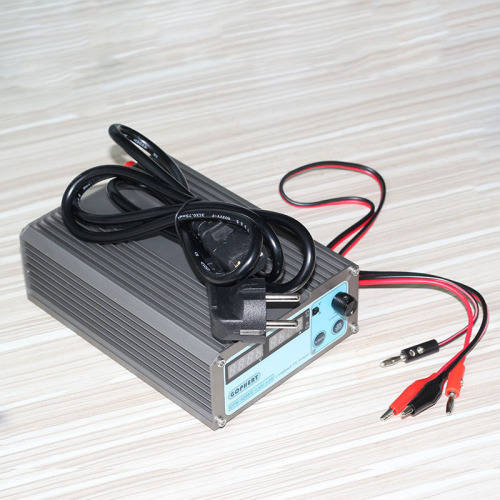

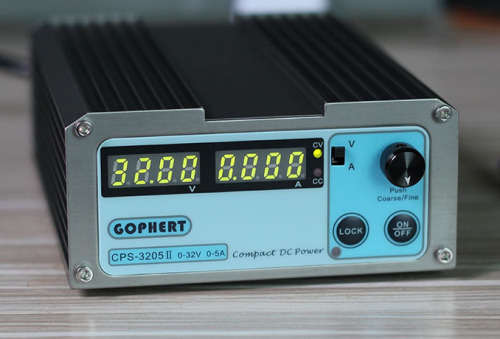

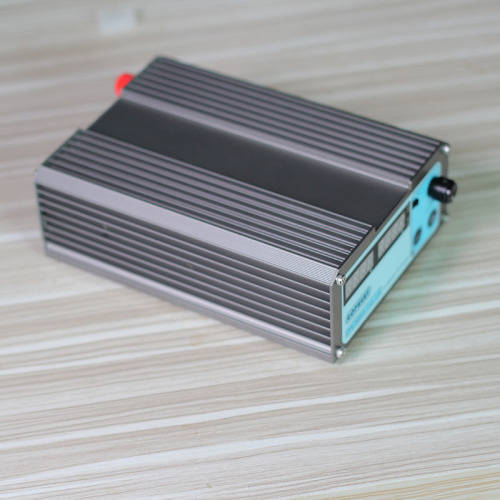

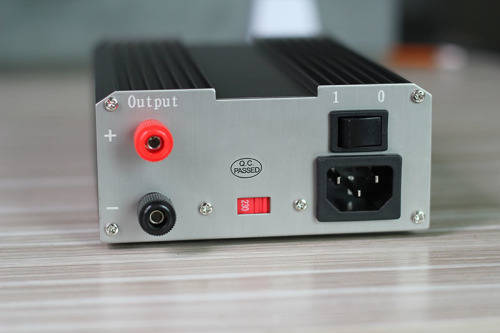

Power Supply Bench 0-32V 0-5A:
Specifications:
Input Voltage: Can switch between 110V or 220V AC
Output Voltage: 0-32V DC
Output Current: 0-5A
Load Regulation: (0-100%) ≤ 30mV
Line Regulation: (198-264Vac) ≤ 10mV
Ripple Noise: (Peak-Peak) ≤ 30mV
Ripple and Noise: (r.m.s) ≤ 3mV
Setting Accuracy: ≤ 0.3% + 10mV
Transient Response Time: (50% -100% rated Load) ≤ 1.0ms
Load Regulation: (90% -10% Rated Voltage) ≤ 50mA
Line Regulation: (198-264Vac) ≤ 20mA
Ripple Current Noise: (peak - peak) ≤ 30mAp-p
Setting Accuracy: ≤ 0.3% + 20mA
Features:
Microprocessor (MCU) control
High power density, compact appearance
Aluminum enclosure, low electromagnetic interference
Using encoders adjust the voltage and current settings quickly and accurately
Four three-digit digital voltmeter and ammeter set
When the operating current is less than 1A, ammeter automatically display mA
Low ripple noise, peak to peak ripple is less than 30mV
Output ON / OFF switch
Input voltage 220VAC / 110VAC switching
Lock button, the output switch button and knob lock to prevent accidental changes
Intelligent Protection: Output short circuit protection, overvoltage protection tracking (Tracking OVP), overcurrent protection Track (Tracking OCP), over temperature protection (OTP)
