Features:
Universal AC input/ Full range
Low cost, high reliability
High efficiency, low working temperature
Built-in EMI filter
100% full load burn-in test
Low ripple & noise
Protections: short circuit/overload/over voltage
Specifications:
DC output: +5V/10A +12V/5A -5V/1A
Input voltage: 100-220VAC
Input frequency: 50-60Hz
Impulse current: cold start, 20A at 115V, 40A at 230V
Overload protection: 105%-150% hiccup mode, auto-recovery
Overvoltage protection: 115%-135% rated output voltage
Set up, rise, hold up time: 800ms, 50ms, 20ms/115VAC
Pressure: -I/P—O/P, I/P—FG1.5KV/min
Working temperature: 0-50¿ @100%, -10¿@80%, 60¿@60%
Safety standards: Correspond to UL1950, EN60950, CB, CE

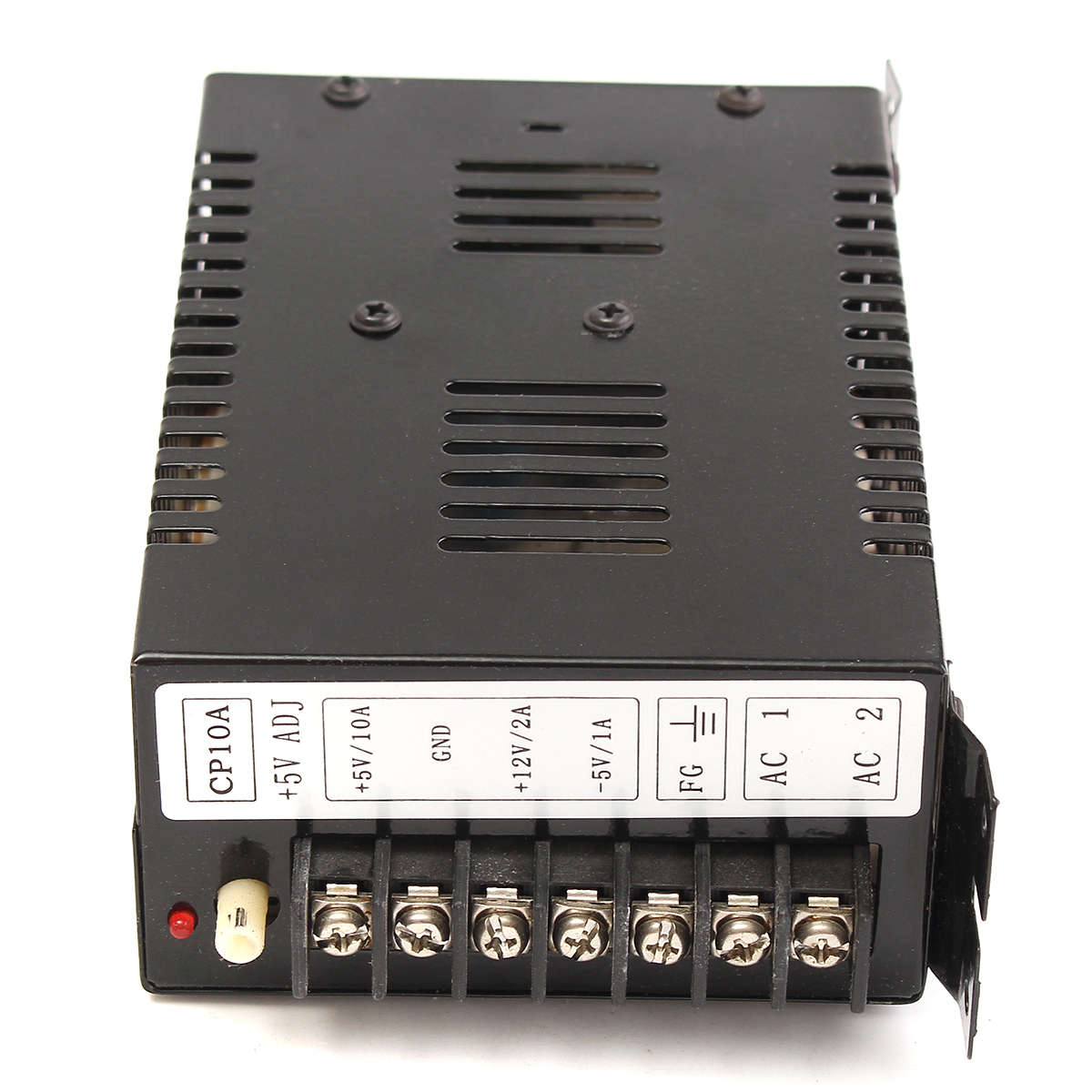

Interface type: 8P/9.5mm pitch terminal block with cover
Package Included:

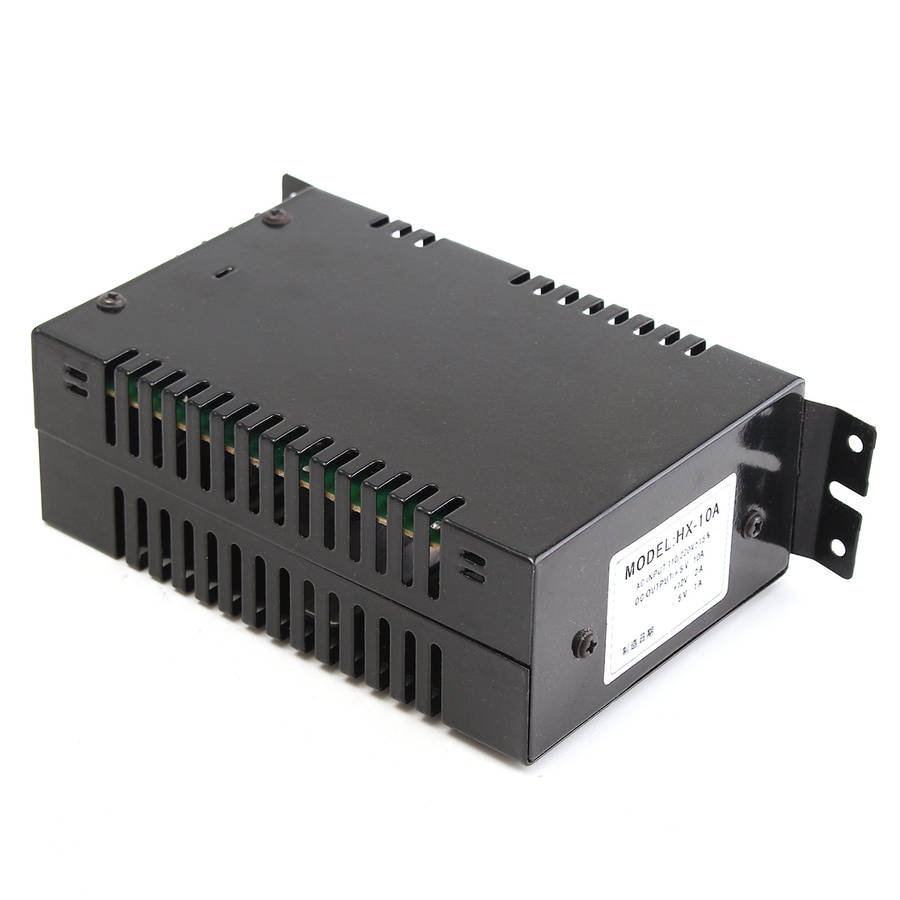

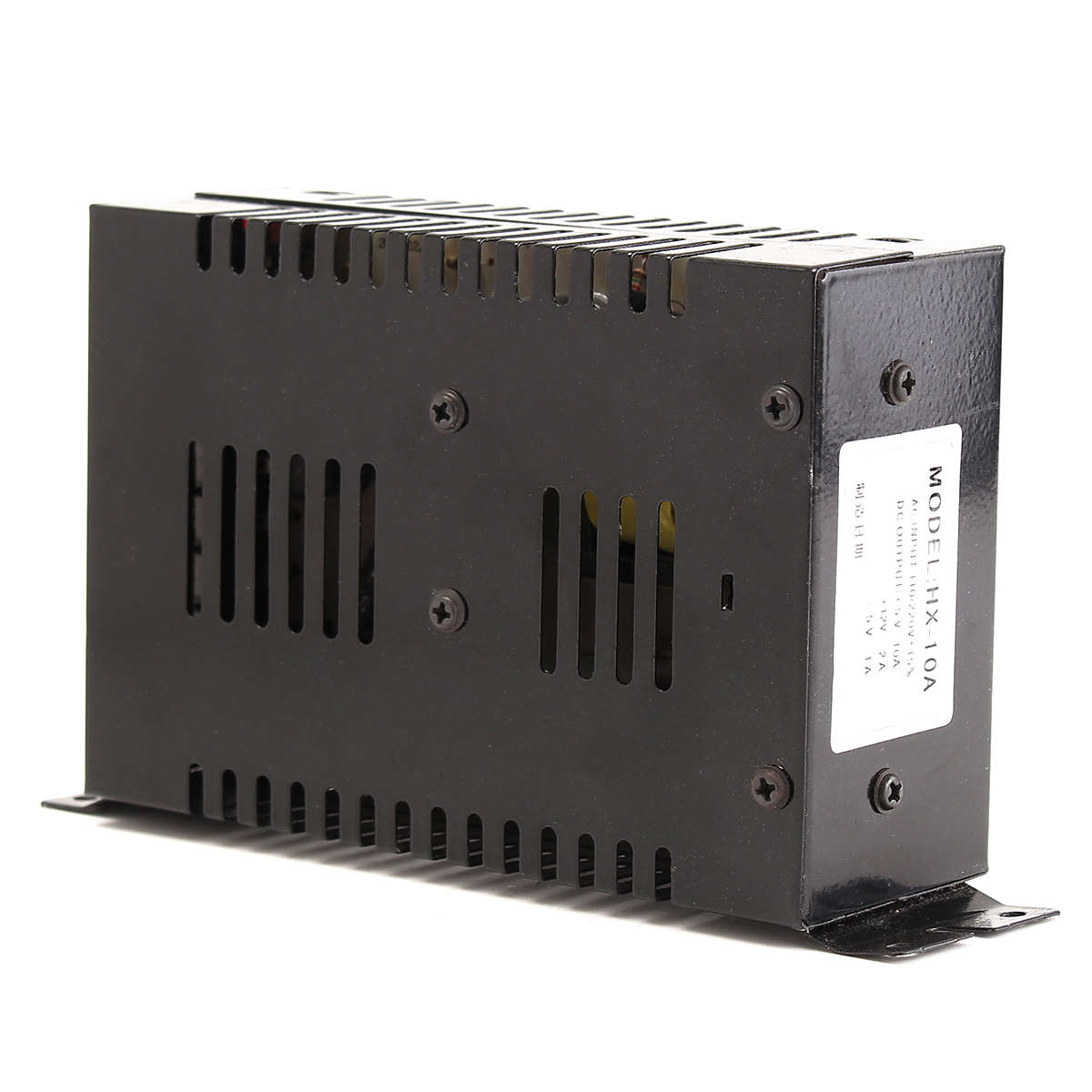

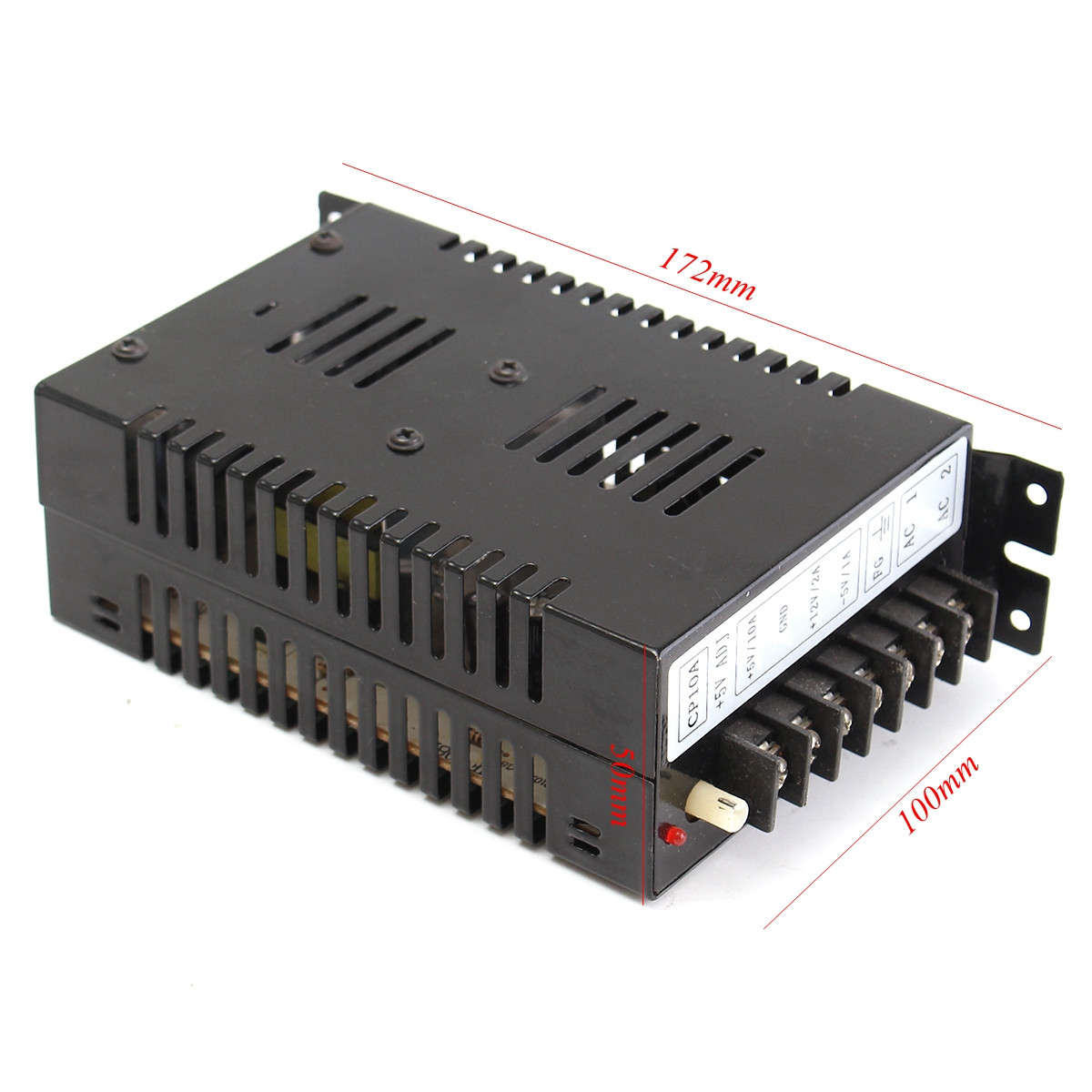

1 x Switching Power Supply
