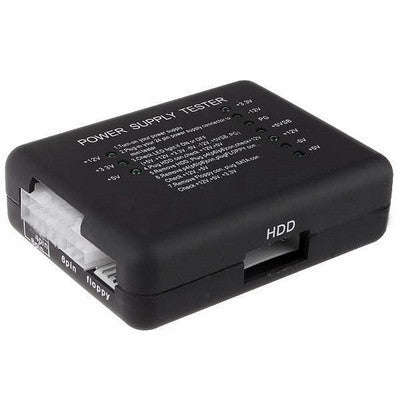

Power supply tester

This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 10 to 15 working days.

We urge you to please read shipping details before placing your order.

---------------------------------------

1) Turn-on your power supply

2) Plug-in your 24 pin power supply connector to mini tester

3) Check LED light if ON or OFF (+5V +12V +3.3V -5V -12V +5VSB PG)

4) Plug HDD con check +12V +5V

5) Remove HDD plug p4(p6/p8)con check +12V

6) Remove p4(p6/p8)con plug FLOPPY con check +12V +5V

7) Remove Floppy con plug SATA con Check +12V +5V +3.3V

* Specification

1) Voltage source: 20/24pin(ATX-connector)

2) Voltage test: +12V +12V +5V -5V +3.3V 5V Stand by (SB) 12V power Good(PG)

3) Connectors: Floppy HDD CDROM SATA 4pin(P4) 8pin(Dual-CPU) 6pin(PCI-Express)

---------------------------------------
