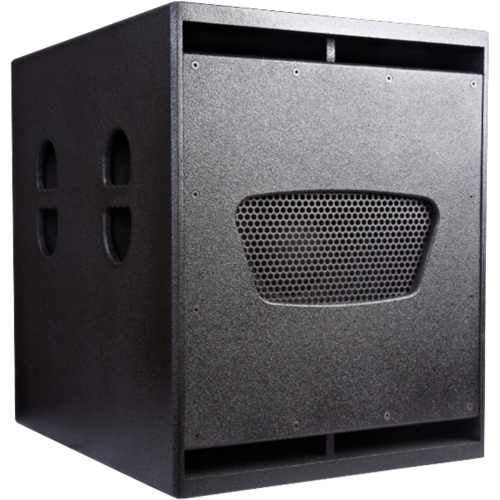

The complete range of ARTEMIS Sub-Woofers has a rugged, multi-layered painted black Plywood birch enclosure for the performance characteristics that only wood can offer. The range of ARTEMIS Sub-Woofer cabinets have been designed as a high performance active Sub bass series.
Designed to compliment any 3rd party full-range PA loudspeaker and a perfect combination for the PowerWorks ARTEMIS and APOLLO series speakers. These subwoofers deliver a powerful, clear and low-end punch. With 1600 watts (peak) of Class D power and a dual ported enclosure, it has all the Power needed for low-frequency performance audio. The custom 12-inch transducer has a 4 inch voice coil.
To provide maximum versatility, the ARTEMIS series of active Sub-Woofers offers a full control DSP to provide extended low-frequency performance. The DSP allows you to phase control the system. There is frequency control to allow the operator to change the crossover frequency of the sub. In addition there is gain control built into the DSP.
The system incorporates 2 x Combo XLR and 6.3mm TRS line-level inputs and 2 x XLR outputs are provided to connect full-range systems or multiple subwoofers in larger systems.
Active Subwoofer
- Equipped with a 1x 12 woofer 4 Voice Coil
- Power: 800 Watts RMS / 1600 Watts Peak
- Class D power amplifier
- Frequency response: 40-150 Hz
- Maximum SPL (sound pressure level): 124 dB
- Housing: 18mm Plywood Multi-Layered Painted Black
- Inputs: 2 x Multi-combo XLR and 6.3mm TRS line-level inputs
- Outputs: 2 x XLR outputs
- Stand flange mount: 35 mm & M20
- Dimensions: 655(H) x 485(W) x 625(D) mm
- Weight: 32,2 kg
- Optional cover available
ARTEMIS Bass Reflex Series Family
ARTEMIS 12SB
12 Active Professional Sub-Woofer
Frequency Response
40Hz — 150KHz
Max SPL 124 dB
Amplifier Class D
Power Output 800 Watts
2 x Combo XLR and 6.3mm TRS line-level inputs
Link Out: 2 x XLR outputs
Full DSP Control
18mm Plywood Multi-Layered Painted Black
Height 655 mm
Width 485 mm
Depth 625 mm
Weight 32.2 kg
ARTEMIS 15SB
15 Active Professional Sub-Woofer
Frequency Response
35Hz — 150KHz
Max SPL 128 dB
Amplifier Class D
Power Output 1000 Watt
2 x Combo XLR and 6.3mm TRS line-level inputs
Link Out: 2 x XLR outputs
Full DSP Control
18mm Plywood Multi-Layered Painted Black
Height 710 mm
Width 565 mm
Depth 695 mm
Weight 45.3 kg
ARTEMIS 18SB
18 Active Professional Sub-Woofer
Frequency Response
30Hz — 150KHz
Max SPL 130 dB
Amplifier Class D
Power Output 1000 Watt
2 x Combo XLR and 6.3mm TRS line-level inputs
Link Out: 2 x XLR outputs
Full DSP Control
18mm Plywood Multi-Layered Painted Black
Height 775 mm
Width 645 mm
Depth 765 mm
Weight 52.7 kg
