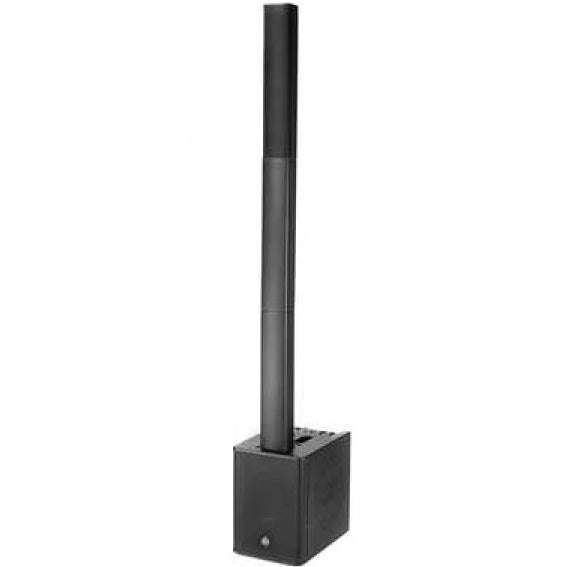

PowerWorks MERCURY -Ultra Portable active column PA system with Mixer & DSP presets
The PowerWorks MERCURY series offers an enormous 1,200 watts of total output (Peak Power) with a frequency response of 50 Hz to 20 kHz and a sound-level pressure of 121 dB (peak). With its outstanding sound properties and wide-ranging functions, this Active column PA system is perfect for musicians, DJs, Conference, Houses of Worship and solo entertainers.
The subwoofer is fitted with 1 x 8 woofer as well as 3 Amplifier modules which drives individually the Sub Woofer 300w and Mid/High 2 x 50w satellite speakers.
Input connections on Channel 1 & 2 Mic/Line & Reverb offer combo sockets (XLR/6.3 mm jack)
Input connections on Stereo Channel 3/4 Line with RCA inputs and 3,5mm jack input.
Master output and Master Reverb output levels can be individually adjusted. The PowerWorks PA Column has 4 preset modes (Music, Live, Hi-Fi and Speech)
Mix XLR Output
Designed for easy transportation, the PowerWorks MERCURY P8 consists of a subwoofer and Mid/High array with a total weight of 13,75 kg.
Bluetooth Streaming
Easy streaming set up with music on your smart phone, computer or tablet. Easy set up and you can stream all your favourite music from any Bluetooth-equipped device.
SPECIFICATIONS
| MODEL | MERCURY-P8 |
| Power-handling nominal (RMS) | 400 W |
| Power-handling, program | 800 W |
| Power-handling, peak | 1200 W |
| Nominal impedance | 4 ohms |
| Max SPL | 121 dB |
| Amplification | Class D (Sub) + 1 x Class AB (Array Column) |
| Protection Circuits | DSP based Multi-band Limiter, Short Circuit and Overheating protection |
| Vertical Array System | 6 x 2,75 Mid/High Speakers |
| Low/Mid Speaker | 1x 8 |
| Sub Woofer | 8 Woofer with 2.0 Voice Coil |
| Directivity | 120° x 20° Array |
| Crossover frequency | 200Hz, 24 dB/oct. |
| Inputs | 2 x XLR/6,3mm Jack Combo, MP3 Input 3,5mm Jack/ Bluetooth/RCA Sockets |
| Output | XLR Mix Out |
| DSP Preset | Music, Live, Hi-Fi and Speech |
| Enclosure | MDF |
| Grille | Metal grille |
| Finish | SubWoofer Painted Wood. Satellite PVC black |
| Dimensions (WxHxD) | SubWoofer 32,5 x 412 x 305 mm
Column Array (3)x 84 x 515 x 63 mm |
| Weight | 13,75 kg / 30.31 lbs |
| MERCURY Series FAMILY | P8 | P10 | P10.2 | P15.2 |
|---|---|---|---|---|
| System Type | Active Portable Column | Active Portable Column | Active Portable Column 2.1 | Active Portable System 2.1 |
| Low-Frequency | 8 Woofer | 10 Woofer | 10 Woofer | 15 High Performance Woofer |
| Frequency Response | 50Hz — 20KHz | 50Hz — 20KHz | 50Hz — 20KHz | 35Hz — 20KHz |
| Max Peak SPL | 121 dB | 122 dB | 125 dB | 132 dB |
| Amplifier | Class D+ Class AB | Class D+Class AB | 3 x Class D | 3 x Class D |
| Power Output (Continous) | 350 Watts | 400 Watts | 400 Watts | 800 Watts |
| Sub-Woofer |
