POWER-Z PD3.0 QC4.0 USB Tester Voltage Current Tester Ripple Dual Type-C Meter

20 available / new

R1,514.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3533

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643387801

Features:

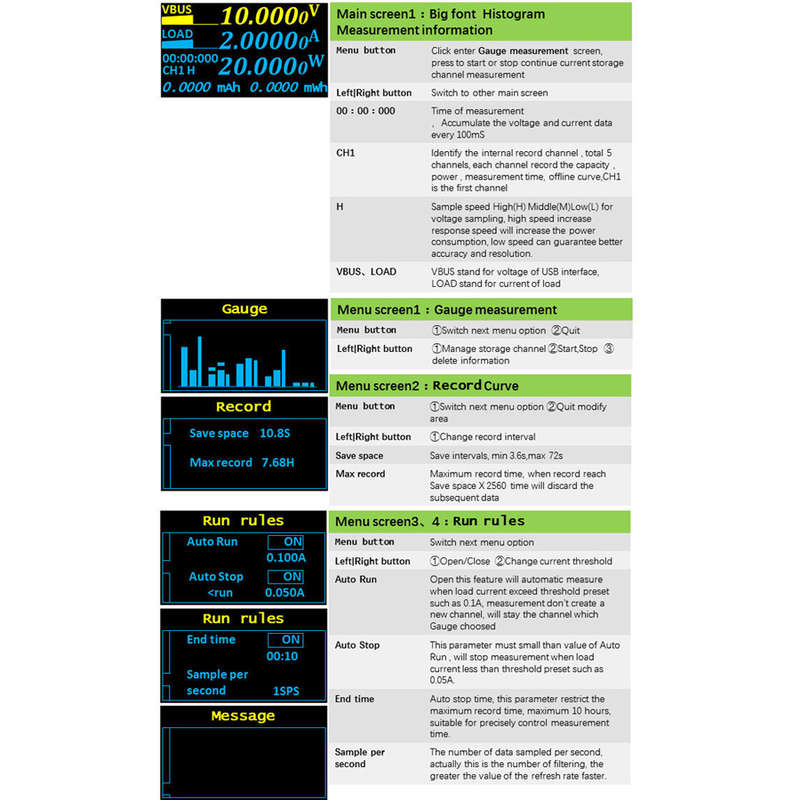

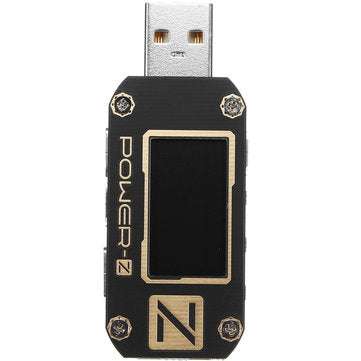

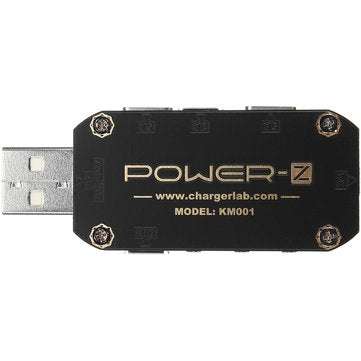

POWER-Z KM001 comes with an OLED screen resolution of 128 64. The front panel with black glasses fiber gold-plated, four corners of the use of immersion gold hole fixed, the appearance and size of the USB table is no different from ordinary, ordinary users will soon be able to get started. USB table built-in a measurement accuracy of 0.02%, temperature drift for the 10ppm voltage and current ADC dedicated chip. At the same time in order to ensure the accuracy of the current, but also integrates a typical temperature drift of 20ppm, power of 3W high-quality sampling resistor. Up to 0.01% error.

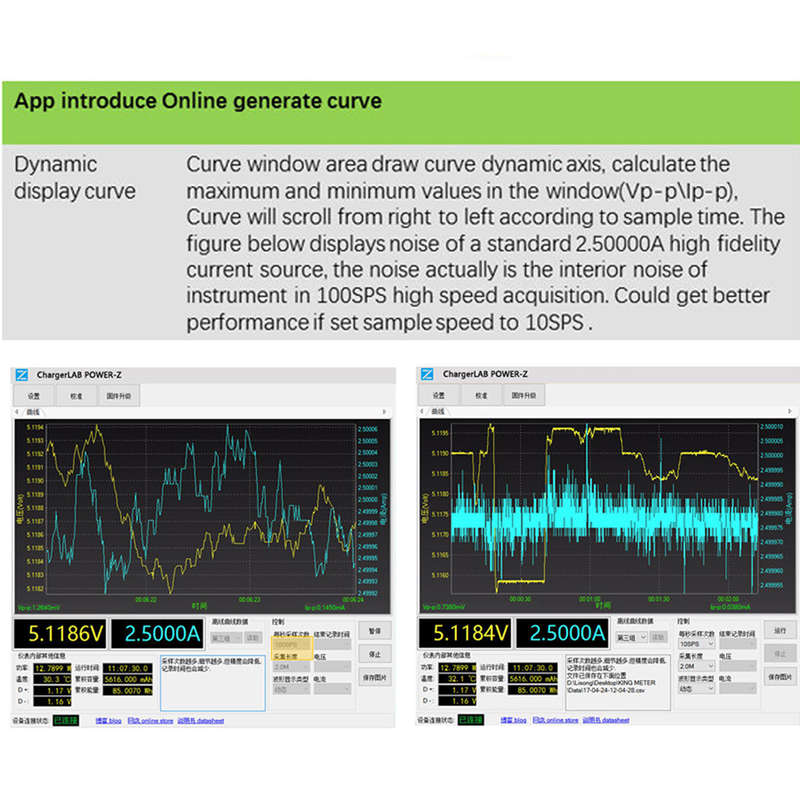

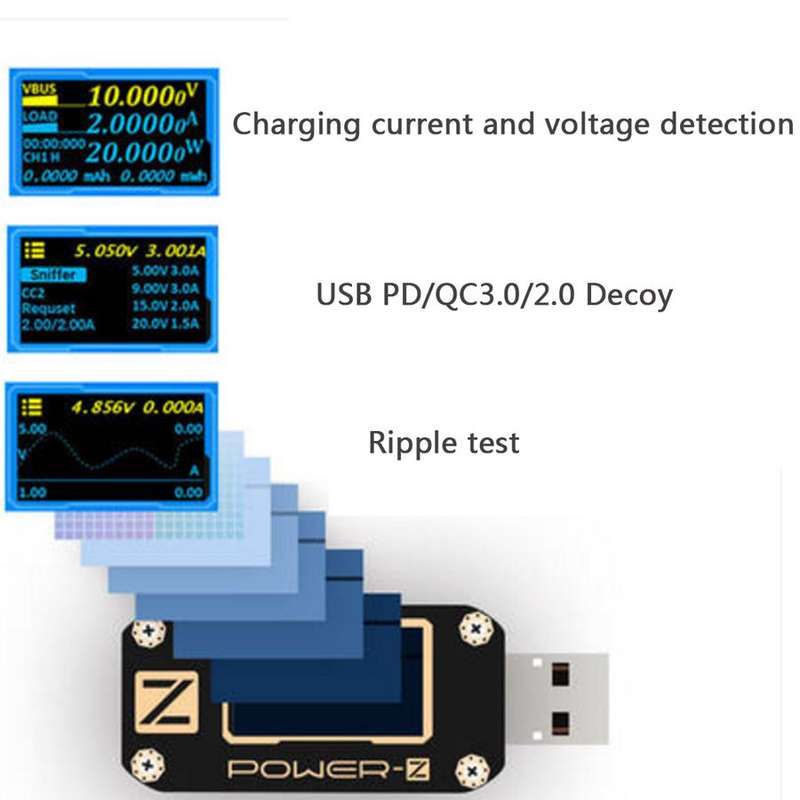

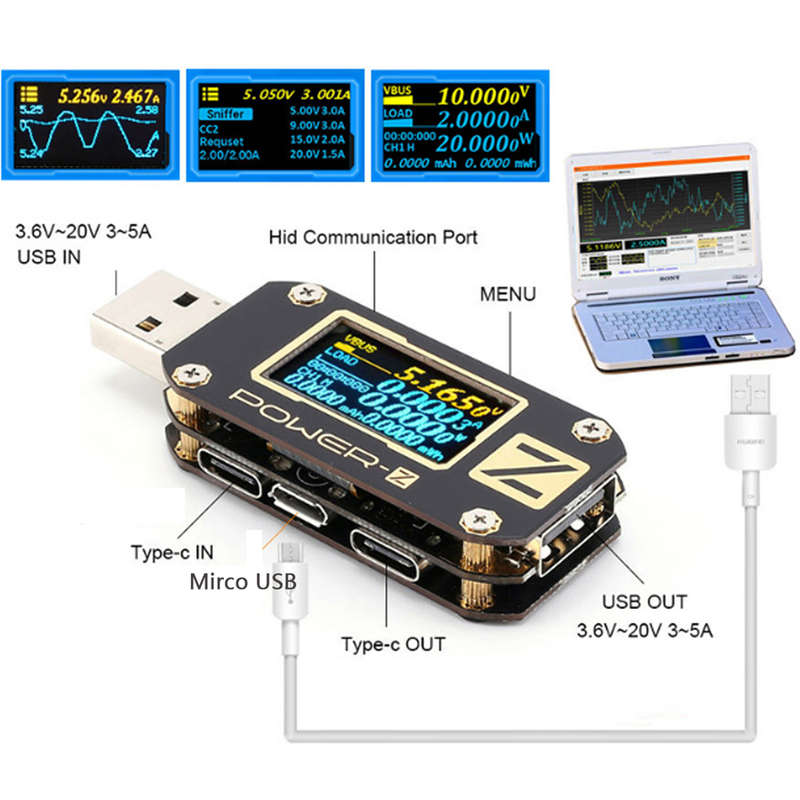

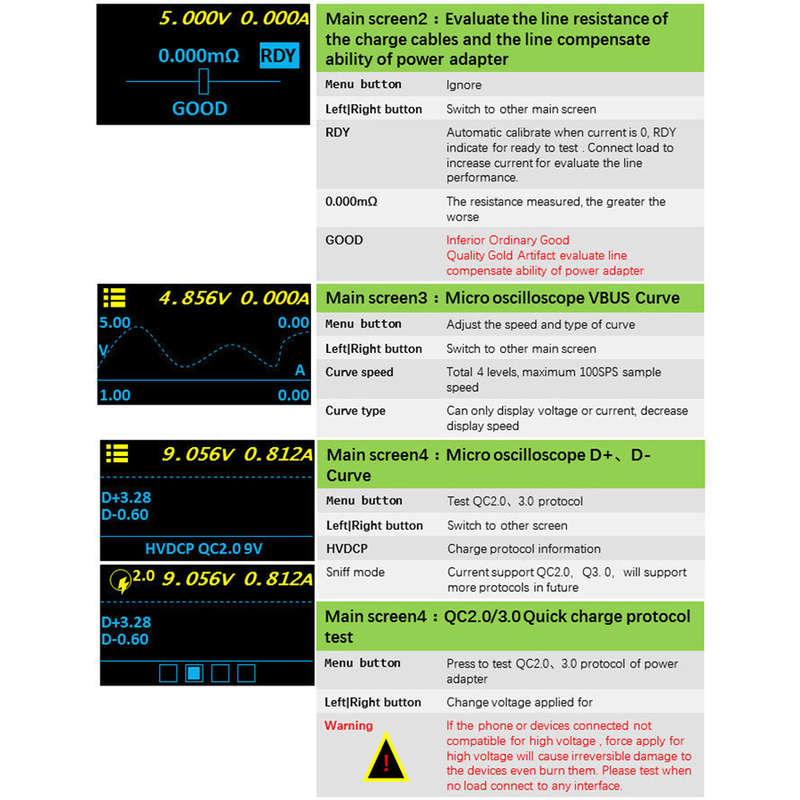

OWER-Z KM001 This test table integrates a total of six USB ports, to meet the needs of most of the players test. Another feature of it is to support ripple testing. Its function is similar to a micro-oscilloscope, you can test less than 50Hz ripple, the daily use of enough. Specification:

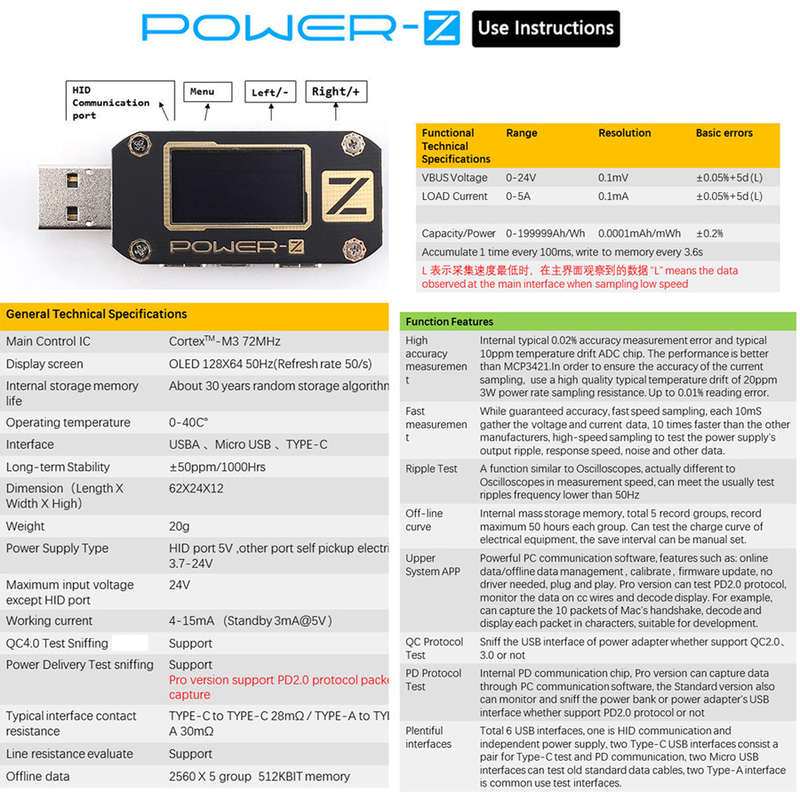

1. Main control IC: Cortex-M3 72MHz 2. Display screen: OLED 128 x 64 50MHz (Refresh rate 50/s) 3. nternal storage memory life: About 30 years random storage algorithm 4. Interface: USB-A, Micro USB, TYPE-C. 5. Long-Term Stability: &pm;50ppm/1000Hrs 6. Power supply type: HID port 5V, other port self pickup electricity 3.7-24V. 7. Maximum input voltage: 24V 8. Working current: 4-15mA (Standby 3mA@5V) 9. QC4.0 Test Sniffing: Support 10. Power Delivery Test Sniffing: Support;Pro version support PD2.0 protocol packet capture 11. Typical interface contact resistance: TYPE-C to TYPE-C 28m ohm/TYPE-A to TYPE-a 30m ohm. 12. Line resistance evaluate: Support 13. Offline data: 2560 x 5 group 512KBIT memory 14. Dimension: 62 x 24 x 12mm

Package Included:
1 x POWER-Z USB PD QC3.0 QC2.0 Tester
