Powered HDMI Splitter 1 x 8 - HDCP 1.2, HDMI v1.3

This item conforms to the HDMI v1.3 specifications described in the section. In general for Blu-ray HDMI v1.0 is required as a minimum and for PS3 / Xbox 360 HDMI v1.2 is recommended as a minimum. HDMI v1.3 exceeds both HDMI v1.0 and v1.2 specifications.

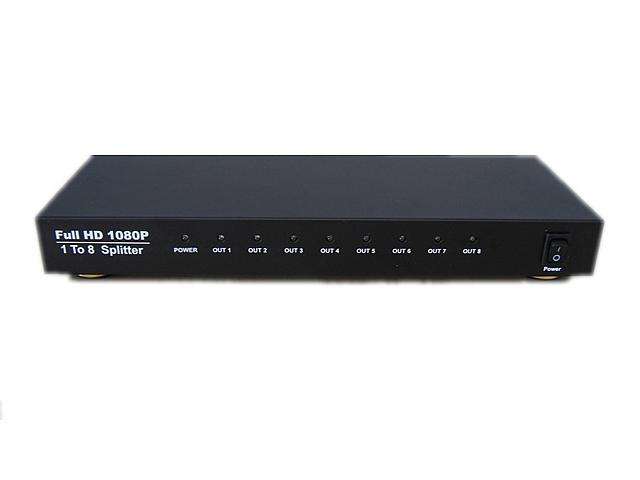

This splitter is a eight outputs HDMI splitter. It distributes the single HDMI input into eight identical outputs. These eight outputs are synchronized.

Series connection of these splitters achieves long distance transmission of HDMI signals of more than 15 meters using HDMI 26 / 24 AWG cable specifications.

HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON.

Note that if any other devices such as a video / audio HDMI Receiver / Amplifier is used between any HDMI Distribution equipment e.g switch, spitter, extender, equalizer the equipment needs to support the HDCP Repeater Bit. The HDCP Repeater bit is a part of the High-bandwidth Digital Content Protection specification and applies to intermediate devices between the source device and the display. If an intermediate device is used but any of the components do not support the repeater bit, the HDCP encrypted connection will fail to pass video content.

The specification defines repeater devices:

HDCP Repeater. An HDCP Device that can receive and decrypt HDCP Content through one or more of its HDCP-protected Interface Ports, and can also re-encrypt and emit said HDCP Content through one or more of its HDCP-protected Interface Ports, is referred to as an HDCP Repeater. An HDCP Repeater may also be referred to as either an HDCP Receiver or an HDCP Transmitter when referring to either the upstream side or the downstream side, respectively.



Specifications :

● Splits the HDMI signal to 8 HDMI display devices simultaneously
● Each port supports HDMI or DVI inputs
● 8dB receiver equalization to compensate for 5m HDMI cable losses
● 3dB driver pre-emphasis to compensate to PCB losses
● HDMI v1.3a and HDCP 1.2 protocol compliant.
● Support deep color 36bit and signal retiming.
● Support digital audio split in HDMI, such as LPCM/Dolby-AC3/DTS7.1/DSD.
● Full-HD 1080p cascaded above 3 layers --> - Stack these 1 x 8 splitters to distribute to 8 x 8 x 8 (3-layers) displays e.g. distribute the audio and video from a single HDPVR / PS3 or other HDMI device to 512 LCD's / Plasma's or Projectors!
● LED Indication: When source device and the sink display devices work in HDCP status, the color of the LED relative to the sink will be blue. When source is Non-HDCP, the color of the LED relative to the sink will be red.
● Dimension(LXWXH) : 320 x 100 x 36 (mm)
● Data transfer speed : 2.25Gbps x 3
● DC5V power supply
