PowerWorks PW-CABLE-TESTER For Audio/Networking Cables
The PowerWorks PW-CABLE-TESTER is a compact, CPU-controlled tool for testing 11 types of audio and networking cables. It features clear LED indicators, a durable steel housing, and supports both automated and manual test modes. Powered by a 9V battery for ease of use.
Features:

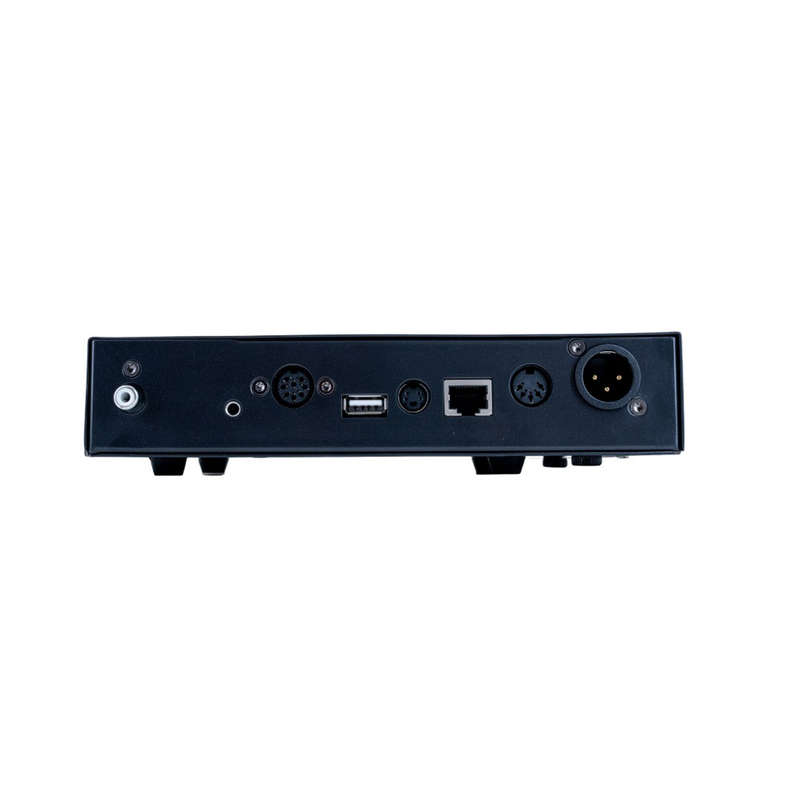

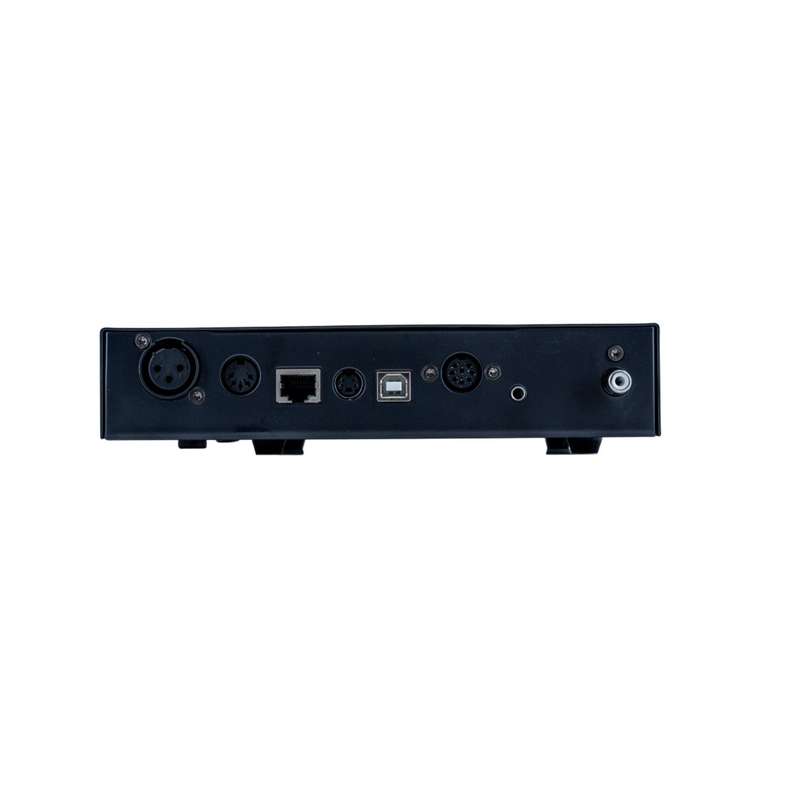

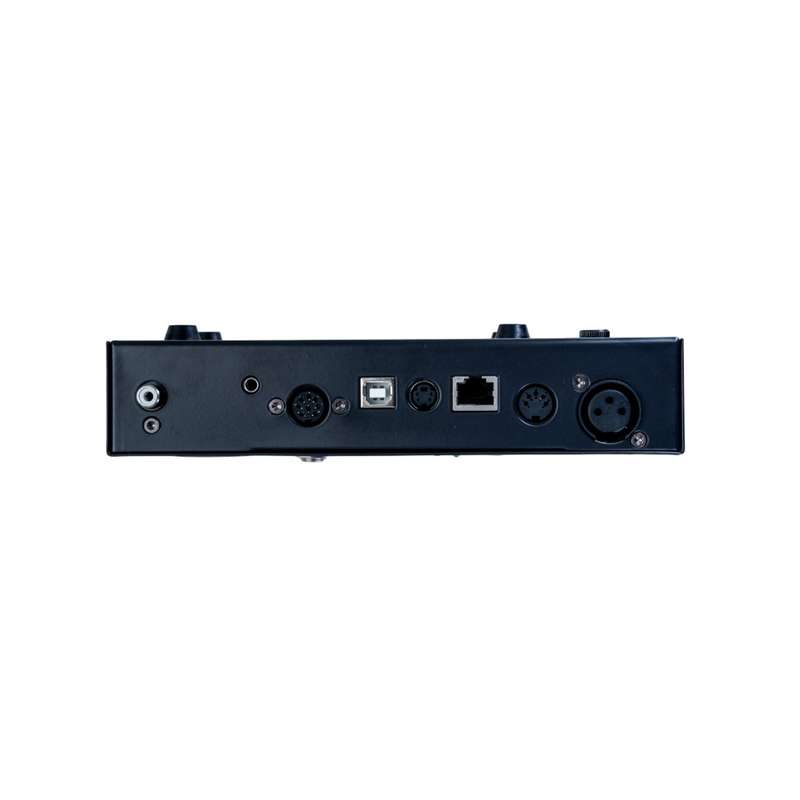

Wide Range of Connector Support: The PowerWorks PW-CABLE-TESTER is compatible with 11 different connector types, including Speakon 4-pin and 8-pin, XLR 3-pin, RCA, USB, RJ-45, 3.5mm, 6.35mm TS/TRS, and S-Video connectors. This versatility makes it ideal for testing a variety of cables used in both audio and video systems, as well as networking setups.
Intelligent CPU-Controlled Testing: Equipped with an intelligent CPU, the tester offers precise and efficient diagnostics. It checks for wiring issues or damage by testing the continuity and integrity of each connection. This intelligent testing ensures that no faulty connections go unnoticed.
Clear LED Indicators: The results of each test are visually displayed on an LED strip, providing clear feedback in real time. The LED indicators light up to show whether the cable is correctly wired or if there is a fault, making the diagnostics process quick and easy.
Manual and Automated Test Modes: The tester provides both automated and manual testing modes. In automated mode, the tester runs a full diagnostic sequence automatically, while the manual mode allows for specific tests to be conducted on individual connections as needed. This gives users flexibility depending on the situation.

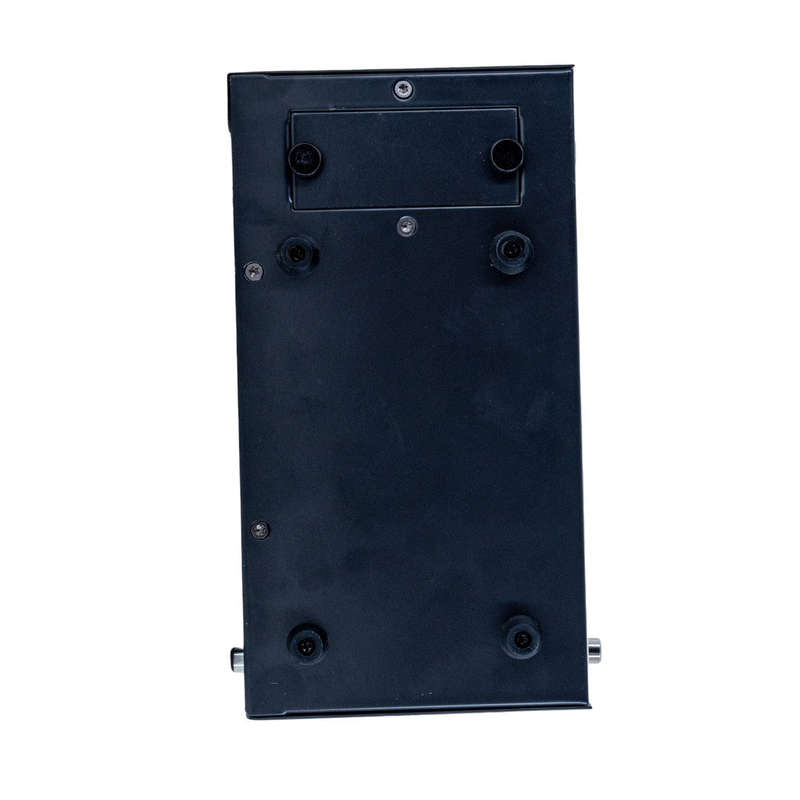

Durable, Compact Design: Encased in a rugged steel housing with a powder coating finish, the PowerWorks PW-CABLE-TESTER is built to withstand demanding environments. Its compact size allows for easy storage and portability, making it a convenient tool for technicians on the go.
9V Battery Power: The tester is powered by a 9V battery, which is easily replaceable through a slide-in compartment. This simple design ensures that you won't be left without power when you need it most.
Specifications:
- Type: Cable Tester
- Connector Compatibility: Speakon (4-pin, 8-pin), XLR (3-pin), 3.5mm and 6.35mm TS, TRS, RCA, DIN/MIDI, USB, RJ-45, S-Video
- Power: 9V Battery (replaceable via slide-in compartment)
- Test Modes: Manual and Automated
- Display: LED Indicators
- Housing: Steel with powder coating finish
