8 Mono Channels and 2 Stereo Channels: Accommodates a wide range of audio sources with flexibility, supporting complex setups and diverse applications.
High-Quality Microphone Inputs: Each mono channel features low-noise balanced inputs, ensuring pristine sound quality for vocals and instruments.
Phantom Power: +48V phantom power is provided on each microphone channel input, compatible with condenser microphones and other professional audio equipment.
Attenuation Switch: Each mono channel includes a 26dB attenuation switch, allowing precise control over input levels to prevent distortion and optimize signal quality.
EQ Control: Mono channels offer a 4-band EQ, while stereo channels provide a 3-band EQ, enabling detailed tonal shaping for each input source.
Mute Switch: Each channel has a mute switch for quick and easy signal management, allowing users to silence channels as needed.
Auxiliary Outputs: Features 2 sets of AUX outputs and 1 FX output, offering versatile routing options for external effects and monitor mixes.
AUX Send Control: Includes 2 groups of AUX send pre-self-locking press switches for precise control over auxiliary sends, enhancing sound shaping capabilities.
High-Analysis Faders: Equipped with 60mm stroke high-analysis faders for smooth and accurate level control, ensuring seamless transitions between audio sources.
Built-In DSP Effects: Includes 99 built-in DSP effects, adding depth and creativity to your mixes.
Digital Display MP3: Supports MP3 playback from USB drives and Bluetooth streaming, with additional recording capabilities for capturing performances.
Graphic Equalizer: Features a 7-segment stereo graphic equalizer for fine-tuning the overall sound output.
Level Display: Provides a high-precision three-color electric screen and dual 12-segment flow level display output for comprehensive visual feedback on signal levels.
Monitor Output: Includes LR channel monitor output for accurate monitoring during live performances or recording sessions.
Built-In Switching Power Supply: Operates efficiently across 110V-220V AC power supply, ensuring reliable performance in various environments.
Specifications:

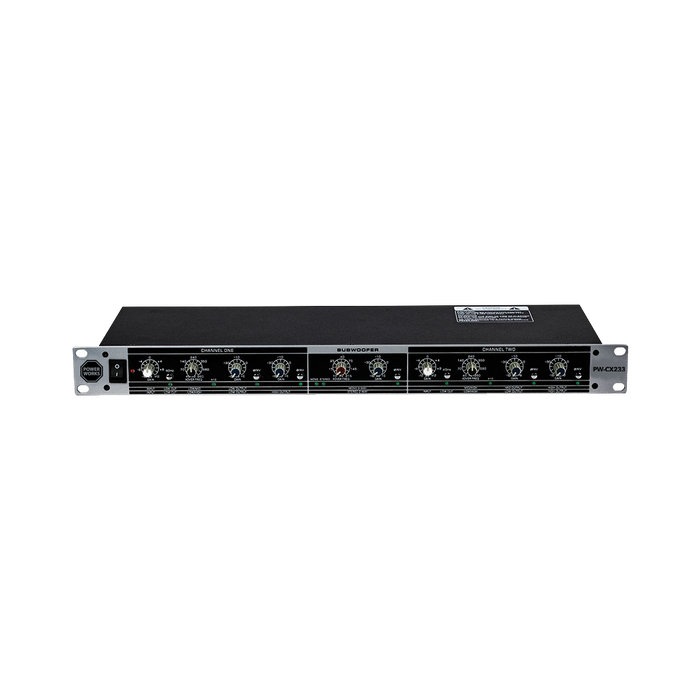

- Type: 2-Way Stereo/3-Way Mono Active Crossover
- Applications:
- 2-way stereo with mono subwoofer output
- 3-way mono with mono subwoofer output
- 2-Way Stereo Outputs:
- 2 x Low Outputs
- 2 x High Outputs
- 1 x Subwoofer Output
- 3-Way Mono Outputs:
- 1 x Low Output
- 1 x Mid Output
- 1 x High Output
- 1 x Subwoofer Output
- Crossover Frequency Bandwidth:
- Channel 1 and 2: 45Hz — 9600Hz
- Subwoofer: 10Hz — 215Hz
- Face Panel Controls:
- 2 x Input Gain
- 2 x Frequency Control
- 1 x Subwoofer Frequency Control
- 5 x Output Gain
- Output Phase Invert
- Input Low-cut at 40Hz
- Face Panel Indicators:
- Low-cut LED
- Phase Invert LED
- Mono/Stereo LED
- Frequency x10 LED
- Back Panel Controls:
- Mono/Stereo Switch
- Frequency x10 Switch
- Connectors: XLR Female Inputs, XLR Male Outputs
