Versatile Operation: Functions as a 3-way stereo or 4-way mono crossover, catering to a range of audio setups with distinct sub-bass, midrange, and high-frequency components.
Comprehensive Frequency Control: Offers a wide crossover frequency range, from 45Hz to 9600Hz for general use and from 450Hz to 9600Hz for specific applications. This broad bandwidth ensures optimal sound separation and clarity.

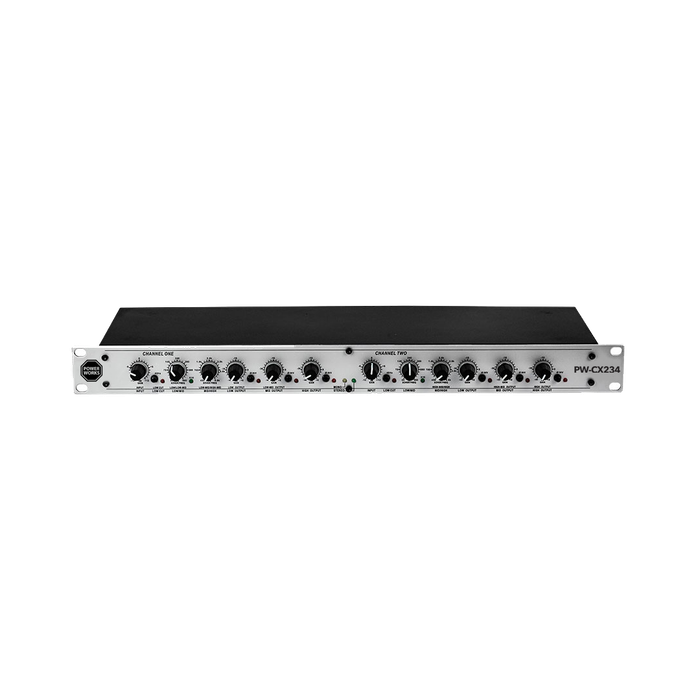

Intuitive Face Panel Controls: Equipped with controls for input gain, frequency adjustment, output gain, and phase inversion. The 2 x Input Gain controls, 4 x Frequency Control knobs, and 6 x Output Gain controls provide precise customization for your audio needs.
Phase Inversion and Low-Cut Filtering: Includes phase invert switches and a low-cut filter at 40Hz to fine-tune the sound and address phase issues, enhancing the overall audio quality.
Face Panel Indicators: Features LEDs for low-cut, phase invert, mono/stereo, and frequency x10 settings. These indicators offer real-time visual feedback, making it easier to monitor and adjust settings accurately.
Flexible Connectivity: Provides XLR female inputs and XLR male outputs, ensuring high-quality, reliable connections in both live and studio environments.
Back Panel Controls: Includes switches for mono/stereo mode selection, low-frequency summing, and frequency multiplication. These controls enhance the crossover's adaptability to different audio configurations.
High-Quality Construction: Built to withstand the demands of professional use, the PW-CX234 ensures robust performance and durability.
Specifications:
- Type: 3-Way Stereo/4-Way Mono Active Crossover
- Applications: 3-way stereo, 4-way mono
- 3-Way Stereo Outputs: 2 x Low Outputs, 2 x Mid Outputs, 2 x High Outputs
- 4-Way Mono Outputs: 1 x Low Output, 1 x Low-mid Output, 1 x High-mid Output, 1 x High Output
- Crossover Frequency Bandwidth: Channel 1 and 2, 45Hz — 9600Hz; Specific settings, 450Hz — 9600Hz
- Face Panel Controls: 2 x Input Gain, 4 x Frequency Control, 6 x Output Gain, Output Phase Invert, Input Low-cut at 40Hz
- Face Panel Indicators: Low-cut LED, Phase Invert LED, Mono/Stereo LED, Frequency x10 LED
- Back Panel Controls: Mono/Stereo Switch, LF Sum Switch, Frequency x10 Switch
- Connectors: XLR Female Inputs, XLR Male Outputs
