POWERWORKS X1604-BTU 12CH MIXER WITH BT & USB

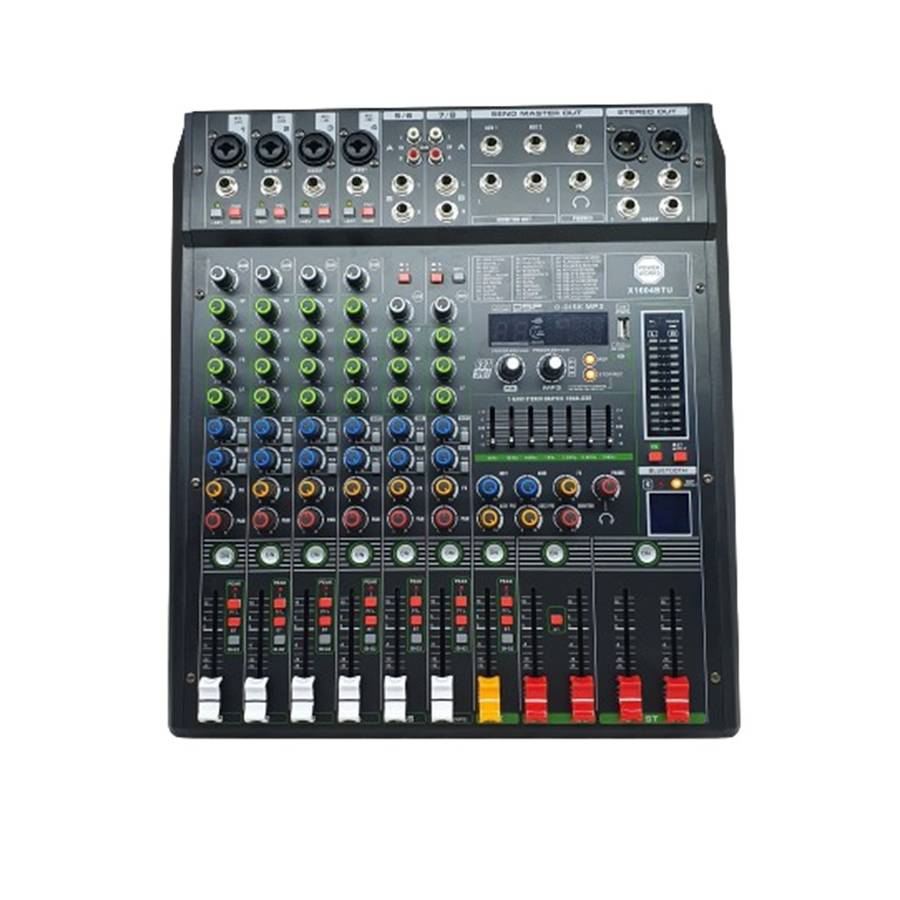

The PowerWorks X1604BTU USB 4 Mono and 2 Stereo Channel Mixer is a versatile 6-channel mixer offering 4 mono and 2 stereo channels. It features high-quality microphone inputs with +48V phantom power, precise EQ control, and 99 DSP effects. With Bluetooth connectivity, MP3 playback, and comprehensive monitoring options, this mixer is ideal for professional audio applications.

Channels and Inputs: The PowerWorks X1604BTU USB mixer comes with 4 mono channels and 2 sets of stereo channels, allowing for flexible mixing. Each mono channel features a high-quality, low-noise balanced microphone input with +48V phantom power, ensuring compatibility with a wide range of microphones. The attenuation switch on each mono channel provides 26dB of attenuation, helping to manage input levels and prevent distortion.

EQ Control: It includes a 4-band EQ for mono channels and a 3-band EQ for stereo channels, giving precise tonal control and customization for each audio source. The mixer also features a 7-segment stereo graphic equalizer for fine-tuning the overall sound.

Auxiliary and DSP Effects: The mixer provides 2 sets of AUX outputs and 1 FX output, offering versatile routing options for external effects and monitor mixes. It includes 99 built-in DSP effects to enhance audio with depth and creativity.

Playback and Connectivity: The PowerWorks X1604BTU supports MP3 playback from USB drives and features Bluetooth connectivity for wireless streaming. It also includes a digital display for easy navigation and recording capabilities.

Monitoring and Display: A high-precision three-color electric screen and dual 12-segment flow level displays offer detailed visual feedback on signal levels. The LR channel monitor output ensures accurate monitoring during live performances or recording sessions.

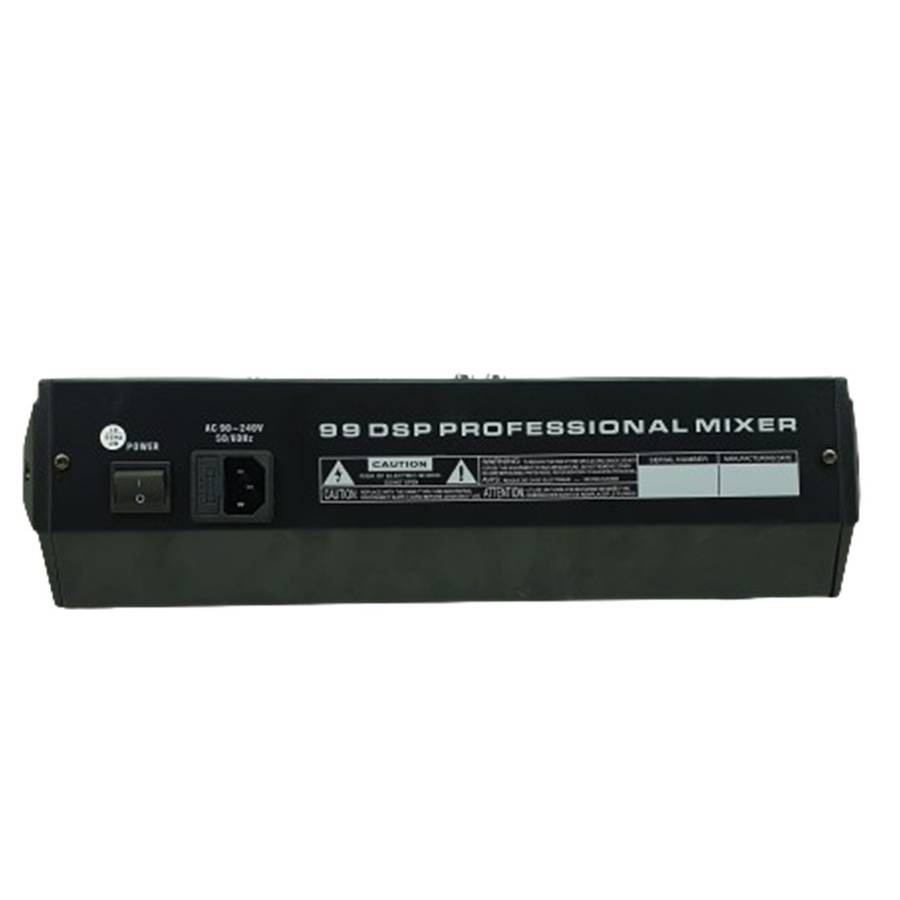

Power Supply: The built-in switching power supply accommodates 110V-220V AC power, making it adaptable for various environments.

• Channels: 4 Mono Channels, 2 Sets of Stereo Channels
• Microphone Inputs: Balanced, Low-Noise
• Phantom Power: +48V (Per Microphone Channel)
• Attenuation Switch: 26dB (Per Mono Channel)
• EQ:
  • Mono Channels: 4-Band EQ
  • Stereo Channels: 3-Band EQ
• Mute Switch: Yes (Each Channel)
• Auxiliary Outputs:
  • AUX: 2 Sets
  • FX: 1 Set
• AUX Send Control: 2 Groups, Pre-Self-Locking Press
• Faders: 60mm Stroke High Analysis
• DSP Effects: 99 Built-In Effects
• MP3 Playback: Built-In Digital Display MP3 (U-DISK MP3 Input), Bluetooth Playback
• Recording: One-Key Recording Function
• Graphic Equalizer: 7-Segment Stereo Graphic Equalizer
• Level Display: High-Precision Three-Color Electric Screen, Dual 12-Segment Flow Level Display Output
• Monitor Output: LR Channel MONITOR Output
• Power Supply: Built-In Switching Power Supply, Suitable for 110V-220V AC Power Supply
