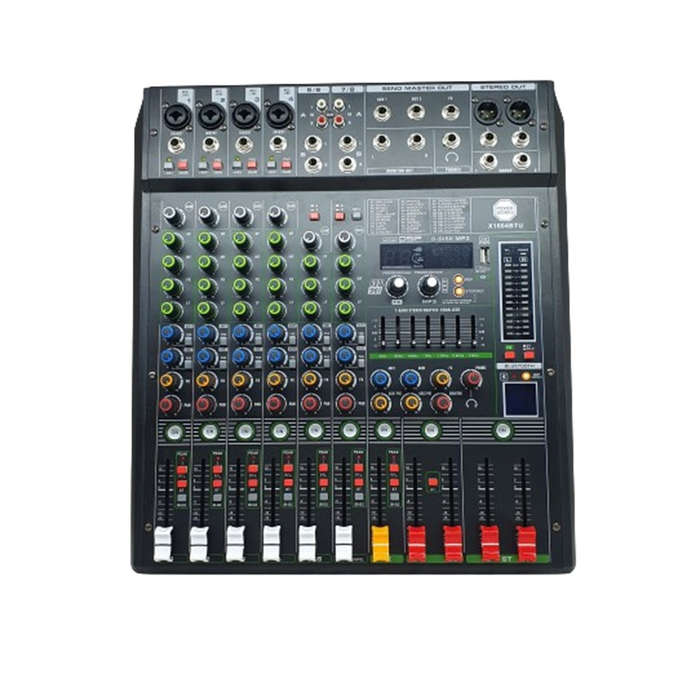

Channels and Inputs: The PowerWorks X1604BTU USB mixer comes with 4 mono channels and 2 sets of stereo channels, allowing for flexible mixing. Each mono channel features a high-quality, low-noise balanced microphone input with +48V phantom power, ensuring compatibility with a wide range of microphones. The attenuation switch on each mono channel provides 26dB of attenuation, helping to manage input levels and prevent distortion.
EQ Control: It includes a 4-band EQ for mono channels and a 3-band EQ for stereo channels, giving precise tonal control and customization for each audio source. The mixer also features a 7-segment stereo graphic equalizer for fine-tuning the overall sound.
Auxiliary and DSP Effects: The mixer provides 2 sets of AUX outputs and 1 FX output, offering versatile routing options for external effects and monitor mixes. It includes 99 built-in DSP effects to enhance audio with depth and creativity.
Playback and Connectivity: The PowerWorks X1604BTU supports MP3 playback from USB drives and features Bluetooth connectivity for wireless streaming. It also includes a digital display for easy navigation and recording capabilities.
Monitoring and Display: A high-precision three-color electric screen and dual 12-segment flow level displays offer detailed visual feedback on signal levels. The LR channel monitor output ensures accurate monitoring during live performances or recording sessions.
Power Supply: The built-in switching power supply accommodates 110V-220V AC power, making it adaptable for various environments.
Specifications:
- Channels: 4 Mono Channels, 2 Sets of Stereo Channels
- Microphone Inputs: Balanced, Low-Noise
- Phantom Power: +48V (Per Microphone Channel)
- Attenuation Switch: 26dB (Per Mono Channel)
- EQ:
- Mono Channels: 4-Band EQ
- Stereo Channels: 3-Band EQ
- Mute Switch: Yes (Each Channel)
- Auxiliary Outputs:
- AUX Send Control: 2 Groups, Pre-Self-Locking Press
- Faders: 60mm Stroke High Analysis
- DSP Effects: 99 Built-In Effects
- MP3 Playback: Built-In Digital Display MP3 (U-DISK MP3 Input), Bluetooth Playback
- Recording: One-Key Recording Function
- Graphic Equalizer: 7-Segment Stereo Graphic Equalizer
- Level Display: High-Precision Three-Color Electric Screen, Dual 12-Segment Flow Level Display Output
- Monitor Output: LR Channel MONITOR Output
- Power Supply: Built-In Switching Power Supply, Suitable for 110V-220V AC Power Supply
