The Sound Town ZETHUS-112BPW is a lightweight and compact line array speaker system. It comes with one 12" woofer and two 1.4" titanium compression drivers and delivers stellar sound quality. With the built-in Class-D power amplifier, it pumps out 400W continuous, 800W peak power. The onboard DSP provides great system optimization and EQ. The full-range speaker itself delivers a frequency range of 45 Hz to 20K. Up to 4 line array speakers can be stacked together and secured with safety pins. Altogether they deliver accurate and immersive sound performance at shaking volume.
The Sound Town ZETHUS-112BPW array speaker has multiple flying points and provides flexible mounting or suspension options with a separately available flying frame (ZETHUS-112FF). It's ideal for small to medium-sized venues including stages, lounges, clubs, bars, restaurants, churches schools etc.
Stelar Sound and Massive Power
A lightweight and compact line array speaker delivers robust sound quality with one 12" woofer and two 1.4" titanium compression drivers. A built-in powerful Class-D amplifier generates 400W continuous, 800W peak massive power.
Professional DSP
The ZETHUS-112BPW line array loudspeaker incorporates a built-in Class-D power amplifier with professional onboard digital signal processor (DSP), ensuring optimal system optimization. This advanced technology enhances the overall sound quality and ensures precise audio control.
Easy Integration and Flexible Mounting
Built-in rigging hardware, up to 4 line array speakers can be stacked together and secured with safety pins. The multiple flying points and additional flying frame ZETHUS-112FF (available separately) provide a variety of suspension options. Altogether they deliver accurate and immersive sound performance at shaking volume.
Sturdy Construction
Housed in a birch plywood enclosure, the line array speaker comes with a heavy-duty metal grille and rugged construction.
Versatile Applications
Ideal for small to medium-sized venues including stages, lounges, clubs, bars, restaurants, churches and schools etc.
General Specifications
- Model: ZETHUS-112BPW
- Frequency Range: 45 Hz — 20 kHz
- Frequency Response: 50 Hz — 20 kHz
- Sensitivity: 102 dB (Passive
- SPL Max: 130 dB
- Dispersion:120º x 15º (H x V)
- Configuration: 12" active full-range line array loudspeaker
- Transducer: LF: 1 x 12", HF: 2 x 1.4" diaphragm
- Impedance: 8 Nominal
- Power Handling: 400W RMS / 800W Peak
- Connectors: 2 x 4-pin speakon
- Cabinet Construction: High-grade 100% birch plywood
- Flying/Mounting Frame Model#: ZETHUS-112FF, integrated line array hardware
- Finish: Texture coating
- Grille & Rigging Component: Steel with an anti-corrosion coat

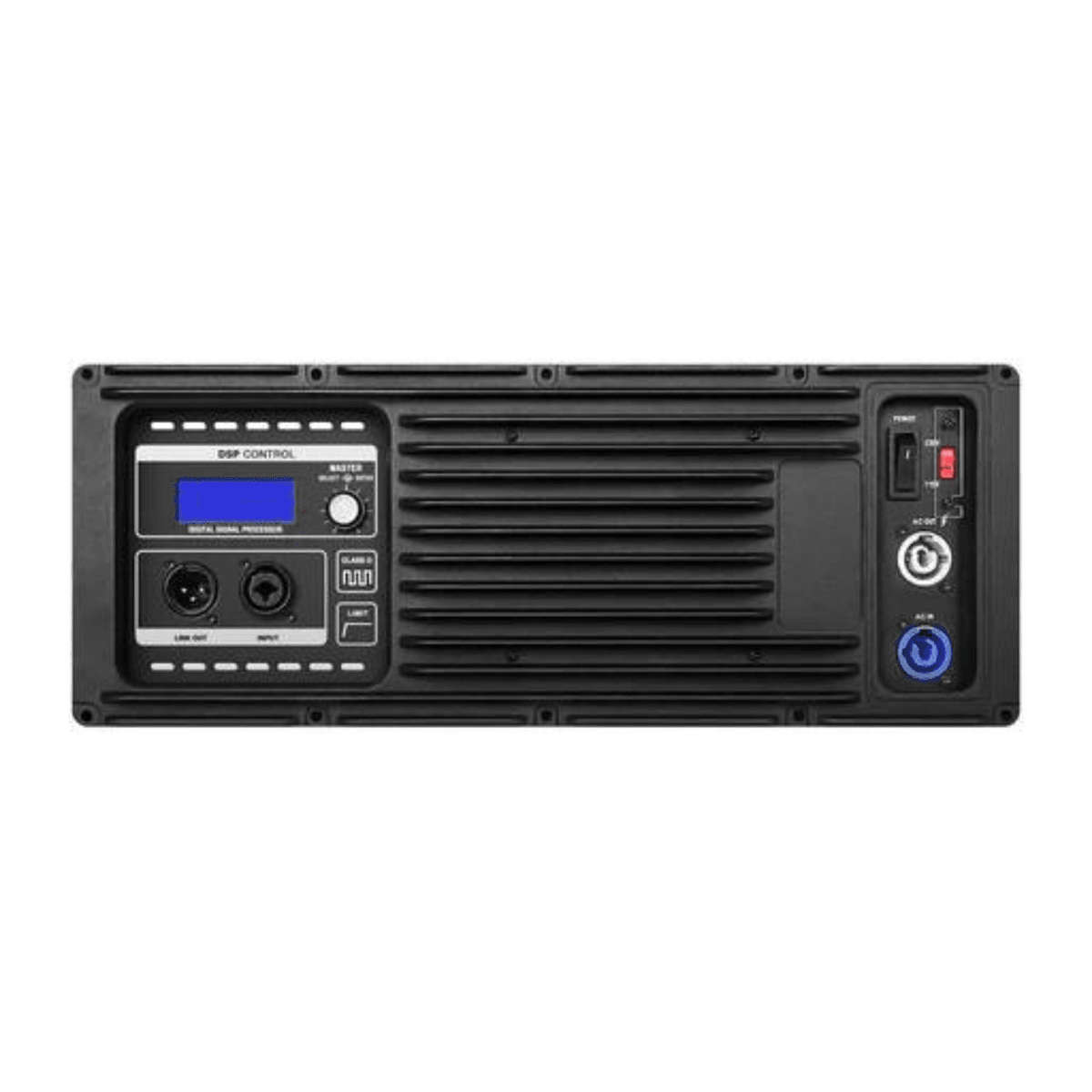

- Amplifier: Class-D Amplifier w/ DSP
- Input: XLR+1/4" combo
- Output: XLR line out
- Control: Volume, DSP Control
- Indicator: Power, limit
- Voltage: Neutrik PowerCON in & out 100V-240V (50-60 Hz)
- Plate Amp Parts#: STPA-760LA
- High-Frequency Driver Parts#: STHF-3403T
- Low-Frequency Woofer Parts#: STLF-12Z

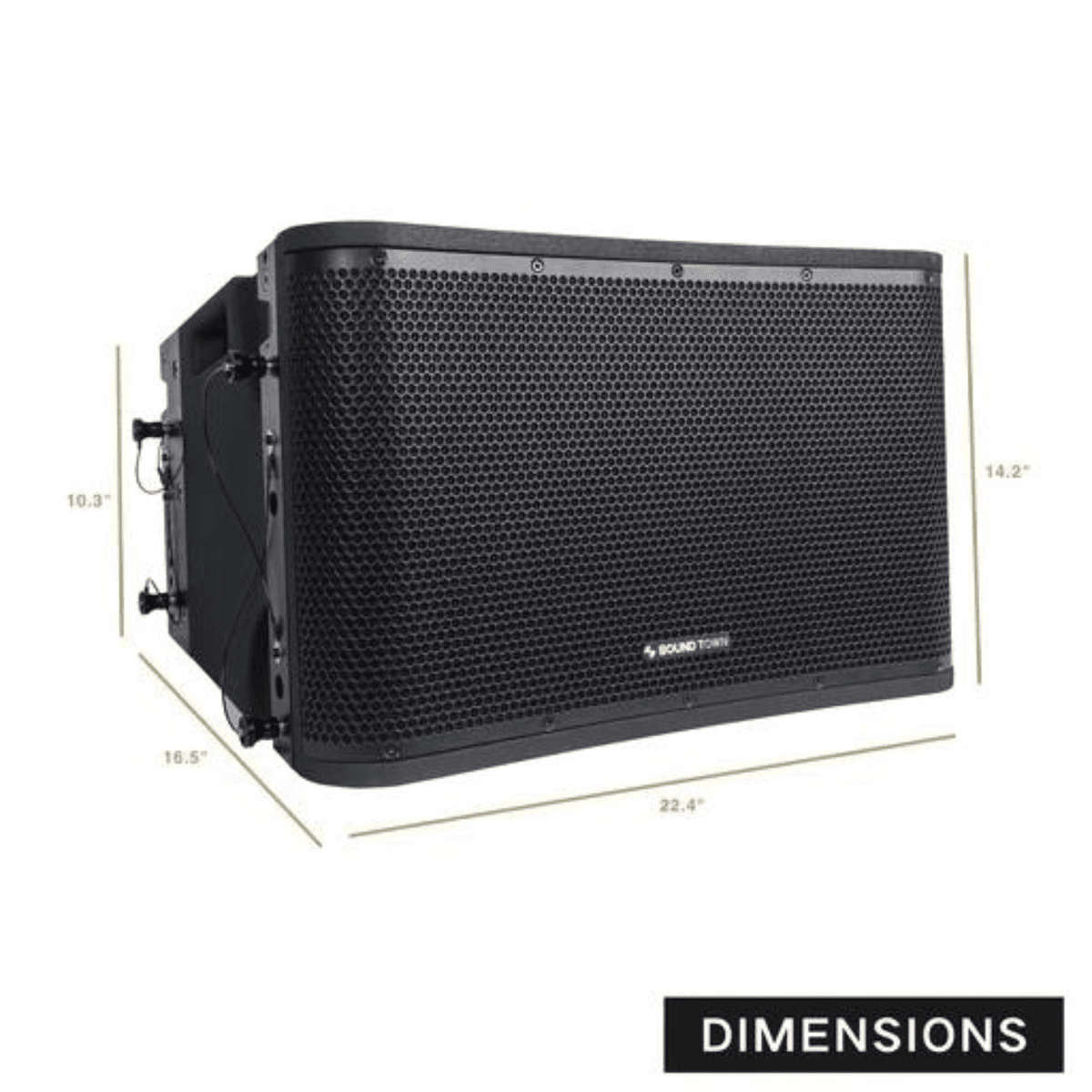

- Dimensions (WxDx): 22.4 x 14.2 x 16.5
- Weight: 56.2lbs
