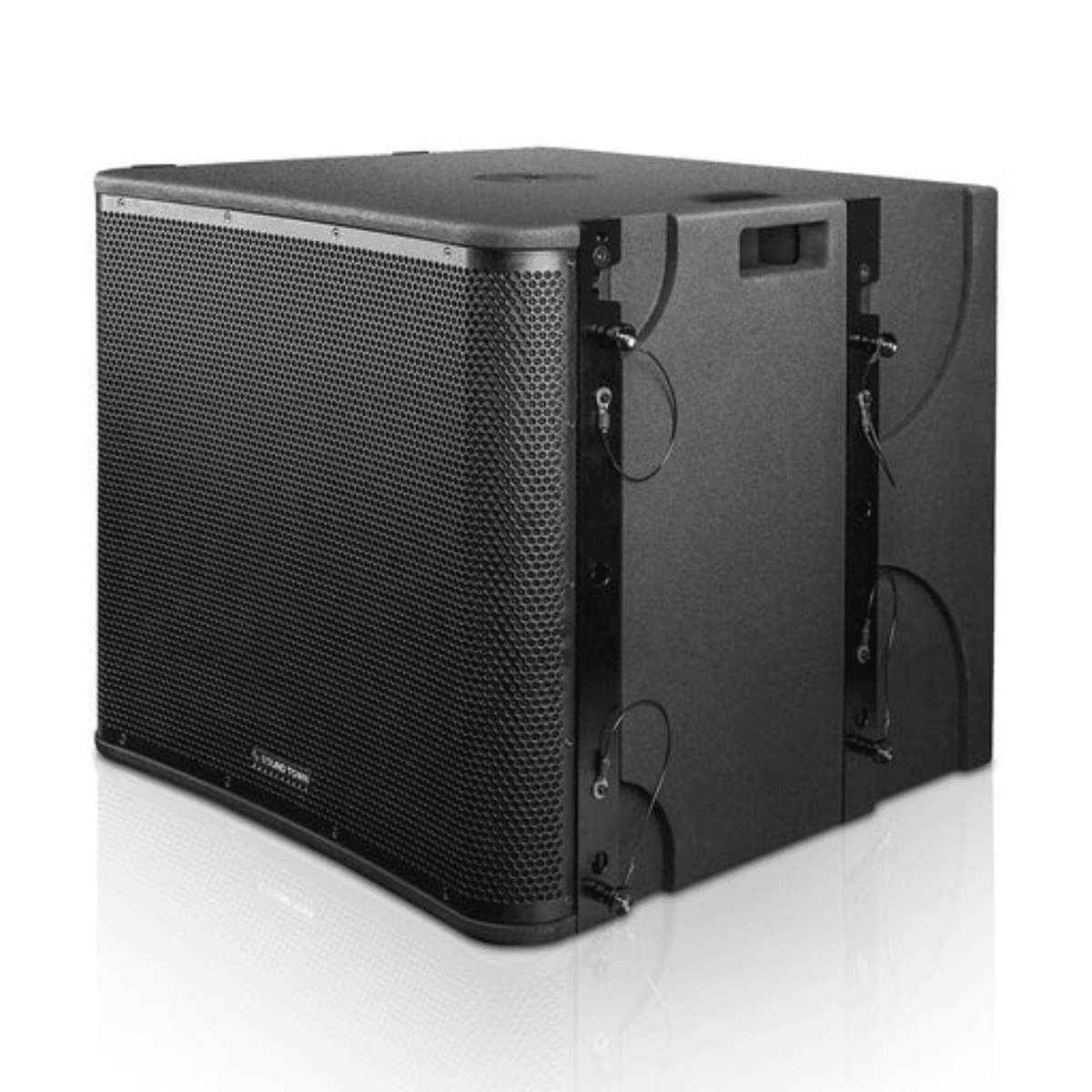

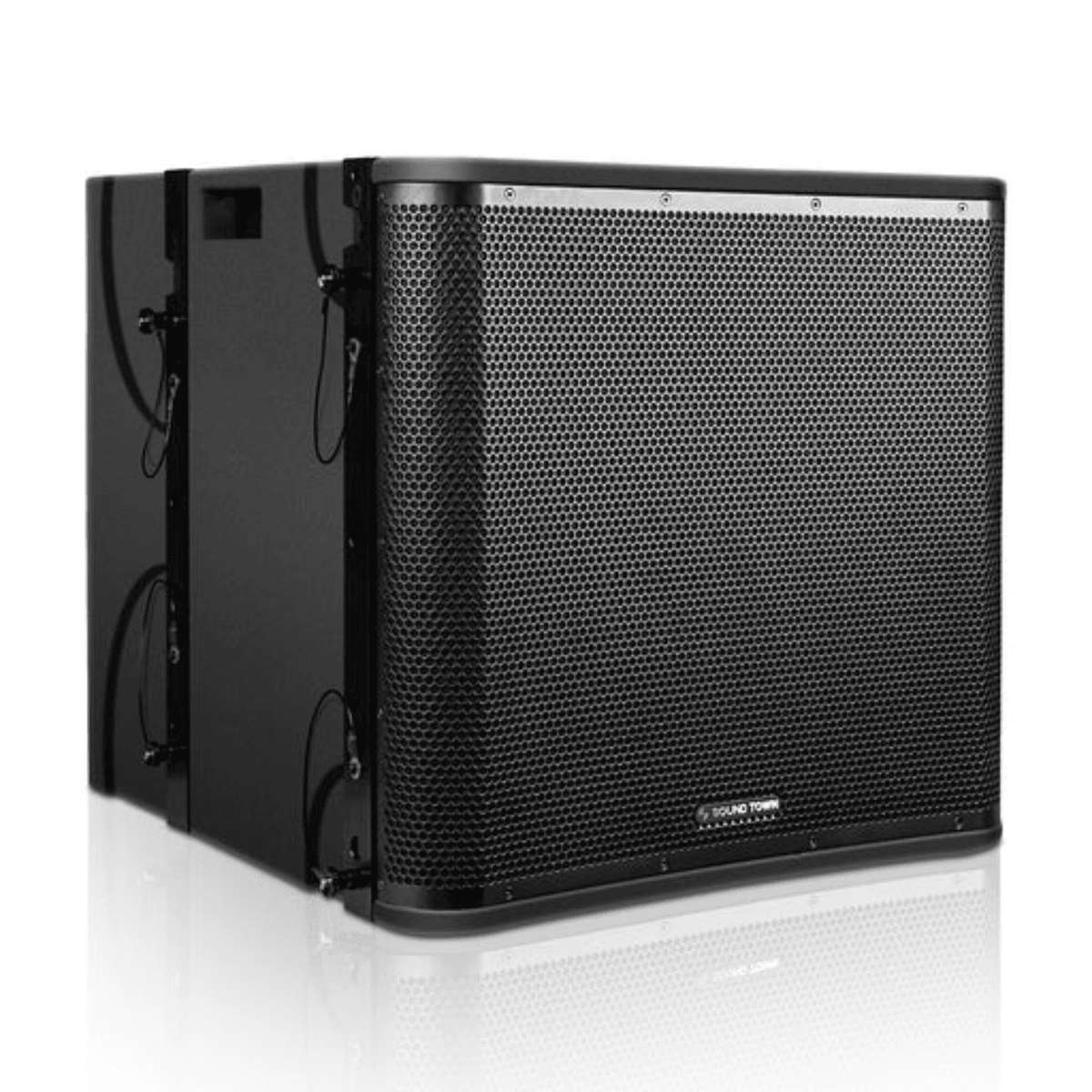

The ZETHUS Series ZETHUS-VX118SPW powered line array subwoofer boasts a powerful 18" woofer with a 4" voice coil (145 oz. magnet). Equipped with a built-in class-D amplifier, providing rich low-frequency reinforcement with an impressive 800W continuous and 1600W peak (8) power handling. Experience enhanced sound control with its built-in DSP featuring dynamic bass enhancement, a RMS dynamic processor, 4 digital EQ presets, and a 2nd-order IIR filter.
Constructed with high-quality plywood, the ZETHUS-VX118SPW subwoofer efficiently dampens vibrations, offering reliable protection and durability, making it perfect for mobile applications. With its rugged construction and heavy-duty perforated grille, the ZETHUS-VX118SPW subwoofer is built to withstand the rigours of the road.
Designed for seamless integration with the ZETHUS-112BPW line array speaker (available separately), this subwoofer creates a powerful PA line array system with exceptional sound quality and versatile configurations. Choose from multiple mounting options, including standing installation using the STSDA-M54B speaker pole (sold separately), suspension installations with the ZETHUS-112FF flying frame (sold separately), or direct stacking with its integral rigging hardware. For easy transportation, consider adding the optional ZSCB-VX18S caster board (sold separately). Its versatility makes it ideal for various venues such as clubs, bars, restaurants, churches, schools, equipment rentals, and touring applications.
Elevate your sound experience with the ZETHUS-VX118SPW powered line array subwoofer, a reliable and impressive performer for any event.
Powerful Low-Frequency Reinforcement
The ZETHUS-VX118SPW line array subwoofer features an 18" woofer with a 4" voice coil (145 oz. magnet). Equipped with a built-in class-D amplifier, delivering rich and solid low-frequency reinforcement with its 800W continuous, 1600W peak (8) power handling capability. Comes with a built-in DSP, dynamic bass enhancement, RMS dynamic processor, and 4 digital EQ presets for precise sound customization.
Sturdy and Mobile-Friendly
Crafted with high-quality plywood, the ZETHUS-VX118SPW effectively dampens unwanted vibrations, providing excellent protection and durability for mobile applications.
Seamless Integration
Designed to be used in a speaker array with the ZETHUS-112BPW line array speaker (sold separately), these components create a perfect PA system with exceptional sound quality and versatile configurations.
Flexible Mounting Options

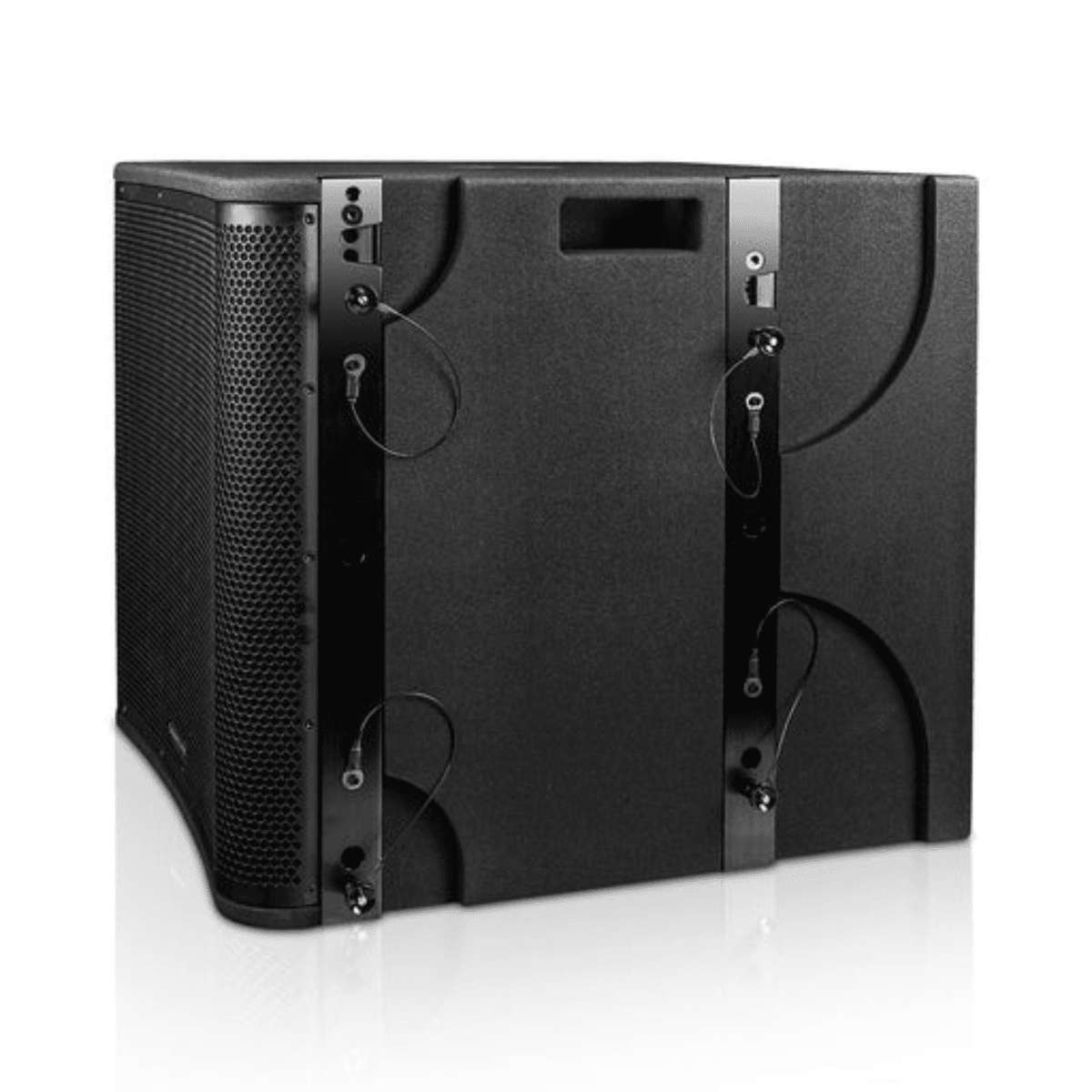

The ZETHUS-VX118SPW line array subwoofer comes equipped with multiple flying points and offers flexible mounting options, including standing installation using the STSDA-M54B speaker pole (sold separately), suspension installation with the ZETHUS-112FF flying frame (sold separately), or direct stacking with its integral rigging hardware. This versatility ensures seamless integration and adaptability for various sound reinforcement setups.
Rugged and Versatile

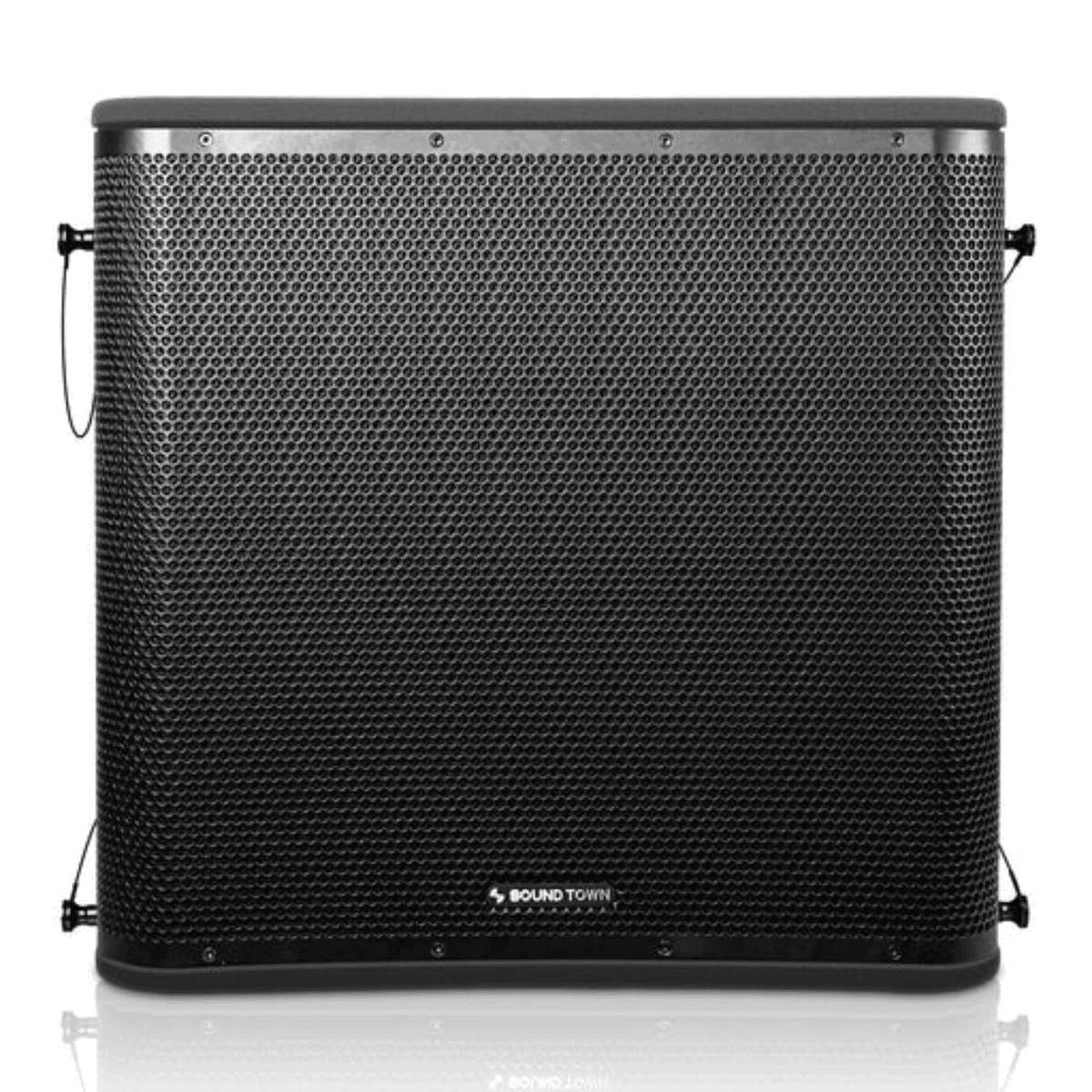

With its rugged construction and heavy-duty perforated grill, the ZETHUS-VX118SPW subwoofer is built to withstand the challenges of the road. For easy transportation, consider adding the optional ZSCB-VX18S caster board (sold separately). Ideal for clubs, bars, restaurants, churches, schools, equipment rentals, and touring applications.
General Specifications
- Model: ZETHUS-VX118SPW
- Active / Passive: Active
- Frequency Range: 27 Hz - 180 Hz
- Frequency Response: 32 Hz - 180 Hz
- Sensitivity: 102 dB
- SPL Max: 129 dB
- Dispersion: Omnidirectional
- Configuration: 18" active line array subwoofer
- Transducer: LF: 1 x 18" woofer
- Voice Coil: 4"
- Magnet: 145 oz
- Impedance: 8
- Power Handling: 800W Continuous / 1600W Peak
- Enclosure Material: High-grade 100% birch plywood
- Finish: Texture coating
- Grill & Rigging Component: Steel with an anti-corrosion coat

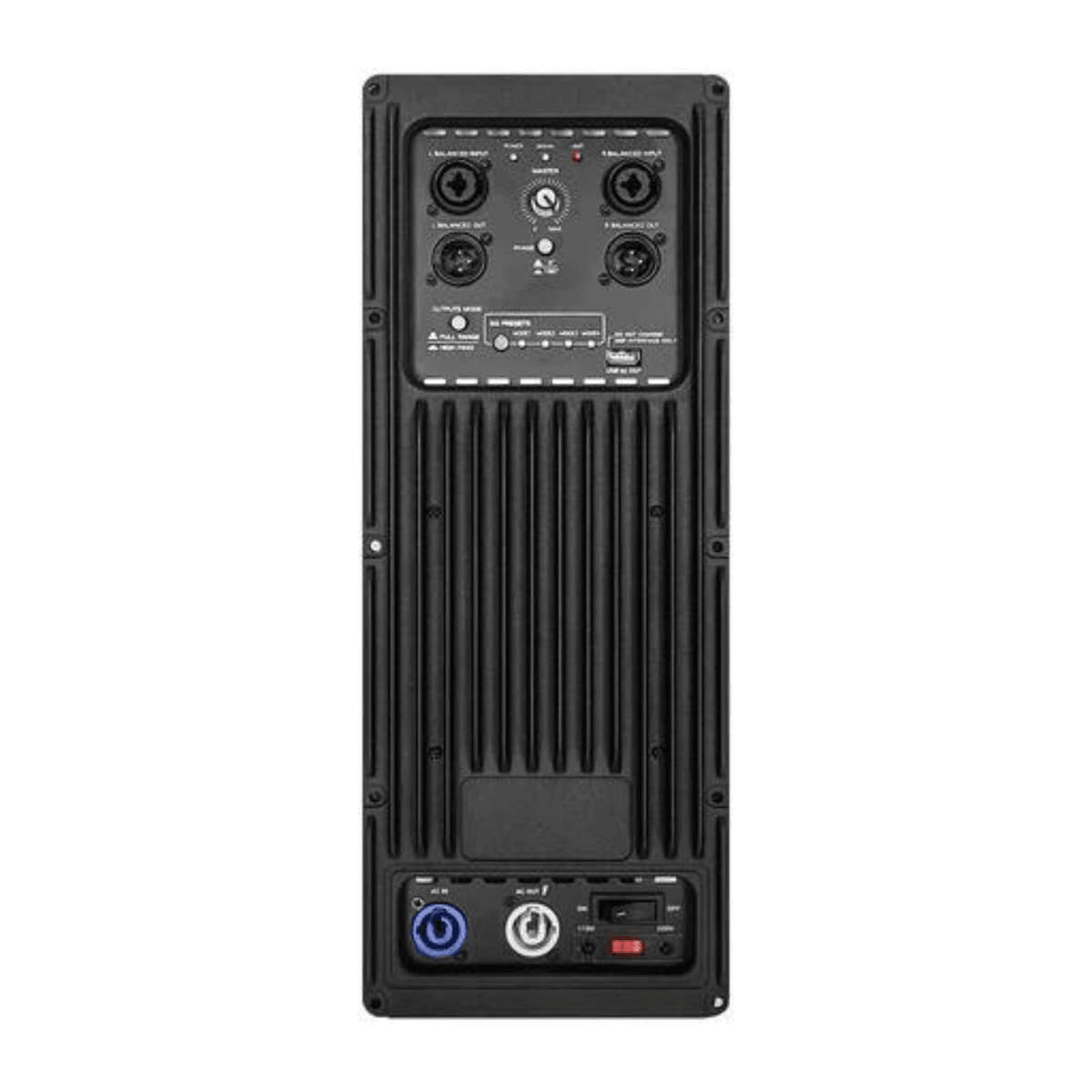

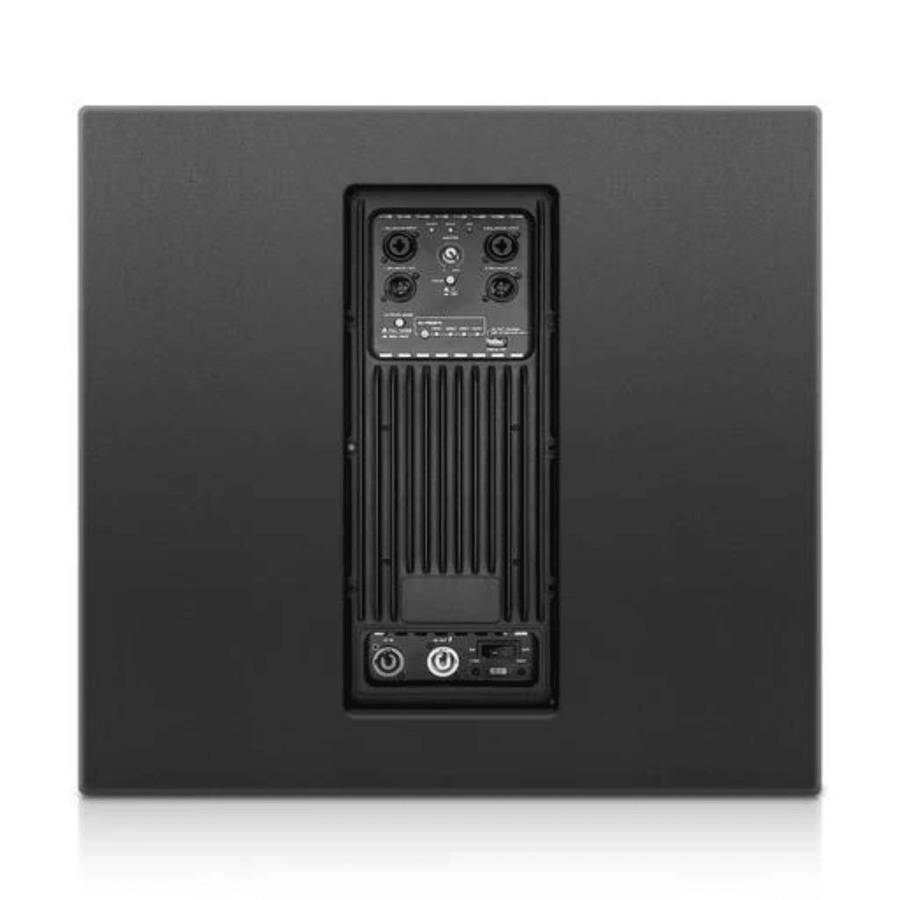

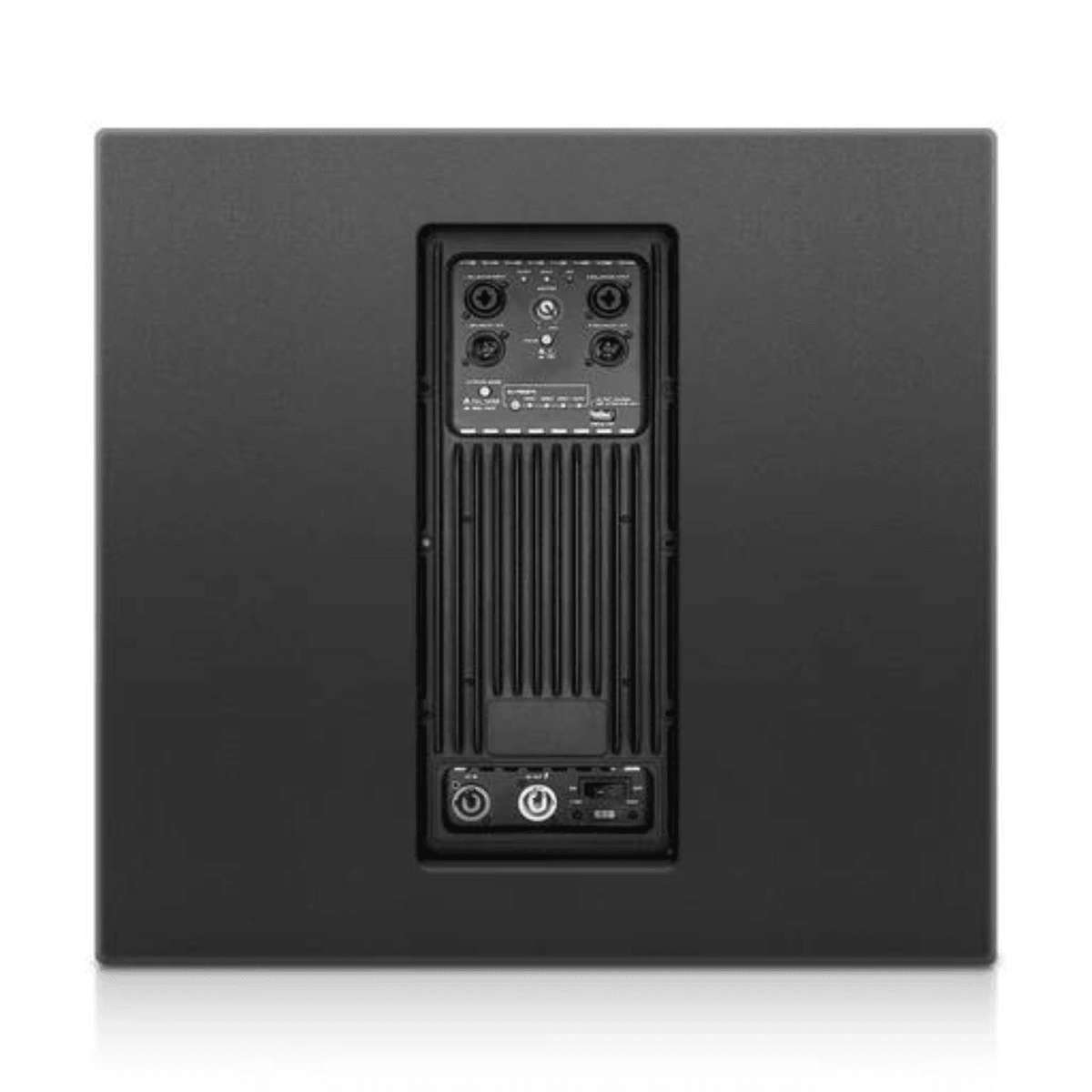

- Amplifier: Class-D Amplifier w/ DSP
- Input: 2 x 1/4"&XLR combo
- Output: 2 x XLR line out
- Signal: Processing Volume, polarity, switch, LPF
- Indicator: Power, signal, limit
- Voltage: 100V-240V (50-60 Hz)
- Plate Amp Parts#: STPAS-G2DSP
- Low-Frequency Woofer Parts#: STLF-18AS
- Caster Board Model#: ZSCB-VX18S
- Dimensions (WxDxH): 22.4" x 23.6" x 21.7"
- Weight: 112.4lbs
