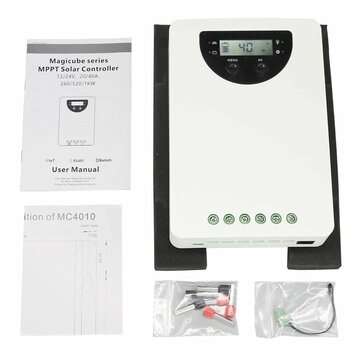

PowMr MPPT 20A 40A Solar Charger Controller 12/24V Intelligent Smart Solar Panel B... (CURRENT: 40A)

PowMr MPPT 20A 40A Solar Charger Controller 12/24V Intelligent Smart Solar Panel B... (CURRENT: 40A)

20 available / new
R2,305.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643387803

SELECTED OPTION:
CURRENT: 40A

Specifications:


ItemMC2010MC4010
System Voltage12V/24V Auto
Max Charging Current20A40A
MPPT Charging Voltagebefore boost or equal charging stage
Boost Voltage@2514.0~14.8V/28.0~29.6V @25(default:14.5/29V)
Equal Voltage@2514.0~15.0V/28.0~30.0V @25(default:14.8/29.6V)(Liquid, AGM)
Float Voltage@2513.0~14.5V/26.0~29.0V @25(default:13.7/27.4V)
Low Voltage Disconnect10.8~11.8V/21.6~23.6V(default:11.2/22.4V)
Reconnect Voltage11.4~12.8V/22.8~25.6V(default:12.0/24.0V)
Overcharge Protect15.8V/31.3V
Charging target voltage10.0~32.0V(Lithium, default: 14.4V)
Charging recover voltage9.2~31.8V(Lithium, default: 14.0V)
Low voltage disconnect9.0~30.0V(Lithium, default: 10.6V)
Low voltage reconnect9.6~31.0V(Lithium, default: 12.0V)
Battery TypeLiquid, GEL, AGM, Lithium(default: GEL)
Max Voltage on PV(20)100V
Max Voltage on PV (25)90V
Max Input Power260W/520W520W/1040W
Dusk/Dawn detect voltage8.0V/16.0V
MPPT Tracking Range(Battery Voltage+1V) ~ Voc*0.9 *2
Output Current20A30A
