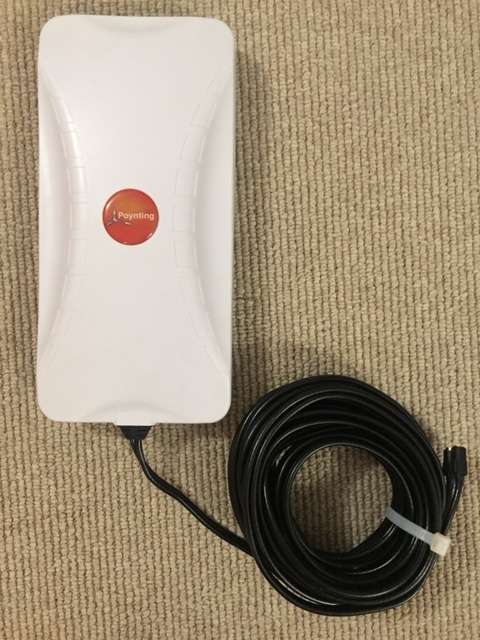

Poynting A-XPOL-0006 LTE Antenna with 10M Cable

The XPOL-6-10M is a wall or pole mountable, dual polarised 1710 MHz to 2700 MHz antenna that is used in LTE deployments. The antenna is designed and built to incorporate two separately fed elements in a single antenna housing and it is equipped to provide multiple inputs and multiple outputs on the client side. This dual polarised LTE antenna offers diversity support and is ideal for current and future technologies. As with other Poynting antennas, the dual polarised high gain LTE antenna is water resistant. It is the ideal solution to provide cost effective signal enhancement, a more stable link for users and higher throughputs. Please have a look at the attached product data and available downloadable documentation for more information on this product.

Features

• Wideband - covers wide freqeuncy band
• Wall or pole mountable
• Lightweight
• Two antennas in one enclosure

Application areas

• Urban and rural areas
• Poor data signal reception (indoor or outdoor)
• Slow data transmission connection
• Unstable connection
• Increase system transmission reliability
• LTE fringe areas (close to an LTE area, but just out of reach)
• Network operator flexibility - as the antennas is wideband, a new antenna is not needed per network operator - works on most networks

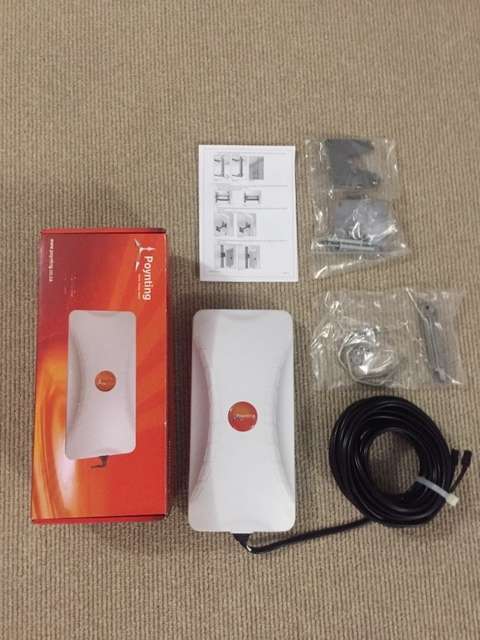

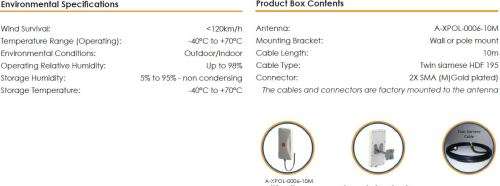

Package Contents

• Antenna: A-XPOL-0006-10M

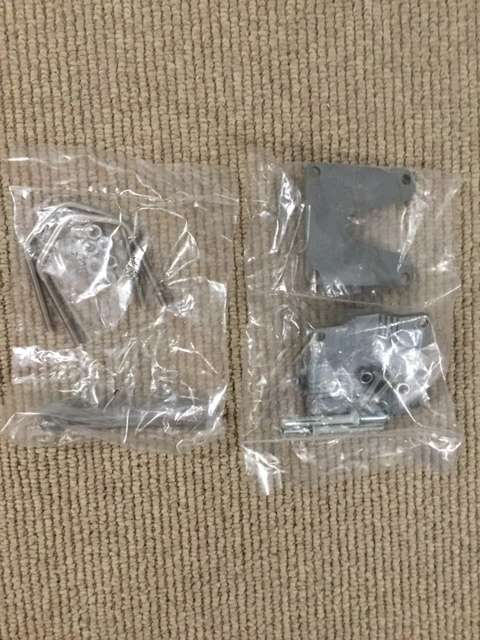

• Mounting Bracket: Wall or pole mount
• Cable Length: 10m
• Cable Type: Twin siamese HDF 195
• Connector: 2X SMA (M)Gold plated)

The cables and connectors are factory mounted to the antenna

• Product Dimensions (L x W x D): 300 mm x 145 mm x 57 mm
• Packaged Dimensions: 360 mm x 160 mm x 115 mm
• Weight: 1,35 kg
• Packaged Weight: 1,60 kg
