PRODUCT DESCRIPTION

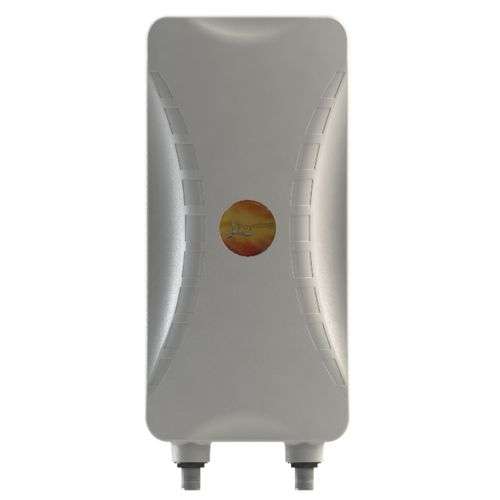

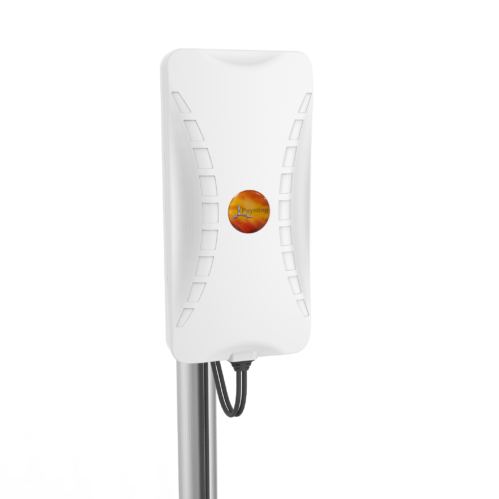

Dual Polarised High Gain LTE Antenna The XPOL-6-10M is a wall or pole mountable, dual polarised 1710MHz to 2700 MHz antenna that is used in LTE deployments.

The antenna is designed and built to incorporate two separately fed elements in a single antenna housing and it is equipped to provide multiple inputs and multiple outputs on the client side.

This dual polarised LTE antenna offers diversity support and is ideal for current and future technologies.As with other Poynting antennas, the dual polarised high gain LTE antenna is water resistant. It is the ideal solution to provide cost effective signal enhancement, a more stable link for users and higher throughputs.



Please have a look at the attached product data and available downloadable documentation for more information on this product.



Features

Wideband - covers wide freqeuncy band

Wall or pole mountable Lightweight Two antennas in one enclosure



Application areas

Urban and rural areas Poor data signal reception (indoor or outdoor) Slow data transmission connection Unstable connection Increase system transmission reliability LTE fringe areas (close to an LTE area, but just out of reach) Network operator flexibility - as the antennas is wideband, a new antenna is not needed per network operator - works on most networks

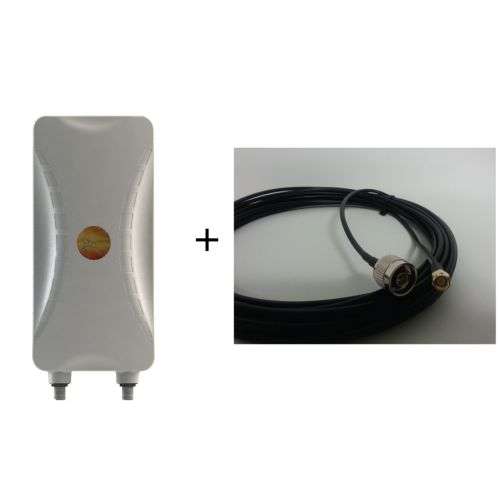

Package Contents

Antenna: A-XPOL-0006-10M

Mounting Bracket: Wall or pole mount

Cable Length: 10m

Cable Type: Twin siamese HDF 195

Connector: 2X SMA (M)Gold plated) The cables and connectors are factory mounted to the antenna



Product Dimensions (L x W x D): 300 mm x 145 mm x 57 mm



Packaged Dimensions: 360 mm x 160 mm x 115 mm Weight: 1,35 kg Packaged Weight: 1,60 kg
