Contains:

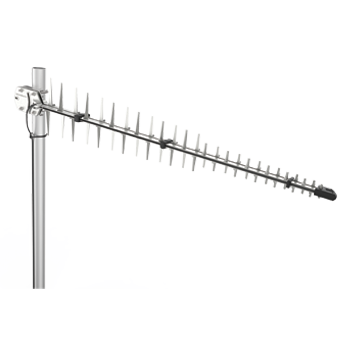

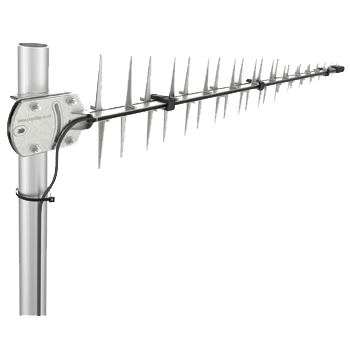

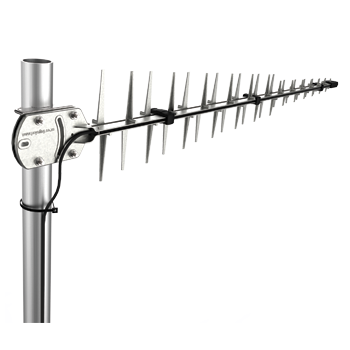

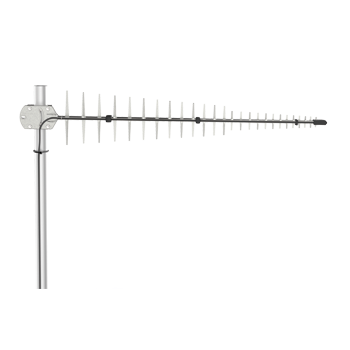

Elevate your connectivity with the LPDA-92 Antenna with Bracket-30, an advanced, high-gain directional antenna designed to enhance your wireless communication in even the most challenging environments. Covering a wide frequency range from 698 MHz to 3800 MHz, this antenna is the ideal solution for boosting 4G LTE, 5G, and Wi-Fi signals across various networks, ensuring reliable and fast data transmission.

Key Features:

- Wideband Performance: Supports a broad spectrum of frequencies, making it compatible with 2G, 3G, 4G, and future 5G technologies.

- High Gain: With a peak gain of 11 dBi, the LPDA-92 delivers exceptional signal strength, particularly in areas with weak signal coverage.

- Durability: Built to withstand extreme weather conditions, the antenna is water and dust resistant (IP65) and can operate in temperatures ranging from -40°C to +80°C.

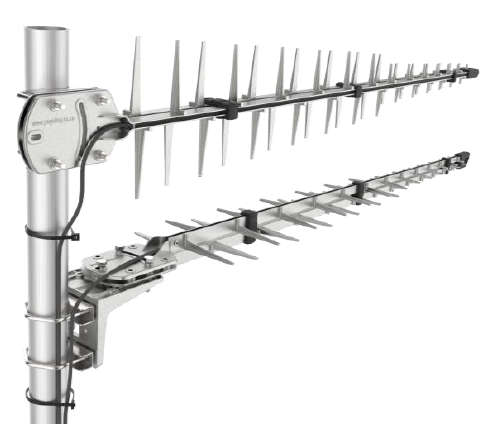

- Versatile Mounting Options: The included Bracket-30 allows for flexible mounting, supporting both vertical and horizontal pole installations.

- Rugged Design: Features a robust construction with impact resistance (IK 08) and salt spray protection (MIL-STD 810G/ASTM B117), making it perfect for harsh outdoor environments.

Whether you're in a remote rural area or an urban setting with signal challenges, the LPDA-92 with Bracket-30 is your go-to solution for improving network reliability and speed. Perfect for residential, commercial, and industrial applications, this antenna ensures you stay connected when it matters most.

Specifications:

- Frequency Bands: 698 960 MHz, 1427 1517 MHz, 1710 2700 MHz, 3400 3800 MHz

- Gain: Up to 11 dBi

- VSWR: <1.5:1 across 95% of the bands

- Mounting: Pole mountable with Bracket-30 for vertical and horizontal setups

- Environmental Protection: IP65 rated, withstands wind speeds up to 160 km/h

- Dimensions: 1112 x 200 x 47 mm (antenna), 127 x 100 x 97 mm (bracket)

Boost your wireless communication effortlessly with the LPDA-92 Antenna and Bracket-30. Engineered for performance, built for durability.
