Excellent for urban areas.
Works great for routers with 4 external antenna ports.
Can also accommodate 2 separate routers (2x2 MIMO routers - with 2 external antenna ports).

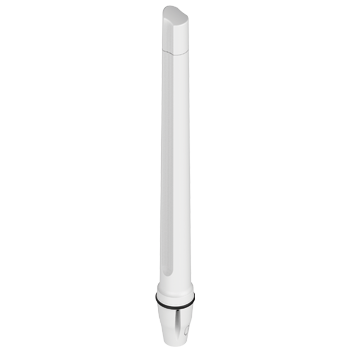

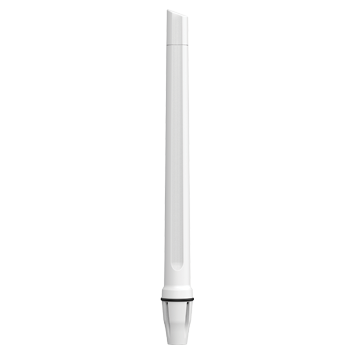

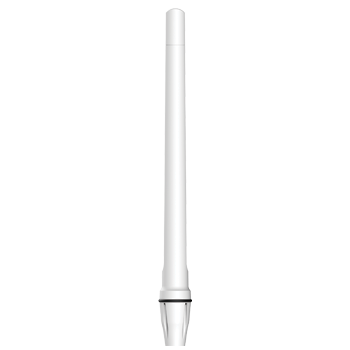

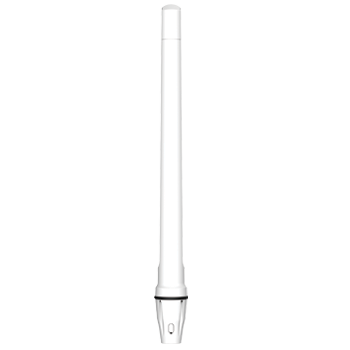

The OMNI-414 is an ultra-wideband antenna designed to meet the rigorous demands of marine and coastal applications. This omni-directional antenna covers all contemporary LTE and 5G frequency bands, providing excellent balanced gain across a wide range from 617 to 3800 MHz. With 4x4 MIMO capability and superior pattern control, the OMNI-414 ensures robust and reliable connectivity in even the harshest maritime environments.
Key Features:
- Wide Frequency Range: Operates from 617 to 3800 MHz, offering excellent performance across all relevant bands.
- Peak Gain: 4 dBi, ensuring strong and reliable signal reception.
- 4x4 MIMO Capability: Enhances data throughput and signal reliability with vertically separated radiating elements.
- Omni-Directional: Delivers consistent signal strength in all directions.
- Durable Marine-Grade Design: Built to withstand extreme temperatures (-40C to +80C), IP68 rated for protection against dust and water ingress, and fully saltwater protected with UV stable ASA radome material.
- Flexible Mounting: Supports marine mount, pole mount, and wall mount options for versatile deployment.
Technical Specifications:
- Frequency Bands:
- 617-960 MHz
- 1427-2700 MHz
- 3400-3800 MHz
- 617-698 MHz
- Gain: 4 dBi
- Polarization: Linear
- MIMO Configuration: 4x4 MIMO
- Mounting Type: Marine Mount, Pole Mount, Wall Mount
- Connectors: SMA
- Environmental Rating: IP68, Marine Grade, Salt Spray Protected
Applications:
The OMNI-414 is suitable for a wide range of industries and applications, including:
- Commercial & Industrial: Ensures reliable connectivity for business operations.
- Farming & Agricultural: Enhances communication and data transfer in rural areas.
- Marine & Coastal: Provides robust connectivity in harsh maritime environments.
Technology Compatibility:
- Cellular: Supports LTE (2G, 3G, 4G) and LTE/5G.
- Bluetooth: Compatible with Bluetooth technologies.
- IoT Networks: Helium, LoRa, Sigfox compatible.
The OMNI-414 is a high-performance antenna designed to support current and future communication technologies. Its wide frequency range, 4x4 MIMO capability, and marine-grade durability make it an excellent choice for enhancing connectivity in maritime and coastal environments. Whether for commercial, industrial, or marine use, the OMNI-414 delivers reliable performance and future-proof connectivity.
