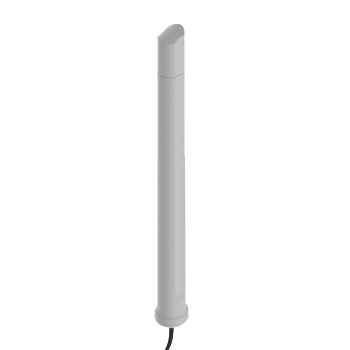

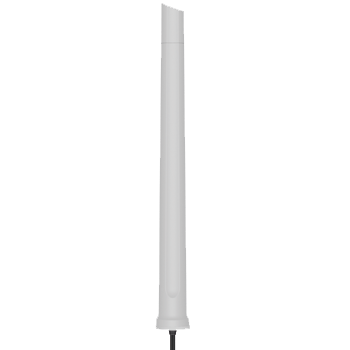

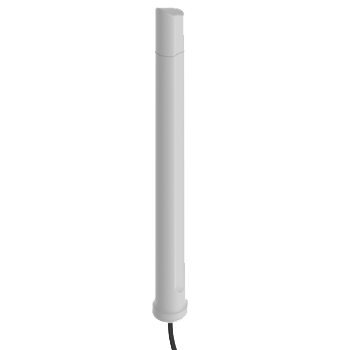

Poynting OMNI-600 OMNI-DIRECTIONAL, 2X2 MIMO LTE ANTENNA

What's in the box

- 1x OMNI-600 antenna
- 5M HDF 195 factory fitted twin-cable (2 cables) with SMA Male connectors

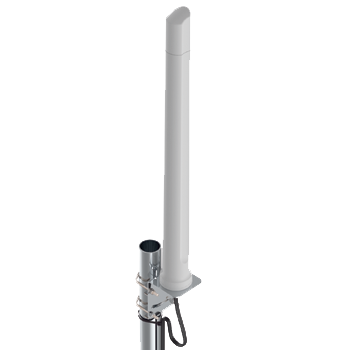

- Mounting Brackets

PRODUCT DETAILS

The OMNI-600 is a unique new design with improved 22 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range, making the OMNI-600 a true high performance omni-directional antenna. The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries.

Additional information

Industry (Application)

Commercial & Industrial, Farming & Agricultural, IoT, M2M & Smart Meters, Mining & Industrial Tunneling, Urban & Rural Cellular

Technology

Bluetooth, CDMA450, Cellular (LTE/2G/3G/4G), Helium/LoRa/Sigfox

Frequency Band

1427-1517MHz, 410-450MHz, 433MHz, 450-470MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 3400-3800MHz

Frequency Range

410 3800 MHz

Product Configuration

2 x LTE

Gain

6.2dBi

Directionality

Omni-Directional

Mounting Type

Pole Mount, Wall Mount

Connectors

SMA Male

MIMO

2x2

Polarisation

Linear Polarised

Environmental

IP65 rated
