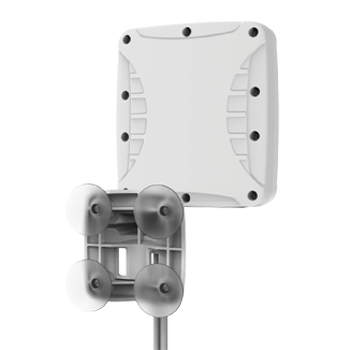

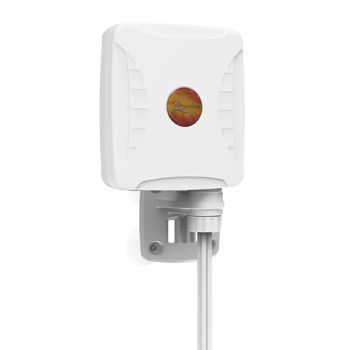

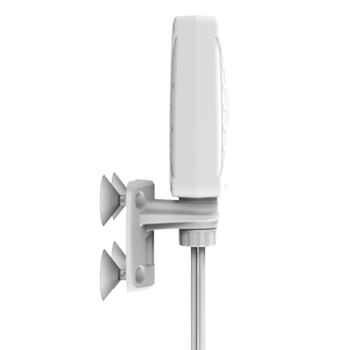

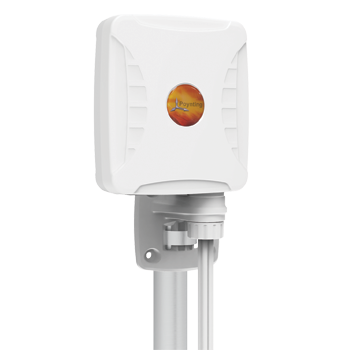

The XPOL-1-5G is Poynting's second-generation "V2" cross-polarized (XPOL) cellular band antenna, featuring 2x2 LTE MIMO capability. It is designed for optimal performance in 2G, 3G, 4G, and 5G networks. With a redesigned enclosure and antenna design, this antenna covers a wide frequency range from 617 MHz to 3800 MHz, making it suitable for various applications including commercial, industrial, agricultural, IoT, mining, and urban and rural cellular connectivity.
Features:
- Frequency Range: 617 - 3800 MHz
- Gain: 3.5 dBi (617-960 MHz; 1710-2700 MHz; 3400-3800 MHz), peak gain of 4 dBi across bands
- Directionality: Omni-directional
- Technology: Cellular (LTE/2G/3G/4G/5G)
- Product Configuration: 2x LTE
- Mounting Type: Pole Mount, Wall Mount, Window Mount
- Connectors: SMA
- MIMO: 2x2
- Polarization: X-Polarised
- Environmental Rating: IP65 (Weather, dust, and vandal resistant)
Applications:
- Commercial & Industrial
- Farming & Agricultural
- IoT, M2M & Smart Meters
- Mining & Industrial Tunneling
- Urban & Rural Cellular Connectivity
Package Includes:
- XPOL-1-5G Antenna
- Mounting Kit
- Factory fitted 5M twin-cable with SMA Male Connectors
Certifications: CE, RoHS
