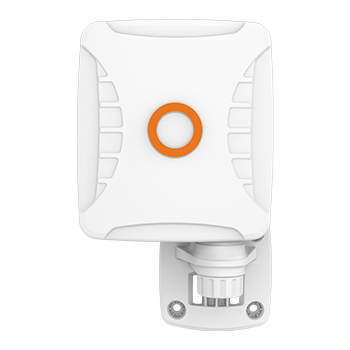

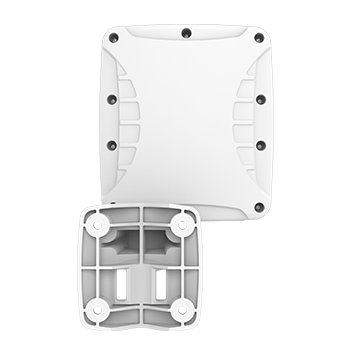

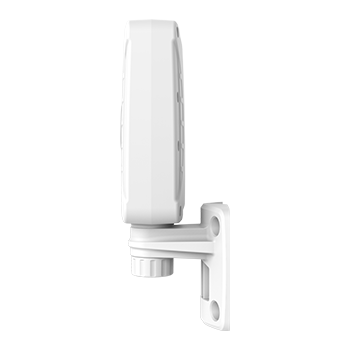

Poynting XPOL-1-5G Plus (2×2 MIMO) Omni-Directional Antenna

Poynting XPOL-1-5G Plus (2×2 MIMO) Omni-Directional Antenna

The Poynting XPOL-1-5G Plus is an outdoor omni-directional antenna designed to improve LTE and 5G connectivity for routers, modems, and hotspots. It supports a wide frequency range from 410 MHz to 6000 MHz, covering 2G, 3G, 4G, and 5G networks, ensuring compatibility with current and future cellular bands.

Key Features

• Frequency range: 410 6000 MHz

• Gain: up to 6 dBi

• MIMO: 2×2 (cross-polarised elements for better signal stability)

• Omni-directional radiation pattern for all-direction signal reception

• Weatherproof (IP65) housing for outdoor use

• Supplied with two 5 m HDF-195 coaxial cables (SMA-male connectors)

• Compatible with most LTE/5G routers (Teltonika, Huawei, MikroTik, etc.)

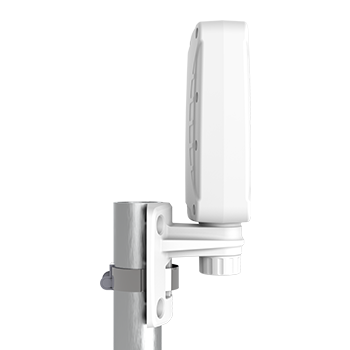

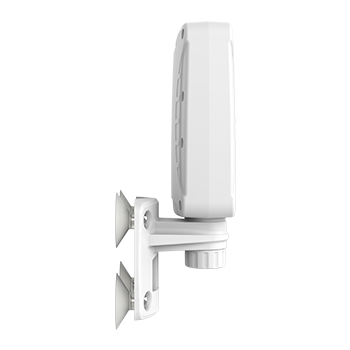

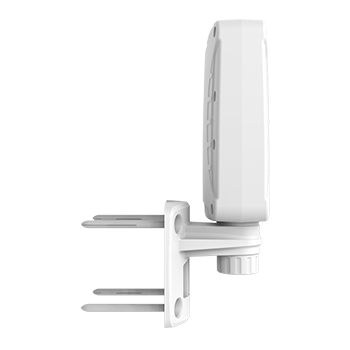

• Pole or wall-mount installation options. Window mountable.

Performance and Use
The XPOL-1-5G Plus delivers consistent performance in areas with weak or variable signals. Its omni-directional design eliminates the need for precise alignment, making it ideal for installations where the network tower direction is unknown or where multiple towers are in range. The antenna supports 2×2 MIMO operation, allowing dual data streams for improved speed and reliability.

It provides stable connectivity in:

• Residential and commercial buildings

• Rural or semi-urban areas

• Backup connectivity setups

• Fixed wireless access (FWA) systems

• IoT and M2M installations

Construction and Design
The units rugged IP65-rated enclosure resists rain, dust, and UV exposure. It can be mounted on walls or poles using the supplied bracket. Twin low-loss cables ensure minimal signal degradation between the antenna and router.

Compatibility
Works with routers that have two external antenna ports for LTE or 5G connectivity. Compatible with SMA, TS9, or U.fl connectors (with optional adapters). Ideal for Teltonika RUT series and Huawei 5G routers.

Benefits

• Improved signal quality and throughput

• Increased stability on LTE and 5G connections

• Wide frequency coverage for network flexibility

• Simple, durable, and maintenance-free installation

Technical Summary

• Frequency range: 410 6000 MHz

• Max gain: 6 dBi

• Polarisation: ±45° (cross-polarised)

• Input impedance: 50

• Connector: 2× SMA (Male)

• Cable: 2× 5 m HDF-195

• VSWR: 2.5 : 1

• Environmental rating: IP65

• Dimensions: 180 × 150 × 75 mm

• Weight: 0.9 kg

Applications

• LTE/5G routers and modems

• Remote monitoring and IoT systems

• Commercial or residential fixed wireless setups

• Signal enhancement for mobile broadband

In the Box

• XPOL-1-5G Plus antenna (2×2 MIMO)

• 2× 5 m HDF-195 cables with SMA-male connectors

• Mounting bracket and hardware

• Installation guide

Why Choose the XPOL-1-5G Plus
This antenna offers wideband performance, reliable MIMO capability, and durable design suited for South African and African environments. Its an effective solution for improving data speed and network reliability where internal router antennas cannot maintain consistent signal strength.

Available through Inteto Connect, the African distributor for Poynting antennas. Local technical support and installation assistance are available.
