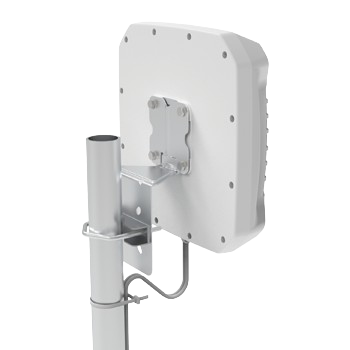

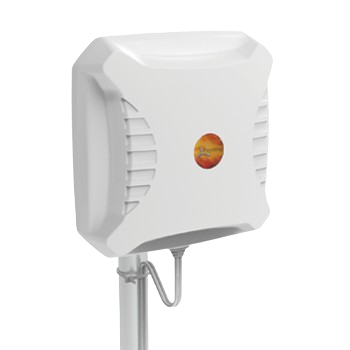

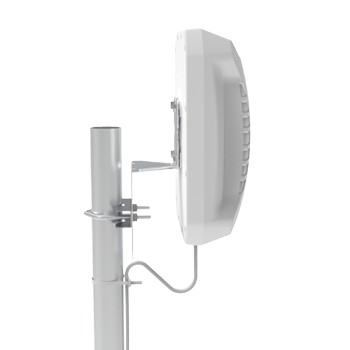

Poynting XPOL-2-5G 11dBi Cross-POLARISED HIGH GAIN UNI-DIRECTIONAL 5G and LTE ANTENNA

PRODUCT DETAILSThe XPOL-2-5G is Poynting's third generation "V3" of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation "V2" but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.The XPOL-2-5G antenna includes the newer 3400 4200 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 960 MHz, 1710 2170 MHz, 2300 2700 MHz & 3400 4200 MHz in addition to the new bands, the gain in the 1700 MHz and 2.7 GHz is around 3 dB higher than the "V2" over the same frequency bands! Our "V2" antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet it may look the same, but just wait until you turn the ignition on!Additional informationIndustry (Application)Commercial & Industrial, Farming & Agricultural, Urban & RuralTechnologyCellular (5G/LTE/2G/3G/4G), Cellular (LTE/5G)Frequency Band3400-4200MHz, 617-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHzFrequency Range617 4200 MHzProduct Configuration 2 x LTEGain11dBiDirectionalityUni-DirectionalMounting TypePole Mount, Wall MountConnectorsN-Type, SMAMIMO2×2PolarisationX-PolarisedEnvironmentalIP65
