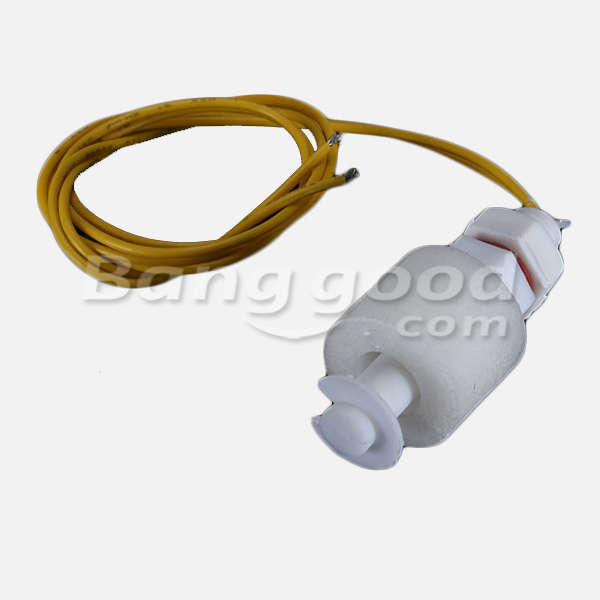

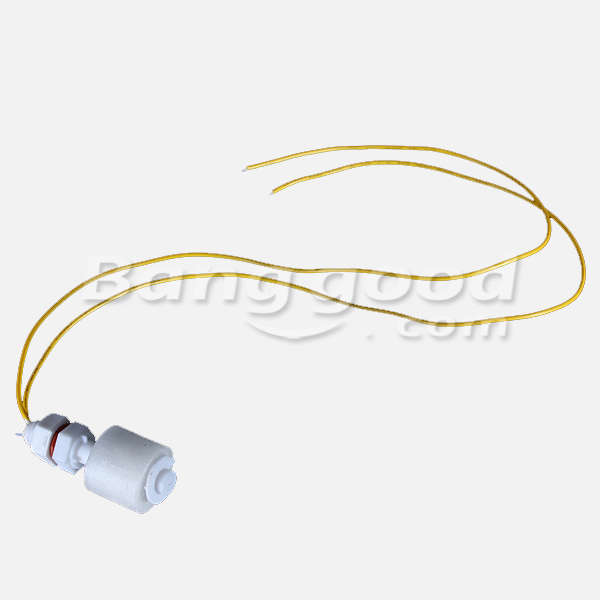

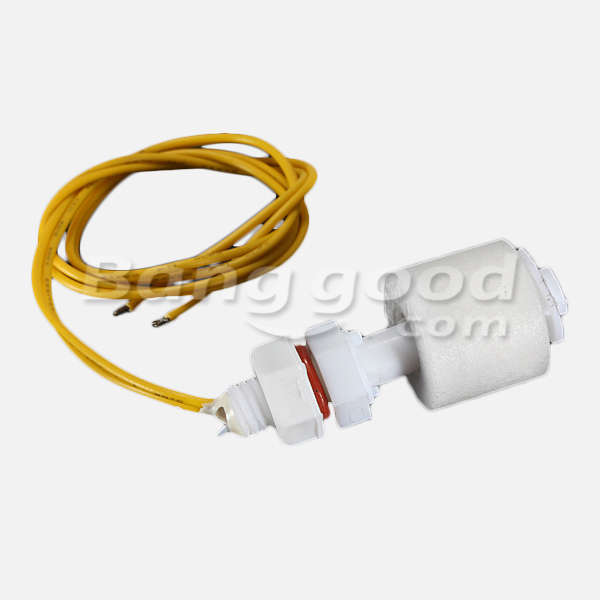

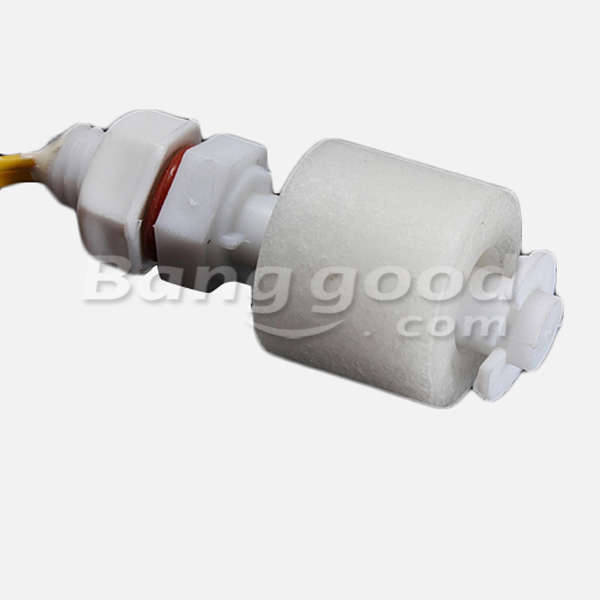

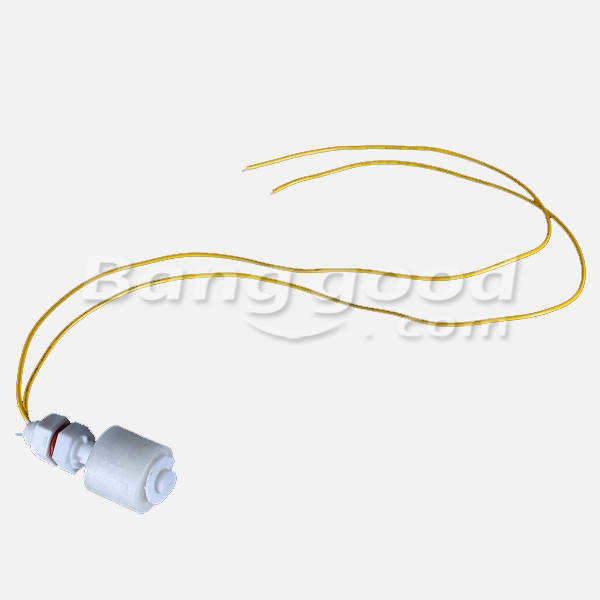

PP Liquid Water Level Sensor Horizontal Float Switch Down White

Introduction :

A compact vertically mounted float switch which can be mounted at either the top or bottom of a tank (by the supplied 'O' ring and nut) to either rise and fall for actuation (by an internal magnet) of a sealed reed relay.
The sensor is supplied pre-wired with flying output leads.
Float switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other device.

Description :

Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, or what ever your project may be
Contain no mercury
Down float switch

Specification :

Cable Length: 36cm
Maximum Load: 50 W
Max Switching Voltage: 100V DC
Minimum Voltage: 250V DC
Maximum Switching Current: 0.5 A
Max Load Current: 1.0 A
Max Contact Resistance: 0.4 Ω
Temp Rating: -20~+80¿¿¿
Net Weight: 12g
Material: PP

Package included :

1 x Liquid Float Switch
