Pre-wired Electronics for 3 Single Coil Strat Style Guitar With Mini Size Pots

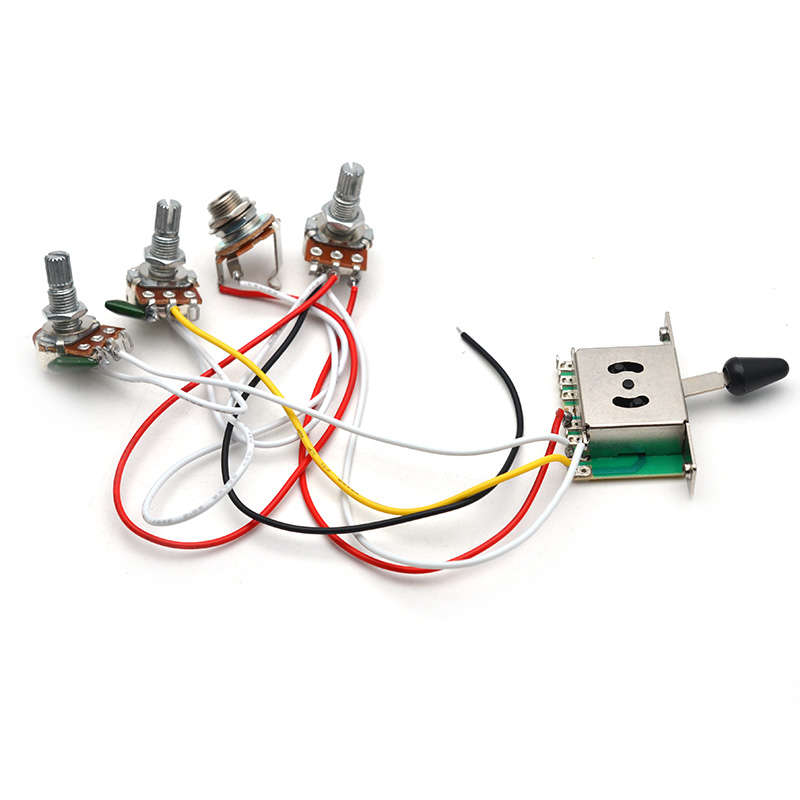

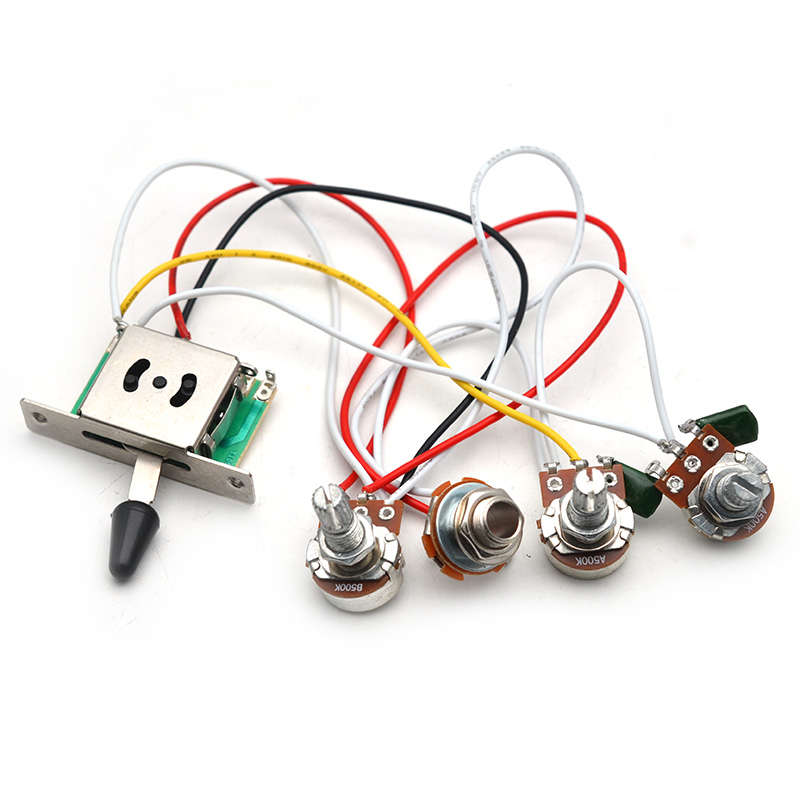

Complete wiring harness for 3 single coil pickup guitars. Mini size pots and box style selector switch with output jack included.

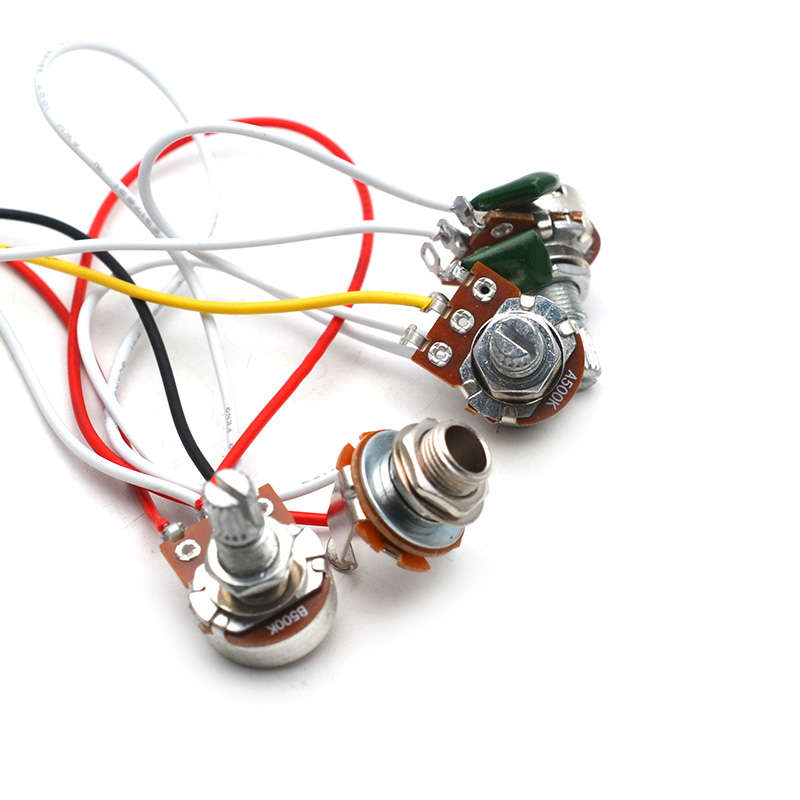

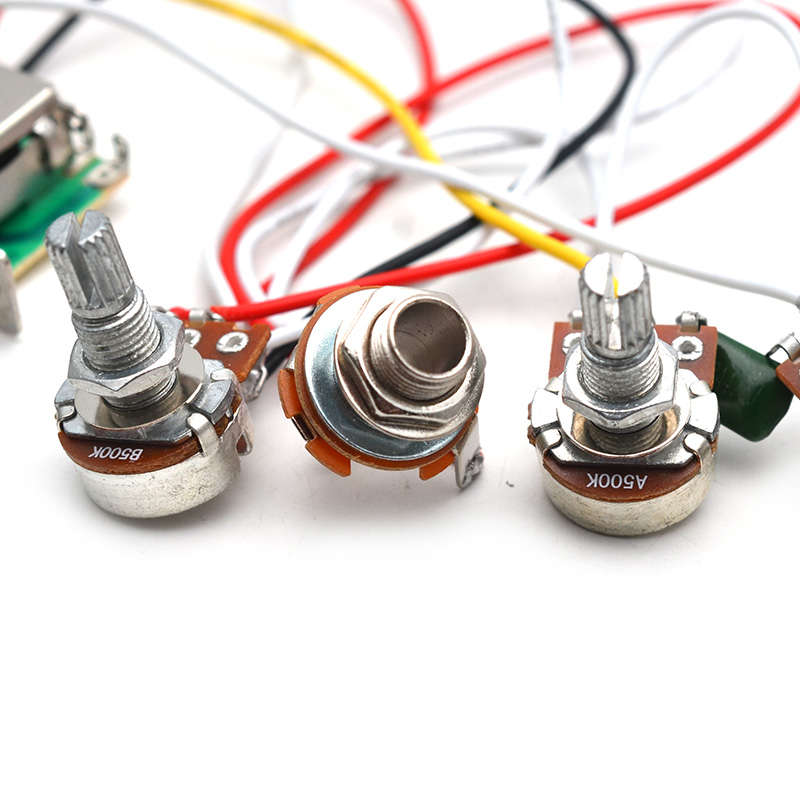

B500k Volume Pot

A500k Tone Pots with 0.047uf Capacitor (Neck and Middle on Tone 1 and Bridge on Tone 2)

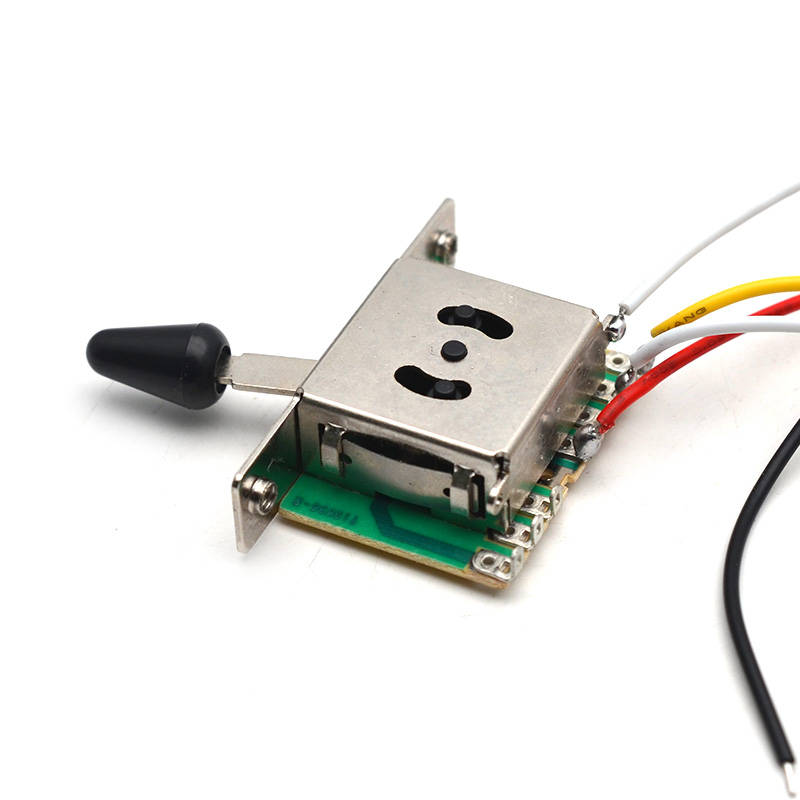

5 Way Lever Switch (Black tip standard) White or Ivory tip if mentioned in the order notes.

Depending on type of guitar, the output jack may need to be de-soldered and then re-soldered once wires are fed through the body. One ground wire to be soldered to your bridge claw for grounding.

All the necessary screws, nuts and washers for pots and switch.

You need to solder your pickup hot wires to the switch and ground to the volume pot.
