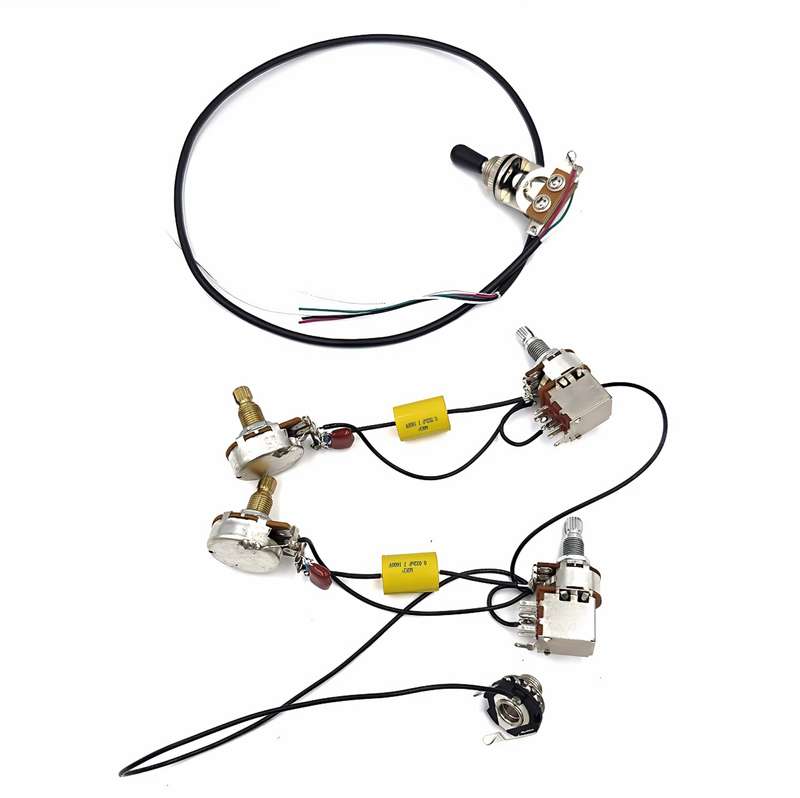

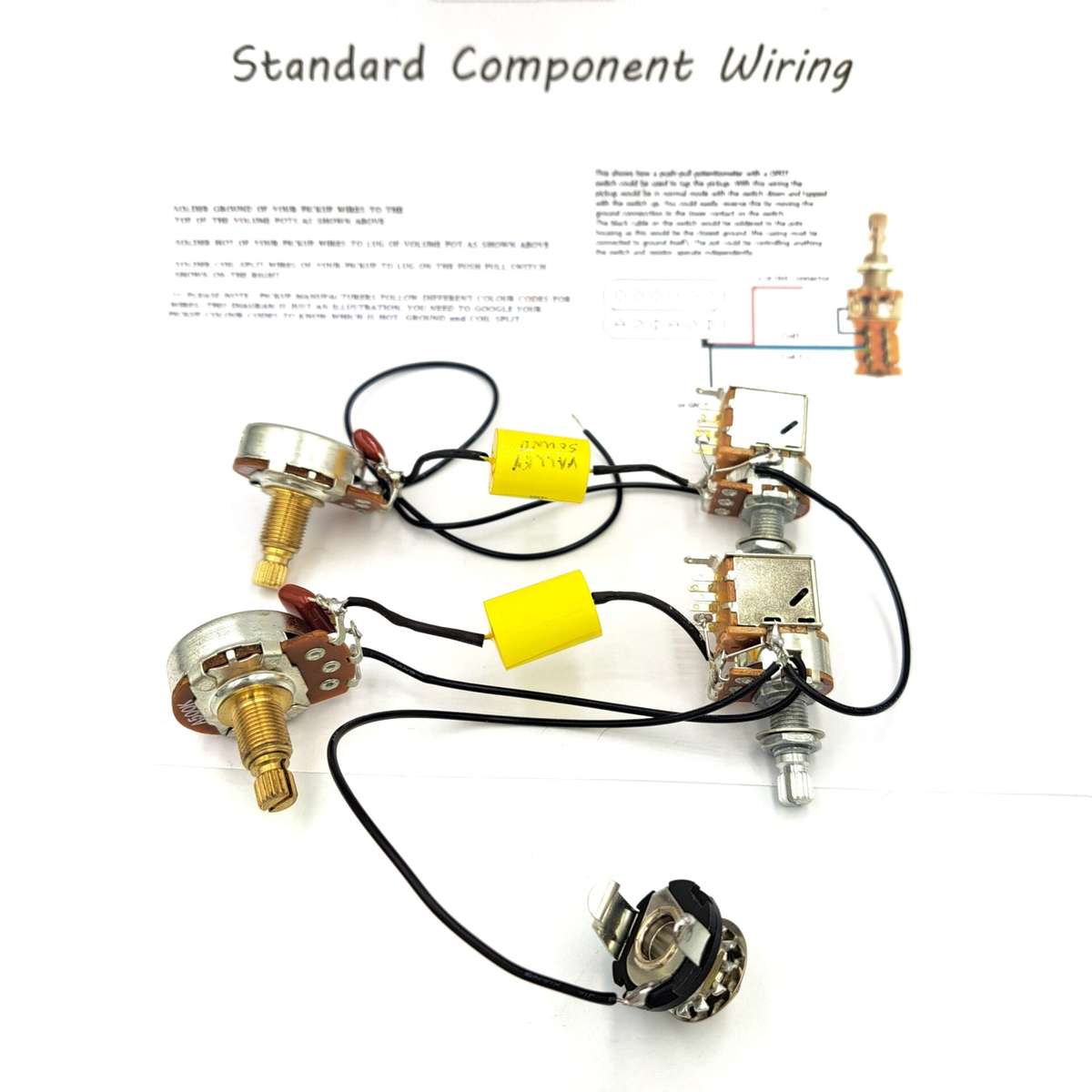

Includes 2 Full Size Brass Shaft A500K potentiometers for Volume and 2 x A500k Push Pull pots for tone with 0.022uf Capacitors, modern Gibson wiring layout, 3 way toggle switch, Karman output jack, Duncan treble bleed on Volumes.
Includes all the necessary nuts and washers. Control knobs not included, please purchase them separately if you need

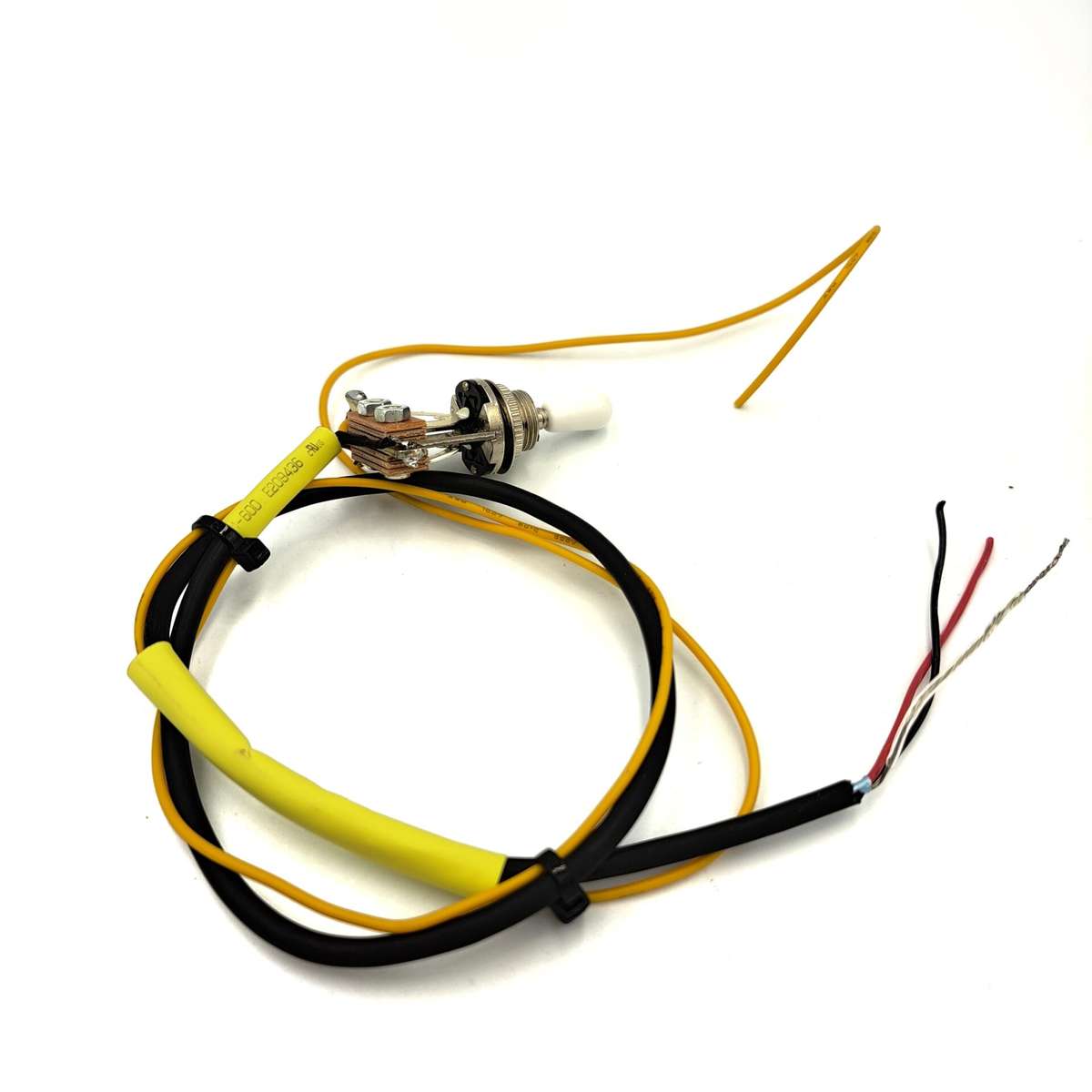

You will receive a prewired switch as well as the prewired pots and jack. You need to feed the wires from the switch through your cavity to the potentiometers cavity, then solder the red and green switch wires to your volume pots (middle lug), solder your pickup wires to your volume pots (left lug) and the white wire from the switch must be soldered to the output jack. There is also a bare / ground wire coming from the switch that gets soldered to the top of any volume pot.
The push pull wires coming from your pickups (usually red and white soldered together) must each go to the top lug on the push pull switch closest to the pot to have the pickups coil split when pulled up. If you want them coil split normally and full humbucker when pulled up then solder them to the bottom lug. The lugs are bridged so it doesn't matter which side you choose, only difference is top or bottom depending if you want coil split by default or by pulling the pot.
Please note when ordering custom pickguard wiring or electronic assemblies, add an extra 24 - 48 hours to the lead time.
