Pre-wired Jazz Bass or PJ Bass Electronics

Jazz bass or P-J Bass electronic assembly that has been pre-wired with vintage spec cloth wire, full size pots with brass shaft (flat bottom or concave - which ever we have available at the time), High quality output jack. There is some extra length between the components (5cm between the pots and 10cm between pot and jack) so this can be used for many different types of bass guitars with varying layouts. If you need it longer or shorter let us know.

- A250K Volume for Neck Pickup

- A250K Volume for Bridge Pickup

- A250K Tone

- Output Jack

- 0.047uf Capacitor

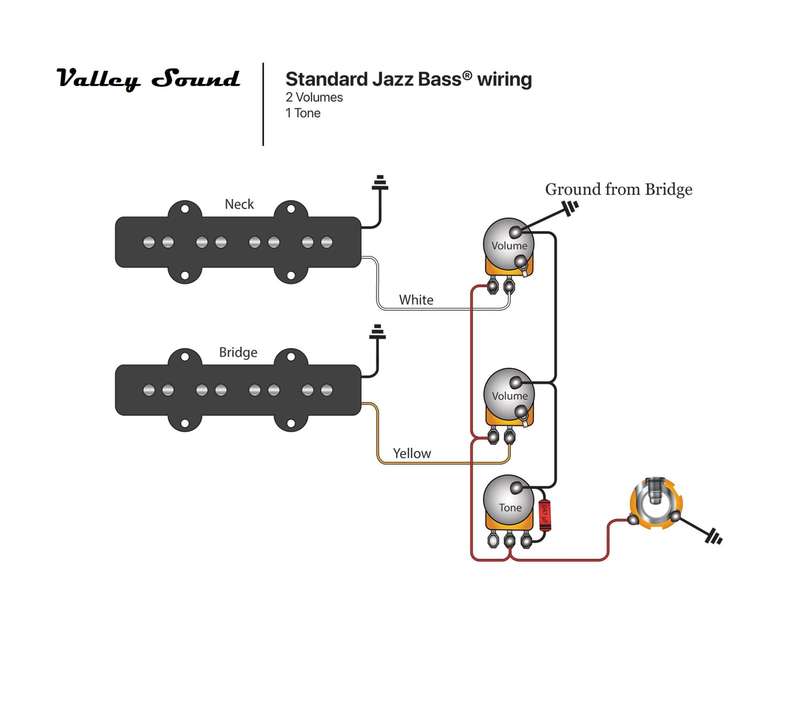

SEE WIRING DIAGRAM IN THIS LISTING - You need to solder the grounding wire from your bridge to the top of the volume pot, you also need to solder the ground of your pickups to the top of the volume pot and the hot of each pickup to the input lug on the relevant volume pot. Everything else is already soldered and assembled. We offer this in a solderless option too.

We can also change the value of the Pots and Capacitor to your preference if you like, let us know. A250k/B250K/A500K/B500K pots are available, as well as 0.022uf or 0.047uf Capacitor.
