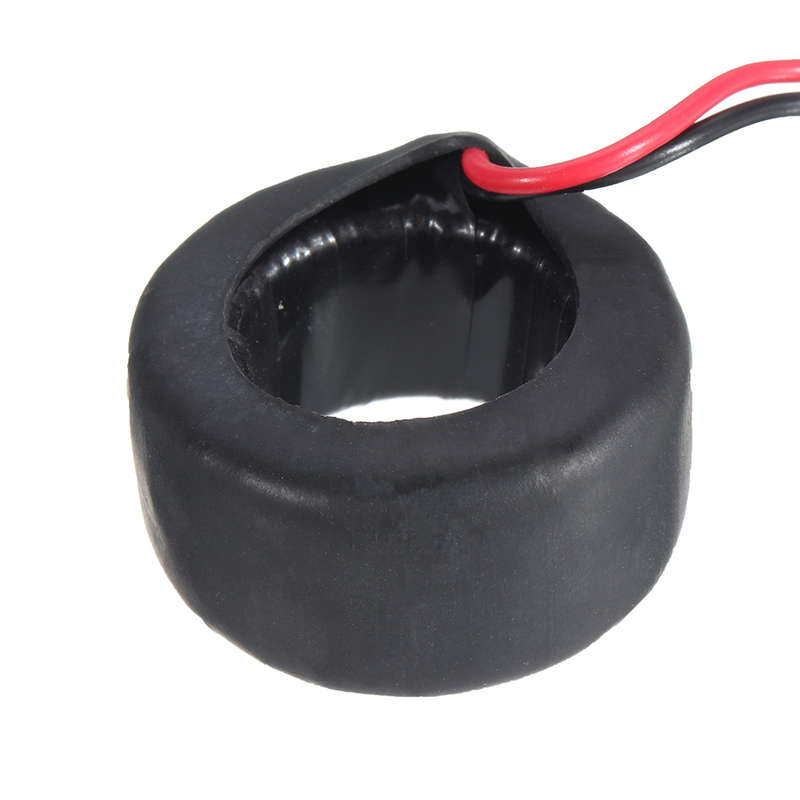

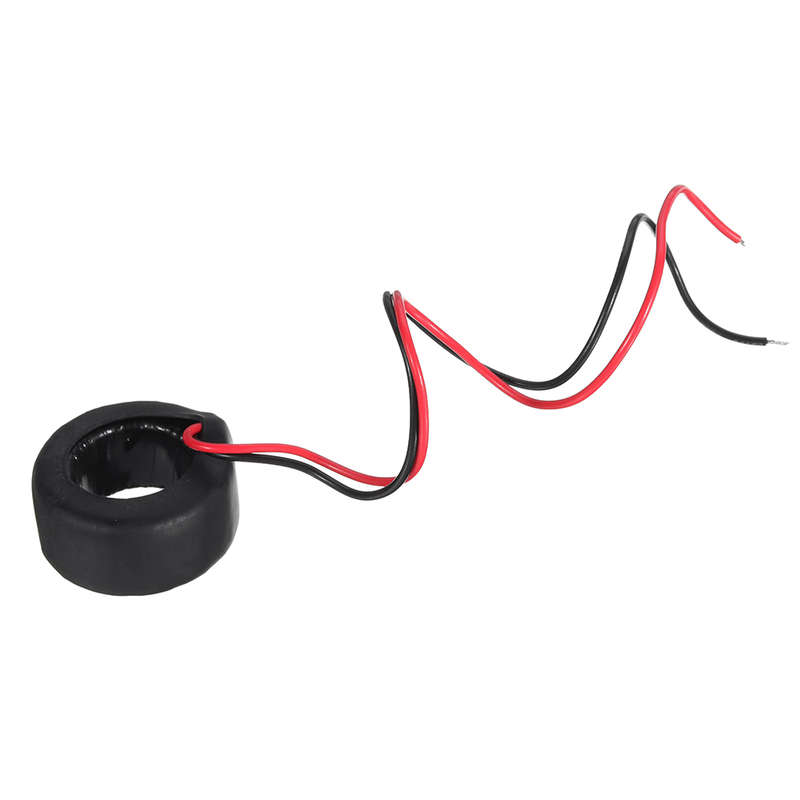

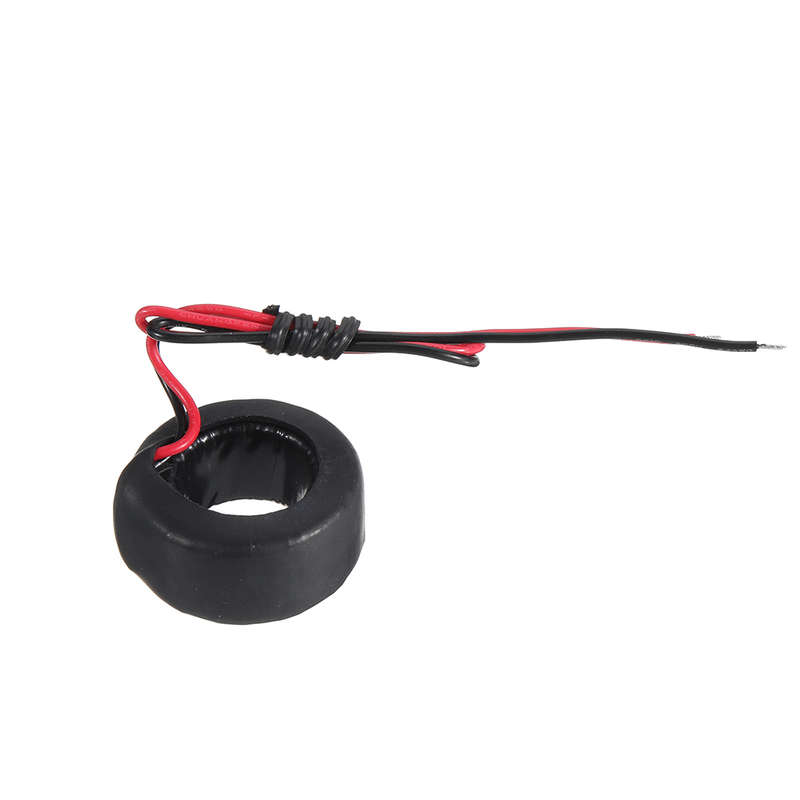

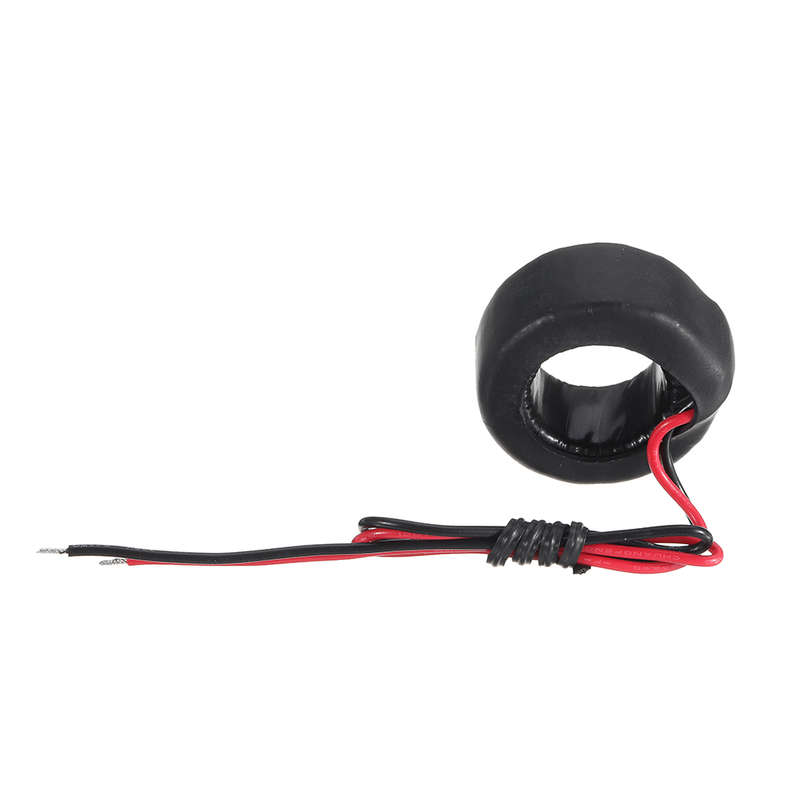

Precision AC Current Transformer Coil PZCT 100A/10mA

20 available / new

R354.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3477

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641132547

Features:
The input bus is perforated, small and light, easy to install and fix; good mechanical and environmental resistance, strong voltage isolation, safe and reliable;
Conditions of Use:
Ambient temperature: Maximum temperature -20a+60a Relative humidity: a95% Voltage 150V240V (AC) Frequency 50Hz (sub-harmonic 150250 Hz)
Performance:
Environment temperature: -55a-+85a Relative humidity: 40a90% Working range: 20Hz-20KHz Insulation heat resistance class: 0.1 class (130a) Insulation resistance: 1000M Anti-electricity: 5000V/1 minute Flame retardancy: in line with VL94-VO level

Model	DLXQ20
Specification	10(50)A/10mA
Measuring current	0-50A (R<=80)
Output ratio	1000/1
Precision	0.1 level
Linearity	0.10%
Linear range	(0~100A (RL<=10)
Isolation withstand voltage	3KV
Use	Current precision measurement
Sealing material	Insulated yellow skin, insulated heat shrinkable tube
Installation method	Through-the-core installation
Operating temperature	-35ﾣC~+70ﾣC
