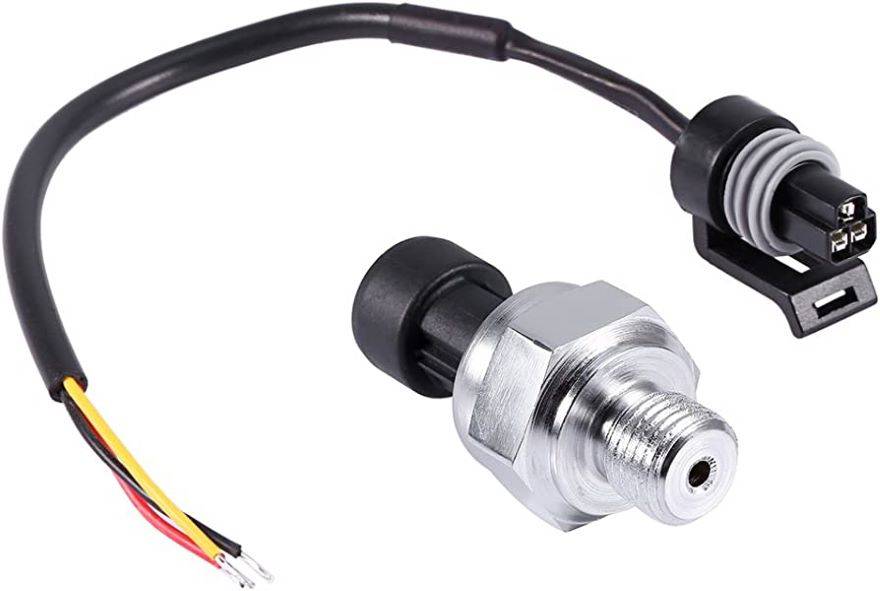

0~1.2Mpa Pressure Sensor for Water Air Oil
Introducing the perfect pressure sensor for your hobbyist who needs our 0~1.2Mpa Pressure Sensor for Water Air Oil! This powerful product is designed to give you precise readings at a moment's notice. With an operating voltage of 5V DC and an output voltage ranging from 0.5-4.5V, this stainless steel and carbon steel alloy sensor is perfect for measuring air, oil, and water with maximum precision.
This 1.2MPa Pressure Sensor unit with G1/4" Fitting is a high-quality pressure sensing unit designed to be used for measuring and monitoring the pressure of the gas, diesel, oil, and other non-corrosive liquids or gases. It has a carbon steel alloy sensing unit for highly accurate measurements, with durable components to ensure a long-lasting lifespan. It is capable of measuring pressures up to 2.4MPa without damage and operates on a low voltage of 5V DC at 10mA. It can safely handle temperatures of up to 85C, with a quick response time of 2.0ms — making it perfect for the intense environment within a fuel tank or similar type of space.
The 1.2MPa G1/4" Pressure Sensor is ideally used for measuring the pressure of fuel, diesel, water, gas, and even air, capable of handling high temperatures and pressures with its carbon steel alloy sensing unit. The sensor is also waterproof, allowing it to be installed within liquids, which is very useful if it's being installed within a fuel tank or similar location. It offers an impressively low 1.5%FSO measuring error, while the low response time of 0.2ms ensures that you can know precisely when the pressure changes.

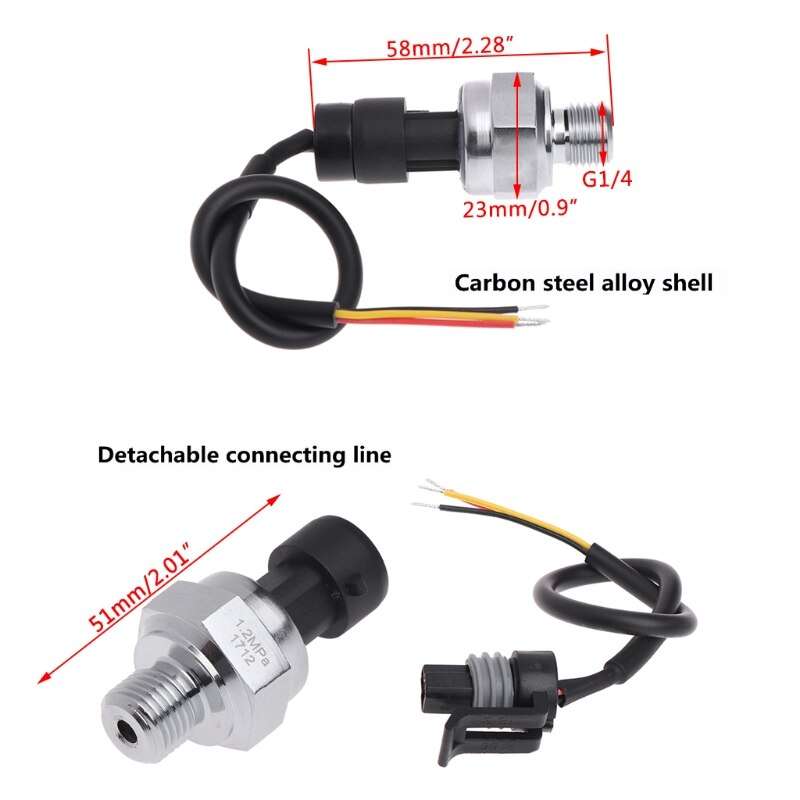

Dimensions
The above image shows you the dimensions of the 0~1.2Mpa Pressure Sensor for Water Air Oil as well as some of its components that can be detached from the unit itself.
0~1.2Mpa Pressure Sensor for Water Air Oil Specification
- Operating Voltage — 5V DC
- Output Voltage — 0.5 - 4.5V DC
- Sensor Material — Carbon Steel Alloy
- Housing Material — Stainless Steel
- Operating Current — 10mA
- Operating Pressure Range — 0 - 1.2MPa
- Maximum Pressure Before Break — 2.4MPa
- Cable Length — 19cm
- Operating Temperature — 0 - 85C
- Measuring Error — 1.5%FSO
- Response Time — 0.2ms
