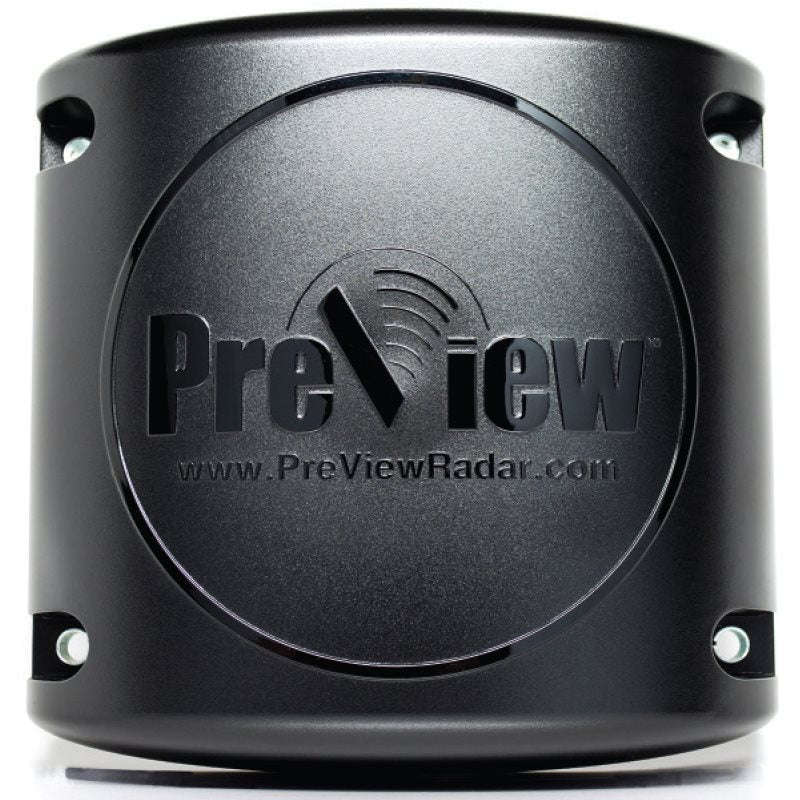

The Preview XPV4232A is a refurbished pulsed RF sensor designed for vehicle detection and proximity applications. Operating at 5.8GHz, it offers reliable performance in harsh environments with sealed electronics, rugged polycarbonate housing, and compliance with FCC Part 15.249 regulations.
With a programmable detection range of 10 to 32 feet, multiple warning zones, and SAE J1939 CAN bus communication, this sensor integrates seamlessly into heavy-duty vehicles, industrial equipment, and safety monitoring systems.
Pulsed RF transmitter at 5.8GHz for accurate proximity detection
Programmable detection range from 10 to 32 feet with 5 warning zones
Sealed electronics for dust and moisture resistance in tough conditions
SAE J1939 CAN bus communication for reliable integration
Rugged housing and vibration/shock resistance for demanding environments
Heavy equipment proximity sensing and collision avoidance
Vehicle-mounted safety systems for industrial or mining operations
Fleet management and monitoring applications requiring CAN integration
Harsh outdoor environments needing rugged detection equipment
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand / Model: Preview XPV4232A
Transmitter: Pulsed RF at 5.8GHz (FCC Part 15.249 compliant)
Connector: Deutsch DT06-08SA-E008
Sealing: Dust and moisture sealed electronics
Housing Material: Polycarbonate radome
Dimensions: 7.56"H x 7.35"W x 2.39"D (19.2 x 18.7 x 6.0 cm)
Weight: 2.2 lb. (1.0 kg)
Operating Temperature: -40°C to +85°C
Vibration Resistance: 25G RMS (all axes)
Shock Resistance: 25G (all axes)
Mounting: Four 8.3mm holes on 6.50" horizontal and 5.00" vertical centers, includes ¼-20 screws (50 in-lbs torque)
Input Voltage: 933VDC (over-voltage protected to 150V)
Input Current: 0.2A max, 1A inrush current limit
Polarity Protection: Negative ground, protected to 150V
Auxiliary Output: +150V tolerant, active low, 1A max sink current
Maximum Range: 32 feet (10m)
Programmable Range: 1032 feet (310m)
Warning Zones: 5 zones within programmed range
Minimum Resolution: 1 foot
Communication: CAN 2.0B physical layer, SAE J1939 extended protocol, 250 KB/s, 70 ms update rate
Regulatory Compliance: FCC Part 15.249 (57255875MHz), FCC ID: OXZPV2000A
Warranty: 3 Month Carry-in Warranty
What's in the Box: Preview XPV4232A Pulsed RF Sensor
