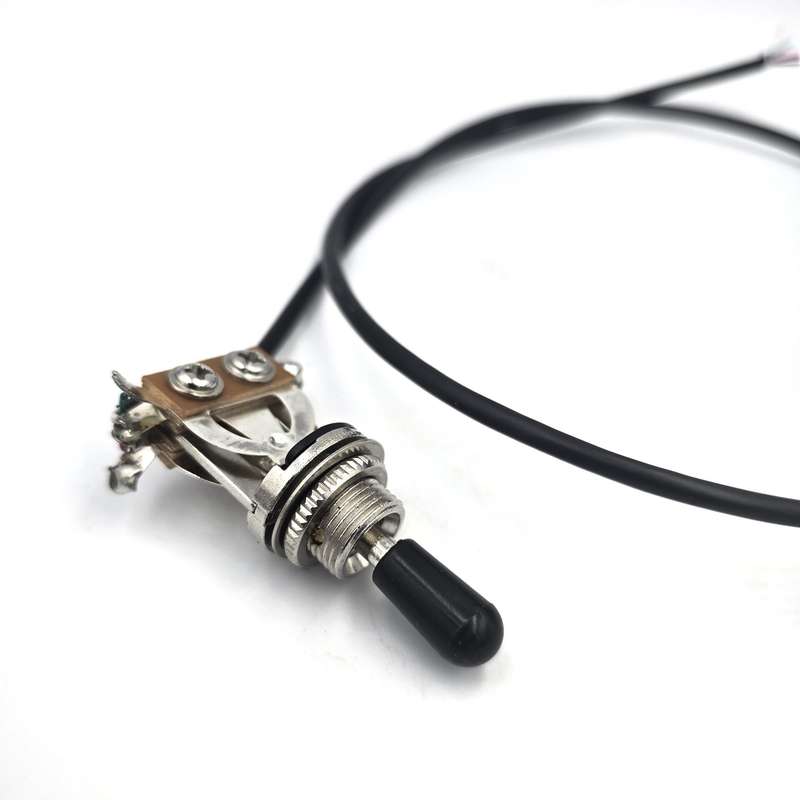

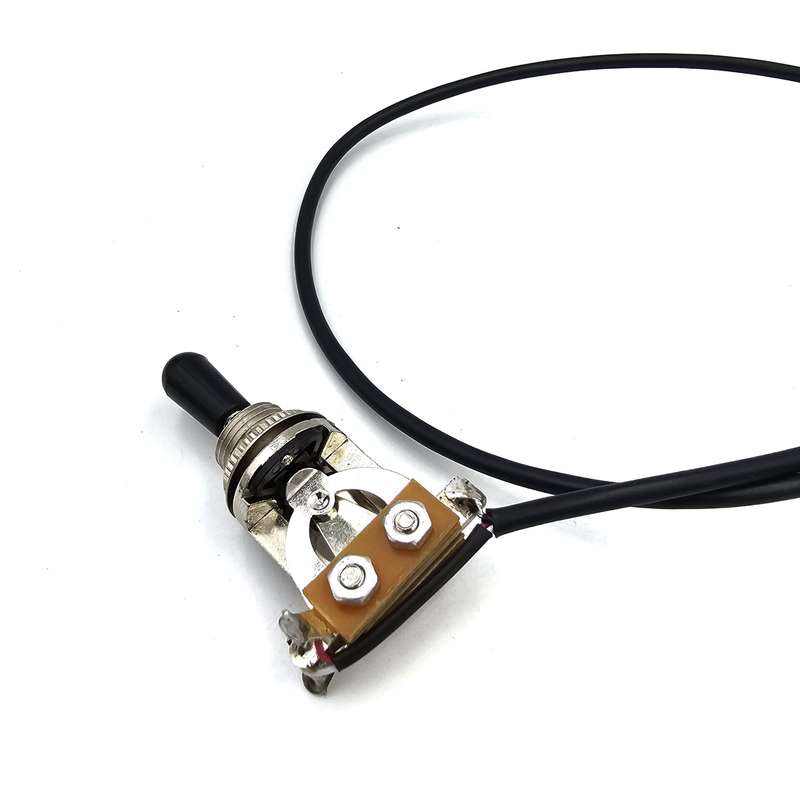

Prewired 3 way toggle switch (Les Paul type)

High quality large heavy duty 3 way toggle switch

Available in Black, White or Ivory Tip.

Takes M3 Size switch tip (one included)

Includes nut and washer. Perfect for Gibson Les Paul type guitars or any guitar that requires a toggle style 3 way switch. See examples of standard les paul wiring in pics.

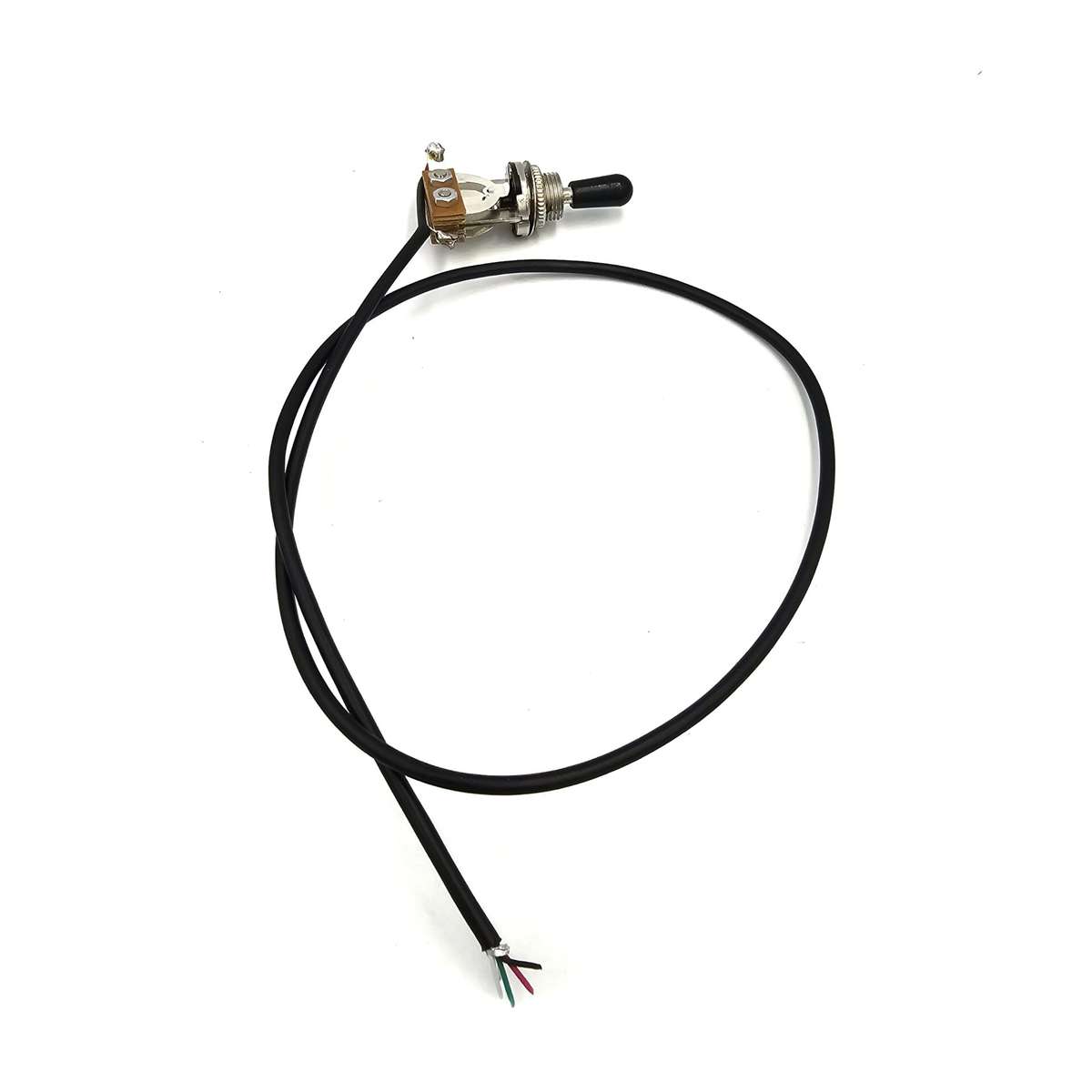

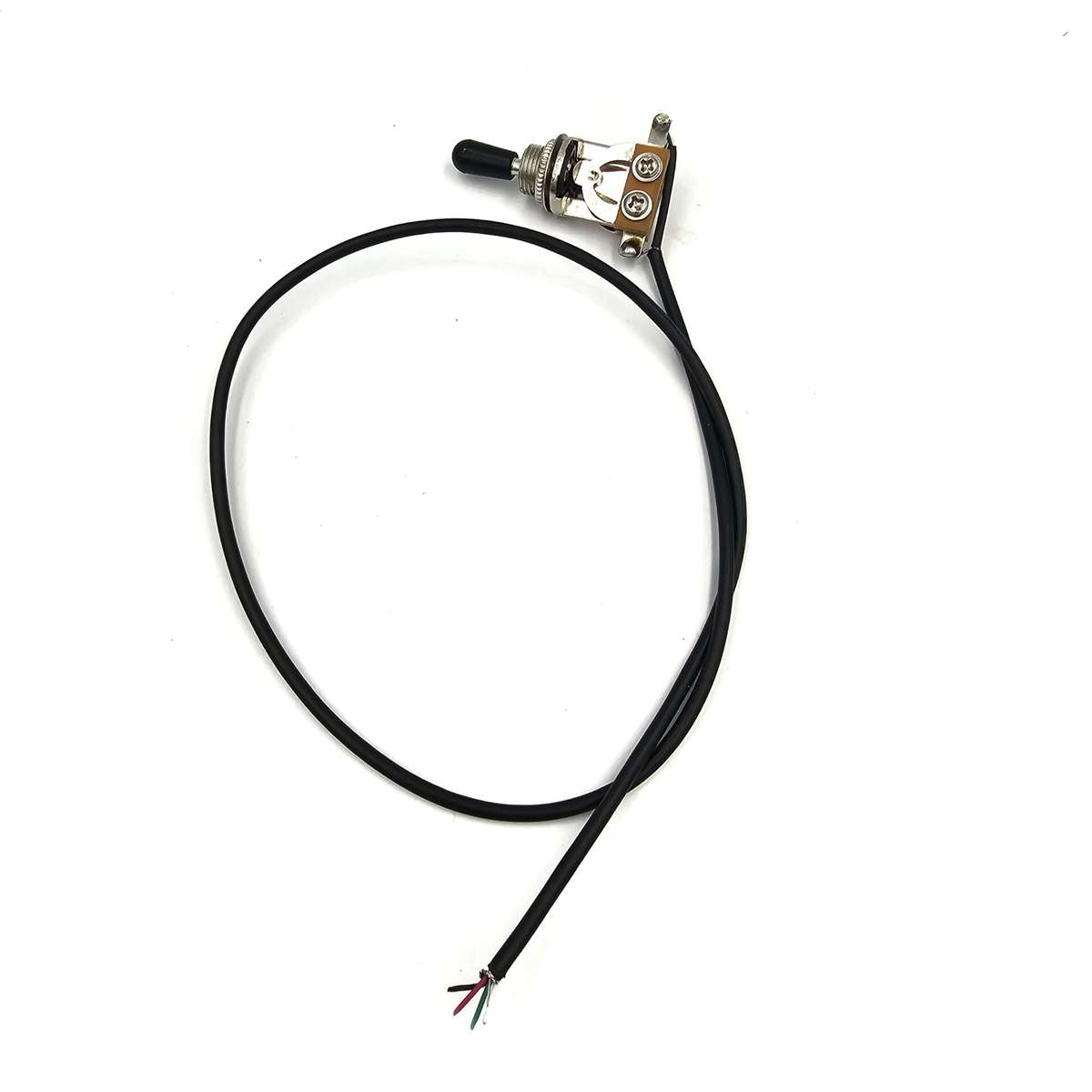

Soldered to the switch is 50cm of shielded wire. The wire is long enough for Les Paul type guitars where the toggle switch is situated at the top of the guitar. If this is the case, feed the wire through the cavity to reach the electronics, then strip back the outer jacket exposing the individual wires. If your toggle switch is located close to your electronics with guitars such as SG or similar then you can snip off the excess wire or bunch it up and cable tie it.

For standard Les Paul type wiring:

GREEN Wire gets soldered to your NECK volume pot output lug (middle lug)

RED Wire gets soldered to your BRIDGE volume pot output lug (middle lug)

WHITE Wire gets soldered to your OUTPUT JACK hot

BLACK Wire (ground) gets soldered to your OUTPUT JACK ground

Bare Wire (ground) gets soldered to the top of any of your pots.

We also sell prewired electronics for any type of guitar, this switch is perfect for our prewired harnesses and you just connect the wires to the solderless connectors on the top of the pots as illustrated with our wiring harnesses instead of soldering.
