LMR-400 coaxial cable provides excellent performance for high power HF needs or VHF/UHF applications. Because of its solid center conductor, it is rather stiff and has a thick shielding for any interference.
A really high quality product that can be used for a variety of ham radio, CB, commercial and marine applications. It's low loss and available in 300m rolls as well, please email for complete roll pricing.
LMR-400 is a great coax choice for jumpers, short HF & VHF runs and portable operations.
Common uses of this cable:
Antenna cable runs to base stations, Access Points (AP), bridges or CPE
Cabling between any WiFi or WiMax antenna and the associated equipment
Indoor or outdoor use
LMR (Land Mobile Radio) Equipment
Local MultiPoint Distribution System (LMDS)
Multi-Channel Multi-Point Distribution Service (MMDS)
Wireless local loop (WLL)
Personal Communication Systems (PCS)
Mobile
Fixed wireless
Ham radio
Model : CRG-400

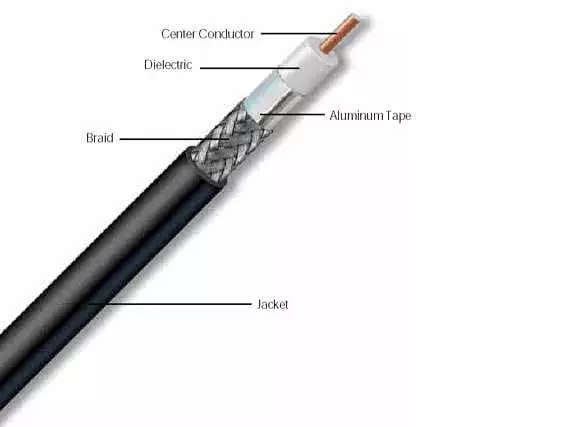

Specifications | |
Centre Conductor | 2.74mm Bare copper |
Insulation (Dielectric) | 7.24mm Foam PE |
Shield 1 | Bonded Aluminium Foil |
Shield 2 | 144/0.16 TiCCA |
Jacket (Sheath) | 0/D 6.95mm PVC Black |
Mechanical Characteristics | |
Cable weight (incl spool) | 13.3kgs/100m |
Max Recommended pulling tension | 72.7kg |
Minimum Band Radius | 25.4mm |
Operating Temperture | -40° to +80°C |
Electrical Characteristics | |
Impedance | Capacitance 78.4pF/M: 50 ± 1 Nom |
Attenuation: | |
Frequency (MHz) 30 | |
dB/100m 2.29 | |
Avg. Power Watts 3300 | |
Velocity of propagation | Capacitance 78.4pF/M: 85% |
Attenuation: | |
Frequency (MHz) 50 | |
dB/100m 2.89 | |
Avg. Power Watts 2600 | |
Conductor DCR | Capacitance 78.4pF/M: 4.60 Ohms/km |
Attenuation: | |
Frequency (MHz) 150 | |
dB/100m 4.95 | |
Avg. Power Watts 1500 | |
Shield DCR | Capacitance 78.4pF/M: 5.40 Ohms/km |
Attenuation: | |
Frequency (MHz) 220 | |
dB/100m 6.14 | |
Avg. Power Watts 1200 | |
Nom. Inductance | Capacitance 78.4pF/M: 0.20 uH/m |
Attenuation: | |
Frequency (MHz) 450 | |
dB/100m 8.60 | |
Avg. Power Watts 830 | |
Peak Power | Capacitance 78.4pF/M: 16kW |
Attenuation: | |
Frequency (MHz) 900 | |
dB/100m 12.83 | |
Avg. Power Watts 580 | |
Nominal Delay | Capacitance 78.4pF/M: 5.05ns/mtr |
Attenuation: | |
Frequency (MHz) 1500 | |
dB/100m 16.86 | |
Avg. Power Watts 440 | |
Maximum Operating Voltage | Capacitance 78.4pF/M: 2500 v RMS |
Attenuation: | |
Frequency (MHz) 1800 | |
dB/100m 18.57 | |
Avg. Power Watts 400 | |
Cut off Frequency | Capacitance 78.4pF/M: 16.2GHz |
Attenuation: | |
Frequency (MHz) 2000 | |
dB/100m 19.65 | |
Avg. Power Watts 370 | |
Return Loss (820-960MHz) | Capacitance 78.4pF/M: 20 dB |
Attenuation: | |
Frequency (MHz) 2500 | |
dB/100m 22.28 | |
Avg. Power Watts 330 | |
Return Loss (17000-2200MHz) | Capacitance 78.4pF/M 20 dB |
