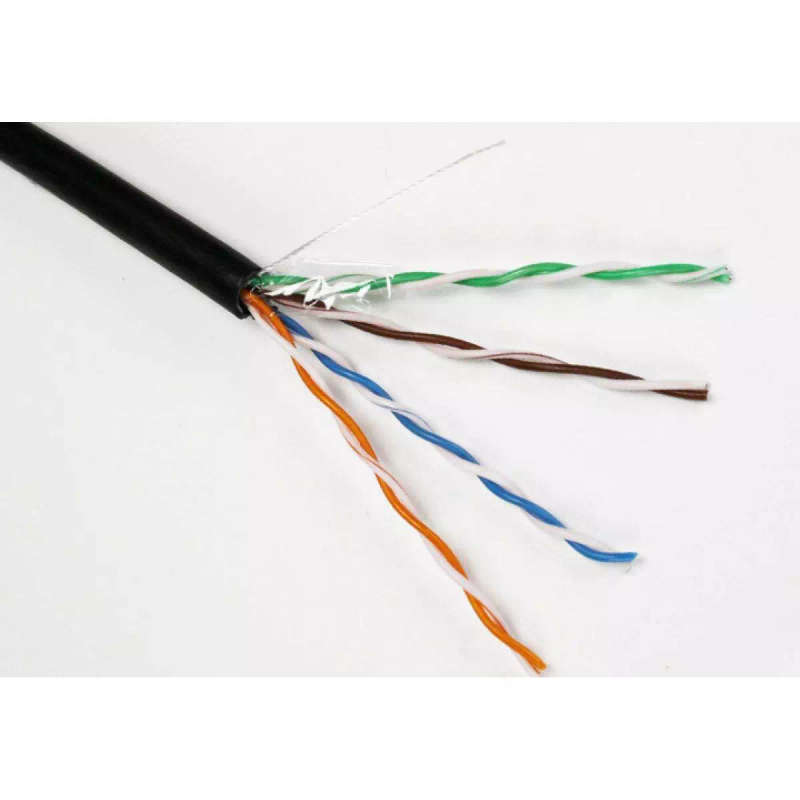

Price per Meter | CAT5e FTP Gigabit Outdoor Networking Cable with Drain Wire | Black | UV

Price per Meter | CAT5e FTP Gigabit Outdoor Networking Cable with Drain Wire | Black | UV

When doing outdoor installations for networking, this CAT5e UV Protected Cable should be your first choice, due to its fantastic UV reduction shielding, making sure that your networks perform optimally, even when faced with direct UV rays from the sun. This cable has been constructed without a central plastic cable separator which increases cable width to ensure this CAT5e Cable can fit through very thin conduit and restricted spaces. It has been tested up to ± 60 Meter on 1Gbps Network switches to ensure Gigabit speeds on the network it is installed in. Longer lengths will sync to 100Mbps depending on network switches quality but average 1Gbps distances will be 50+ Meter lengths.

Usage:

• 10/100 Mbps / Gigabit Networks / Up to 1Gbps Network Switches / 1000 Base-T4 Network networking
• Telephony Voice Wiring
• Alarm Panels 8-Core or less cores Wiring
• Home Automation Wiring for trigger switches

Specifications

• Rated Temperature: 75º C
• Conductor: 0.57mm±10%
• Insulation(±0.03mm): 0.18mm PE Black UV Coated
• Outer Cable Diameter with Insulation : 5mm
• Standard PVC or LSOH jacket

These cables are 24AWG=0.55-0.57mm. Do not be fooled by suppliers selling cheaper 24AWG=0.51mm CAT5 or CAT6 cables. Each conductor on this cable is 0.57mm±10% for less signal loss than 24AWG and suitable for 1Gbps Networking, POE, CCTV or any other telephony applications.

To terminate / crimp RJ45 connectors correctly onto UTP or STP cables use the Crimping Tool below.

Recommended RJ45 CAT6/CAT7 Connectors below. CAT5e Connectors may work but the RJ45 Sleeves may not be wide enough.

Connectors below can be used for this cable but persons not skilled in assembling networking cables may find it hard to construct due to width of connector sleeves not as big as above connectors:
