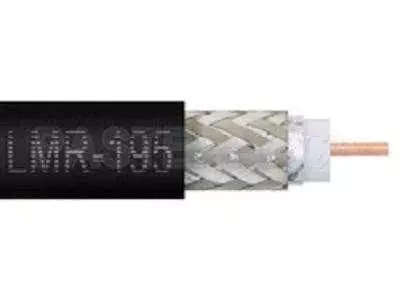

Price per Meter | LMR195 Cable, 50 Ohm | Coaxial Cable for SMA, TS9, CRC9

LMR195 Coaxial cable is mostly used with the SMA Connectors at Crimp-on SMA Female Connector (Used with LMR175 Cable for Wifi Antenna Extension cable) and Crimp-on SMA Male Connector (Used with LMR175 Cable for Wifi Antenna Extension cable) to provide a Male to Female Extension cable for Wi-fi Routers. Mostly Wi-fi Routers Antenna's are connected directly to the router but by using an extension cable the Antenna can be placed centrally for best Wi-Fi Signal reception. The Extension cables made from LMR195 and SMA Connectors can also be used with the 4G Outdoor Antenna.

Cable Specifications:
  • Inner conductor: 0.94 mm BC
  • Impedance : 50 Ohm
  • Dielectric: 2.79mm gas-injected foam PE
  • Shield: AL/PET, Tinned copper/bare copper braiding 7/16/0.12
  • Jacket: 4.95 mm PVC
  • Signal Loss: Loss is less than 0.9dBi per meter / 0.3dBi per Feet

Please note that this product is the cable only / Per Meter pricing and SMA Connectors needs to be purchased separately as below

Specifications
Centre Conductor0.94mm Bare Copper
Insulation (Dielectric)2.79mm Foam PE
Shield 1Bonded Aluminium Foil
Shield 2112/0.12 TiCCA
Jacket (Sheath)0/D 4.95mm PVC Black
Mechanical Characteristics
Cable weight (incl spool)13.3kgs/100m
Max Recommended pulling tension72.7kg
Minimum Band Radius25.4mm
Operating Temperature-40° to +80°C
Electrical Characteristics
ImpedanceCapacitance 78.4pF/M: 50 ± 1 Nom
Attenuation:
Frequency (MHz) 30
dB/100m 2.29
Avg. Power Watts 3300
Velocity of propagationCapacitance 78.4pF/M:  85%
Attenuation:
Frequency (MHz) 50
dB/100m 2.89
Avg. Power Watts 2600
Conductor DCRCapacitance 78.4pF/M:  4.60 Ohms/km
Attenuation:
Frequency (MHz) 150
dB/100m 4.95
Avg. Power Watts 1500
Shield DCRCapacitance 78.4pF/M:  5.40 Ohms/km
Attenuation:
Frequency (MHz) 220
dB/100m 6.14
Avg. Power Watts 1200
Nom. InductanceCapacitance 78.4pF/M: 0.20 uH/m
Attenuation:
Frequency (MHz) 450
dB/100m 8.60
Avg. Power Watts 830
Peak PowerCapacitance 78.4pF/M: 16kW
Attenuation:
Frequency (MHz) 900
dB/100m 12.83
Avg. Power Watts 580
Nominal DelayCapacitance 78.4pF/M: 5.05ns/mtr
Attenuation:
Frequency (MHz) 1500
dB/100m 16.86
Avg. Power Watts 440
Maximum Operating VoltageCapacitance 78.4pF/M: 2500 v RMS
Attenuation:
Frequency (MHz) 1800
dB/100m 18.57
Avg. Power Watts 400
Cut off FrequencyCapacitance 78.4pF/M:  16.2GHz
Attenuation:
Frequency (MHz) 2000
dB/100m 19.65
Avg. Power Watts 370
Return Loss (820-960MHz)Capacitance 78.4pF/M: 20 dB
Attenuation:
Frequency (MHz) 2500
dB/100m 22.28
Avg. Power Watts 330
Return Loss (17000-2200MHz)Capacitance 78.4pF/M 20 dB
