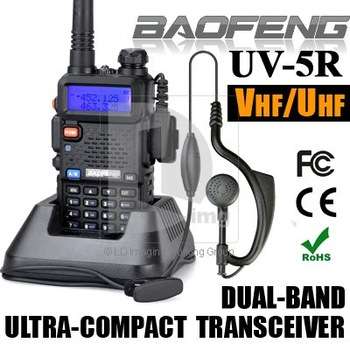

Pro BAOFENG Two-Way Radio UV-5R U.V FM Transceiver Dual Band 136-174/400-480MHz
. Dual-band handheld transceiver with display function menu on the display " LCD"
. DTMF encoded
. Lithium-ion battery with high capacity
. Commercial FM radio receiver (65 MHz ~ 108MHz)
. Incorporates 105 codes "DCS" and 50 privacy codes " CTCSS" programmable
. Function " VOX" (voice operated transmission)
. Alarm function
. Up to 128 memory channels
. Broadband (wide) / Narrowband (narrow), selectable
. High power / low (5W/1W) selectable
. Display illumination and programmable keyboard
. Function " beep" on the keyboard
. Dual watch/dual reception
. Selectable frequency step 2.5/5/6.25/10/12.5/25kHz
. Function " OFFSET" (frequency offset for repeater access)
. Battery saving function " SAVE"
. Timer transmission "TOT" programmable
. Selecting the Scan Mode
. Function Busy Channel Lock " BCLO"
. Built-in RX CTCSS/DCS scan
. Built-in LED flashlight
. Programmable by PC
. Level threshold "Squelch" adjustable from 0 to 9
. Cross band reception
. Tone end of transmission
. Built-in key lock
Specification:
General
Frequency Range: VHF 136-174 MHz (Rx/Tx). UHF 400-480MHz (Rx/Tx);
65MHz ~ 108MHz (Only commercial FM radio reception)
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Frequency step: 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz
Antenna impedance: 50?
Operating temperature: -20°C to +60°C
Supply voltage: Rechargeable Lithium-ion 7.4V/1800mAh
Consumption in standby: ? 75mA
Consumption in reception: 380mA
Consumption in transmission: ? 1.4A
Mode of Operation: Simple or semi-duplex
Duty cycle: 03/03/54 min (Rx/Tx/Standby)
Dimension: 110x60x32 mm
Weight: 205g (included battery+ antenna)
Transmitter
RF power: 4W/1W
Type of modulation: FM
Emission class: 16k?F3E / 11k?F3E (W/N)
Maximum deviation: ? ±5kHz / ? ±2.5kHz(W/N)
Spurious emissions: <-60dB
Receiver
Receiver sensitivity: 0.2uV(at 12dB SINAD)
Intermodulation: 60dB
Audio Output: 1000mW
Adjacent channel selectivity: 65/60dB
Power Adapter
Input: AC100-240V, 50-60Hz; Output: DC10V/500mA; Plug Type: US
Contains:
1x BAOFENG UV-5R FM Two-Way Radio Body (not included battery)
1x 7.4V/1800mAh Battery
1x Antenna
1x Power Adapter
1x Belt Clip
1x Battery Charger
1x Earpiece
1x Neck Strap
User Manual
