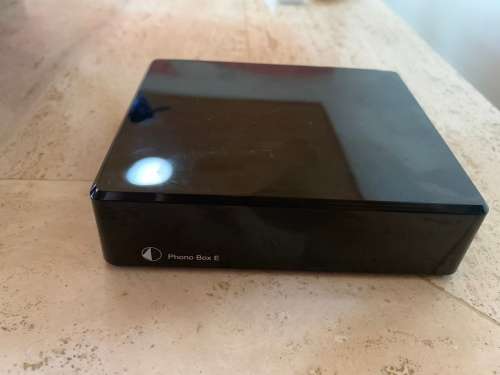

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry-level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.
Specifications
| Input impedance | 47kohms |
| Input capacitance | 120pF |
| Gain | 40dB |
| Output voltage(typically) | 500mV @ 1KhZ with 5mV input |
| Noise floor | 88dB (A weighted) |
| THD | <0,04% |
| RIAA equalisation accuracy | 20Hz – 20kHz (+0,5/ - ,02dB) |

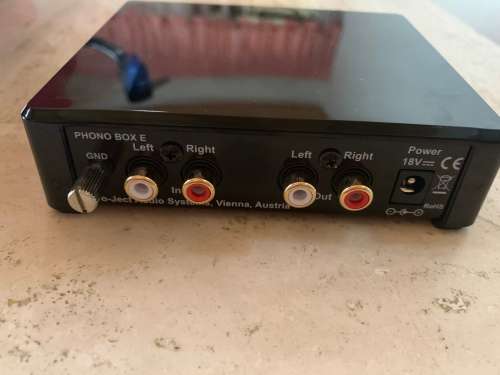

| Input | 1 pair RCA socket |
| Output | 1 pair RCA socket |
| Outboard power supply | 18V/500mA DC; 220 - 240V, 50Hz |
| Standby power consumption | < 1 watt |
| Power consumption | 20mA DC |
| Dimension W x H x D (D with sockets) | 120 x 32 x 100 (115)mm |
| Weight | 250 g without power supply |
