Pro Mini 5V/16MHz (Arduino Compatible)

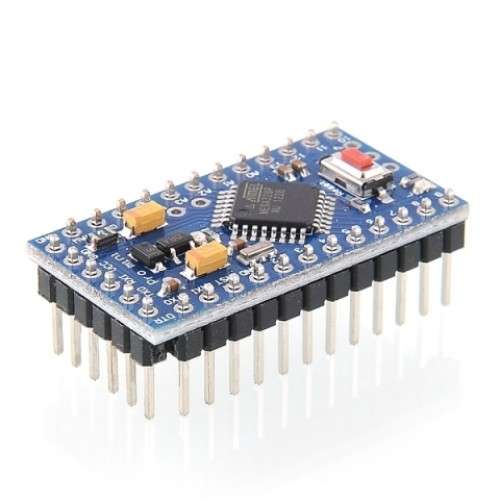

The Pro Mini / Mini Pro is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or other USB to UART module to provide USB power and communication to the board.

The Pro Mini / Mini Pro is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

This is the 5V / 16MHz version. A USB-TTL converter is required to program this board.

Features:

• Microcontroller: ATmega328
• Operating Voltage: 5V
• Input Voltage: 5 - 12 V
• Digital I/O Pins: 14 (of which 6 provide PWM output)
• Analog Input Pins: 8
• DC Current per I/O Pin: 40 mA
• Flash Memory: 16 KB (of which 2 KB used by bootloader)
• SRAM: 1 KB
• EEPROM: 512 bytes
• Clock Speed: 16 MHz

Note: This is an Arduino compatible board and is labelled as a "Mini Pro". It comes packaged in an anti-static bag instead of the retail boxed version.

Note: This is an Arduino compatible board and is labelled as a "Mini Pro". It comes packaged in an anti-static bag instead of the retail boxed version.
