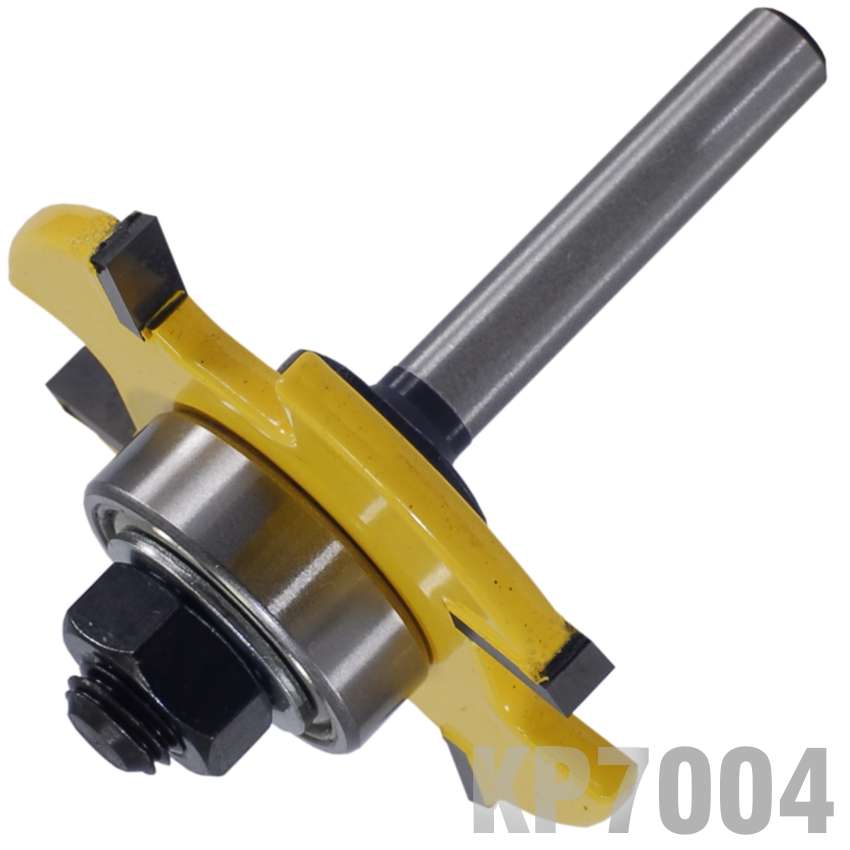

Name: Pro-Tech - 4mm 4 Lip Biscuit Groove Bit - Pro-Tech - 4mm 4 Lip Biscuit Groove Bit
SKU: 24207852
Price: 659.00 ZAR
Availability: InStock

Pro-Tech - 4mm 4 Lip Biscuit Groove Bit - Pro-Tech - 4mm 4 Lip Biscuit Groove Bit

New

24 available

Indicative market price: R1,089.00

R659.00

39% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Toolhome408

84.30 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

24207852

Bob Shop ID

690236001

BiscuitSlot Cutter

Biscuit slot cutter bit by Pro-Tech

The biscuit slot cutter comes in handy when one does not have access to a biscuit joiner. It is more than a biscuit slot cutter it can be used for cutting slots in the side of wood for other purposes too.

This four-wing design allows for cutting precise slots for No. 0, No. 10 and No. 20 biscuits. The bearing guide needs to be replaced with a different size in order to accommodate smaller than No. 20 biscuits.

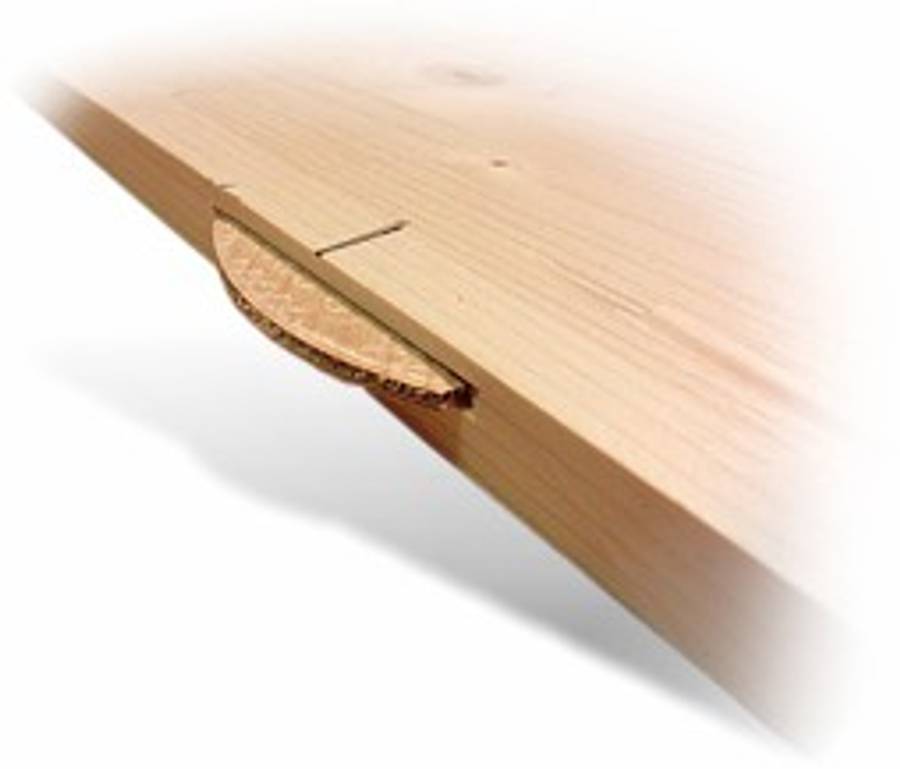

Biscuit inserted '

This router bit has a6.35 mm shank (shaft) that will fit most small or large routers with the correct size collet. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.

PRO-TECH router bits are manufactured in Taiwan.

Features

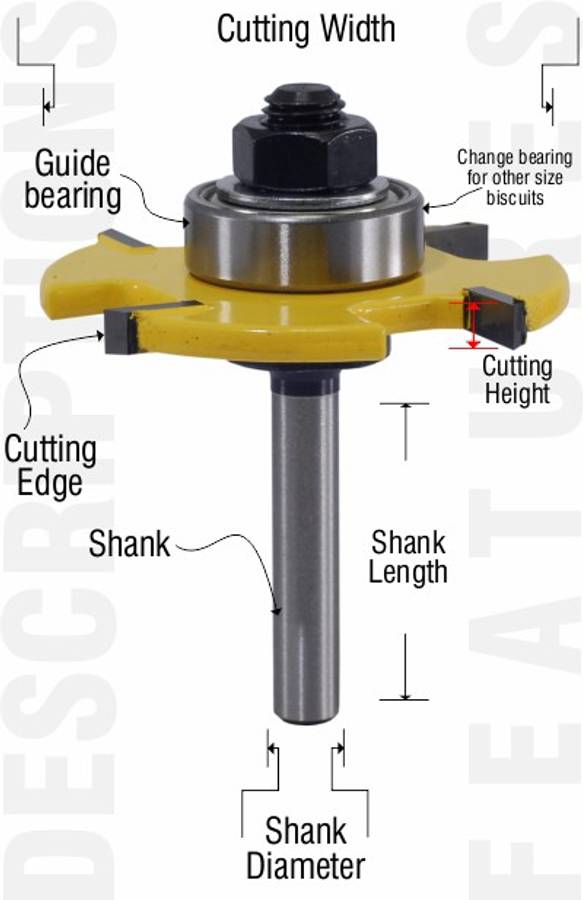

Biscuit cutter descriptions

Specifications

Part No.	Shank dia.	Cutting width	Cutting Height
KP7004	¹/₄ inch	2 inch	⁵/₃₂ inch
KP7004	6.35 mm	50.80 mm	4 mm

Replacement bearings for other biscuit sizes

Buiscuit Size	Part number	Bearing size
No. 0 (Small)	KP7004-3	31.75 OD X 8 ID
No. 10 (Medium)	KP7004-2	28.6 OD X 8 ID
No. 20 (Large)	KP7004-1	25.4 OD X 8 ID

Length of Shank: 32 mm
Replacement bearing: KP7004-1
Replacement cutter: KP7004-5
Replacement ½"shaft: KP7004-4

Slot cutter router bit

Extra Info

Router Bit Maintenance

Fortunately, this is pretty easy. The best way to prolong the life of a router bit is to keep it clean. And what you need to do varies with the type of bit.

Note: Sharpening is extremely important too.

Bits with Bearings:

To clean bits with bearings, first, remove the bearing. Then clean the bit as you did with non-bearing bits.

It's important to remove the bearings because even though router bearings are "sealed," resin remover can sneak in and dissolve the bearing grease. If this were to happen, you would be faced with the problem of trying to lubricate a sealed bearing.

Despite the claims of bearing grease sellers, we've never had much luck with this. Once that grease is gone, just go buy a new bearing.

Bit Shanks:

Periodically inspect the shanks of your router bits for rust or burrs. Either of these can be removed quickly with ScotchBrite^®. Left on, they can interfere with your ability to properly tighten the bit in the collet.

Safety

consider safety for your health and the people around you
