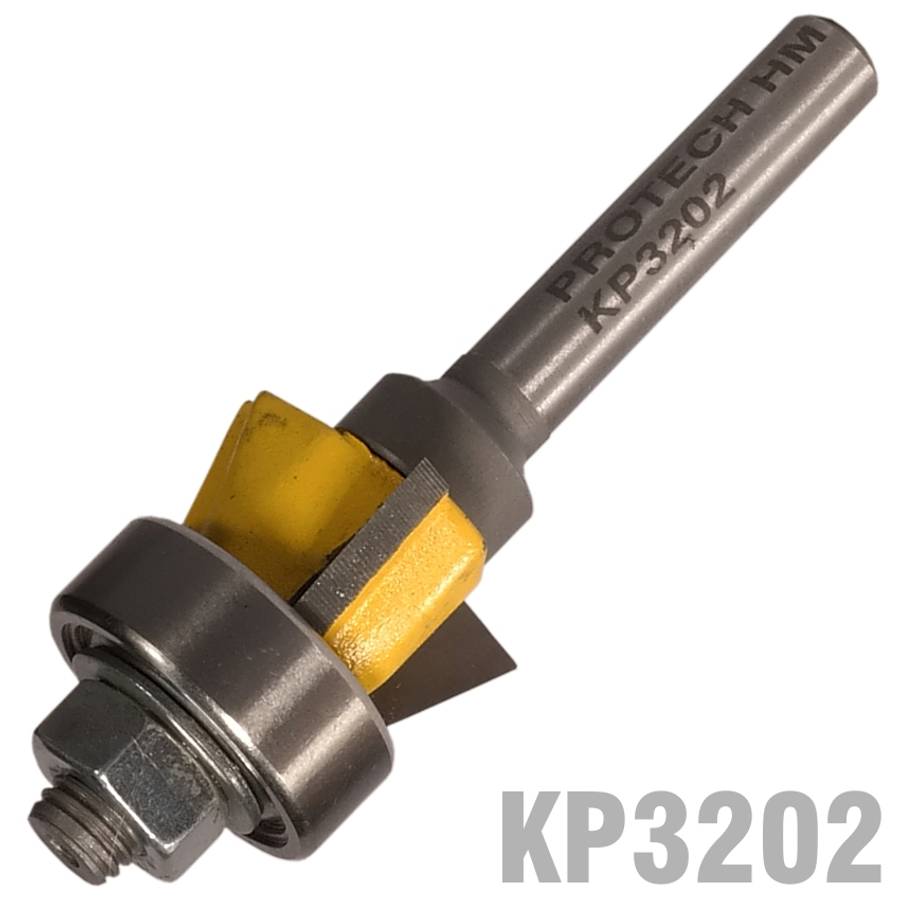

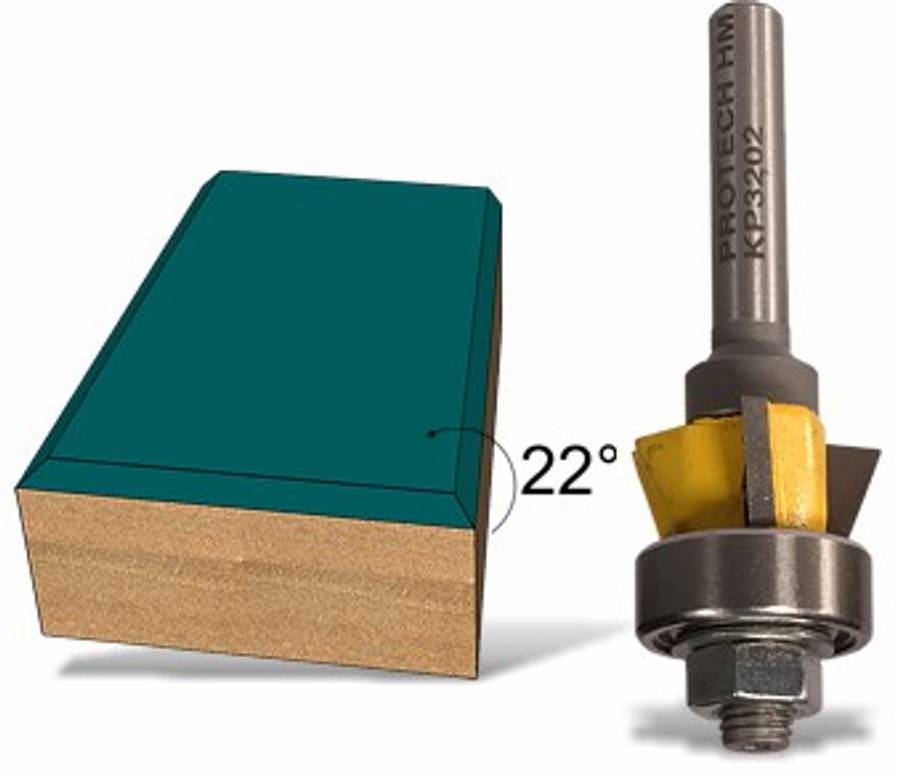

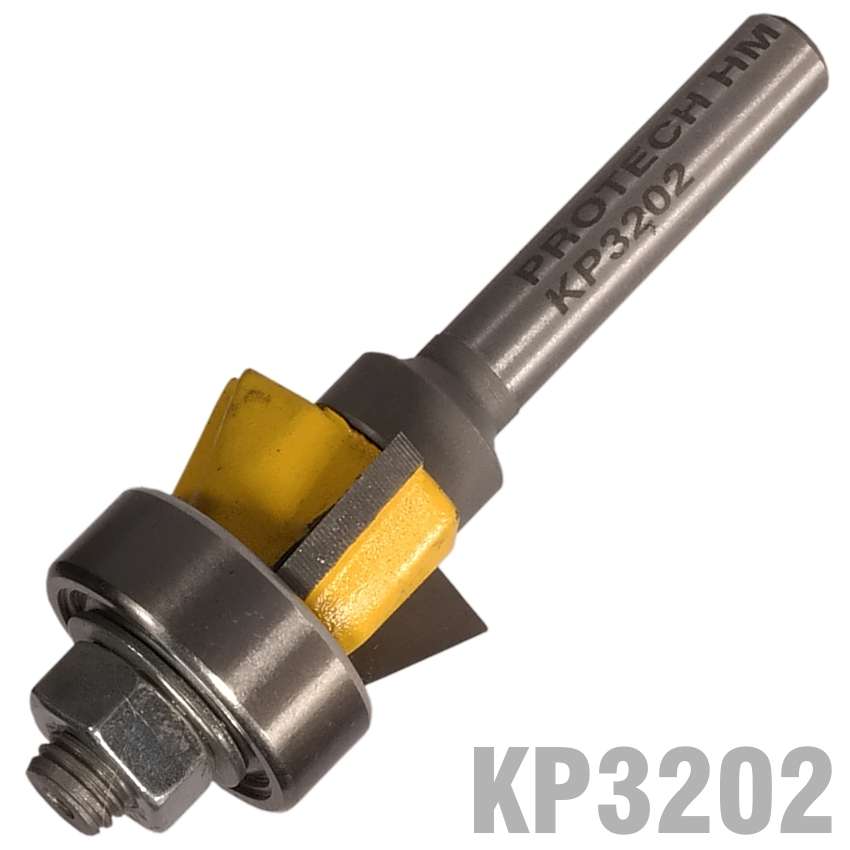

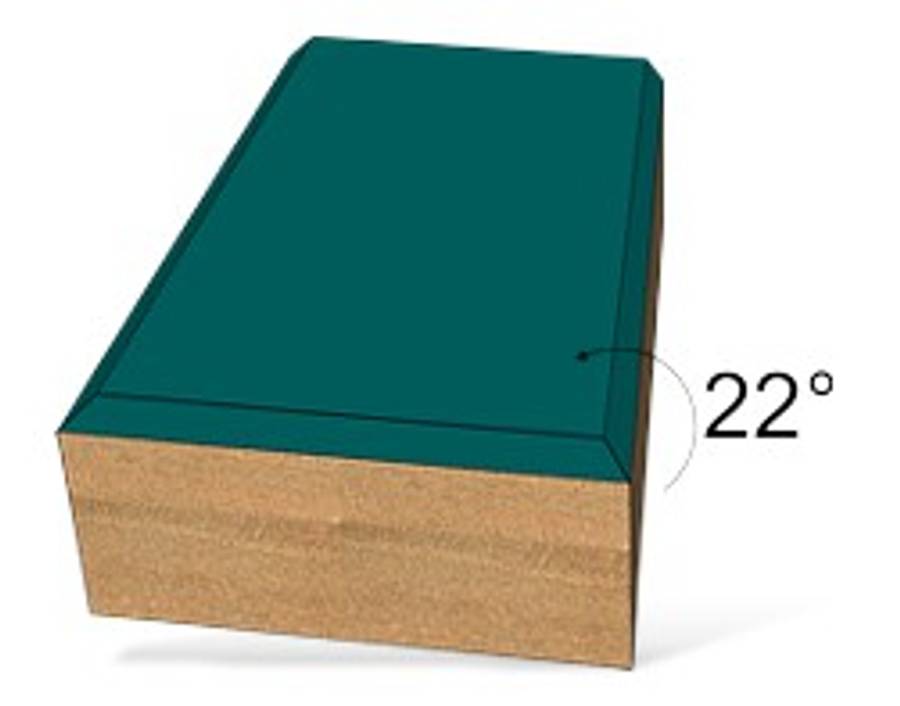

22° Bevel Trim bit
Carbide TippedThis 22 degree angled bevel carbide-tipped bit reduces vibration, and its three-flute configuration produces a very smooth cut. Some craftsmen apply this router bit in trimming melamine edging to reduce the sharp edge that normally exists on melamine edging.

This router bit has a6.35mm shank (shaft) that will fit most small routers. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.
PRO-TECH router bits are manufactured in Taiwan. This well-supported and affordable router bit range is a known BRAND in South Africa for over 30 years.

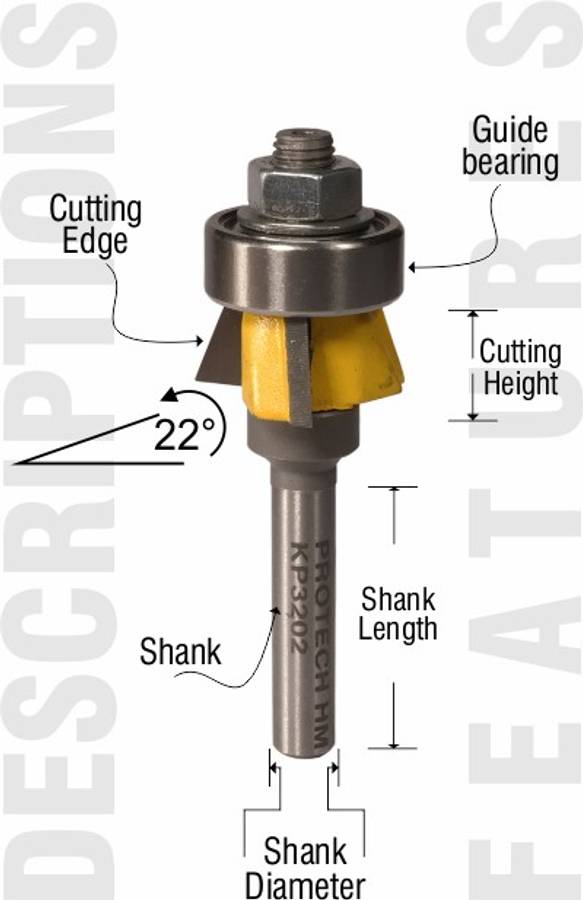

| Part No. | Shank dia. | Cutting width | Cutting Height | Angle (°) |
| KP3202 | 1/4 in ( 6.35mm ) | 54/64 in ( 21mm ) | 3/8 in ( 9.52mm ) | 45° |
Length of Shank: 32 mm
Replacement bearing part number: KP100 1-2
![]()
![]()
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
| |||
Wear Gloves | Eye Protection | Hearing Protection | Dust Mask |
To use router bits safely (and to get the best results from your router), the router bits need to be installed properly into the router's collet. Improper installation of your bits can cause excessive chatter and could increase the likelihood that the bits will break when in use.
First of all, before beginning any routing operation, check your bits to make sure that they are clean, relatively free of pitch, and most of all, sharp. If the bit is dull, chipped, is excessively burned or has any other defect, it should be sharpened or replaced before use.
Correct collet and collet nut fitMost router collets have a recess (groove) that needs to click into a circlip that resides inside the collet nut. Failing to ensure that the collet "clicked" into the collet nut will cause you to struggle to remove the router bit after tightening. This could cause the collet to break or be removed by a technical repair centre.
Correct fit inside the colletWhen installing the bit into the collet, do not tighten the collet with the bit "seated." Instead, insert the bit until the shank (bit shaft) reaches the bottom of the collet, then ease it out about 2 mm before tightening the collet.
When the bit is tightened
