Name: Pro-Tech - Classical Ogee Bit 1 5/16 X 5/8 1/2 Shank - Pro-Tech - Classical Ogee Bit 1 5/16 X...
SKU: 18401
Price: 1065.00 ZAR
Availability: InStock

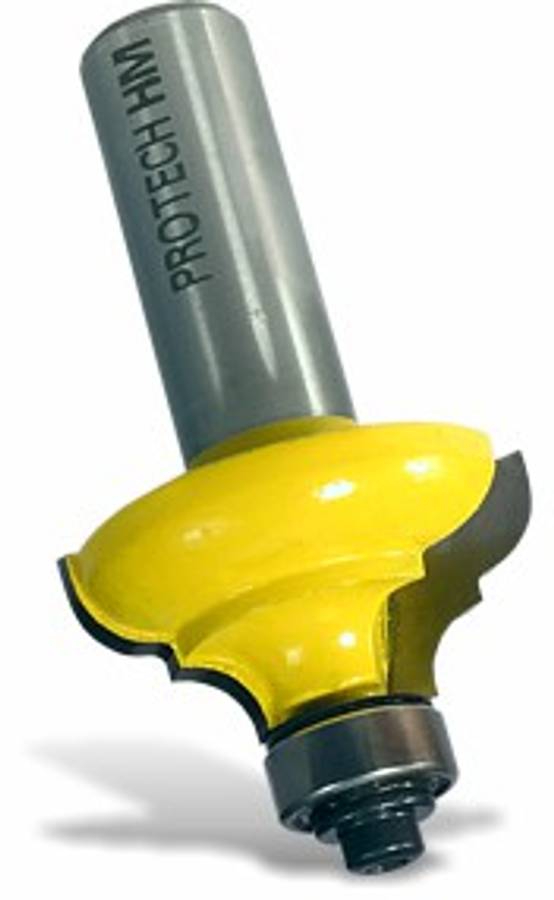

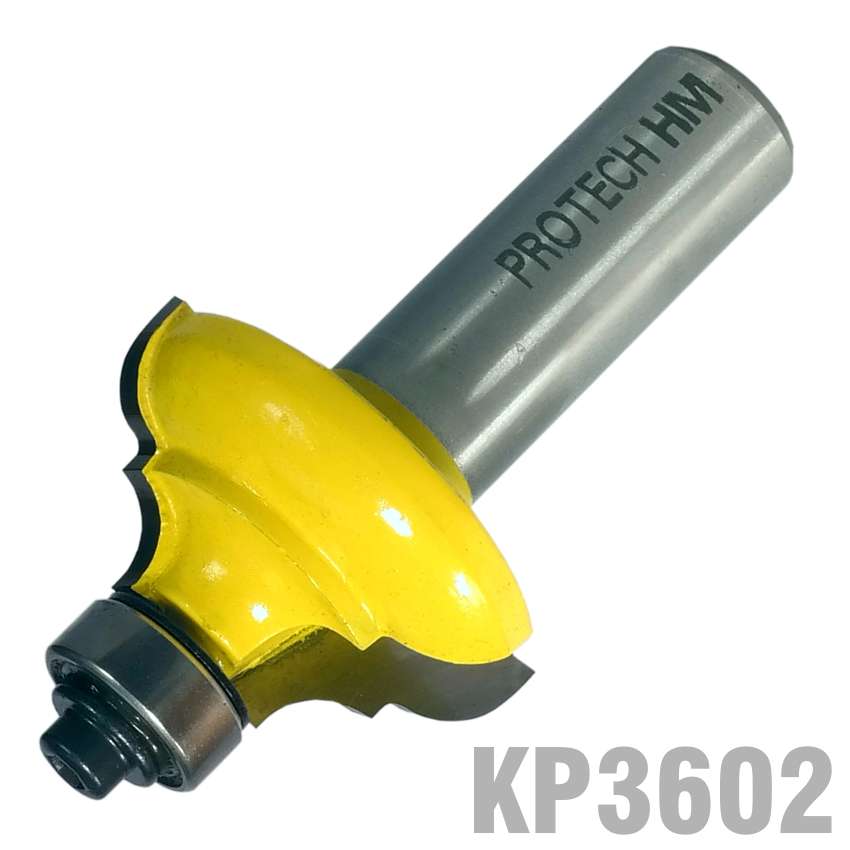

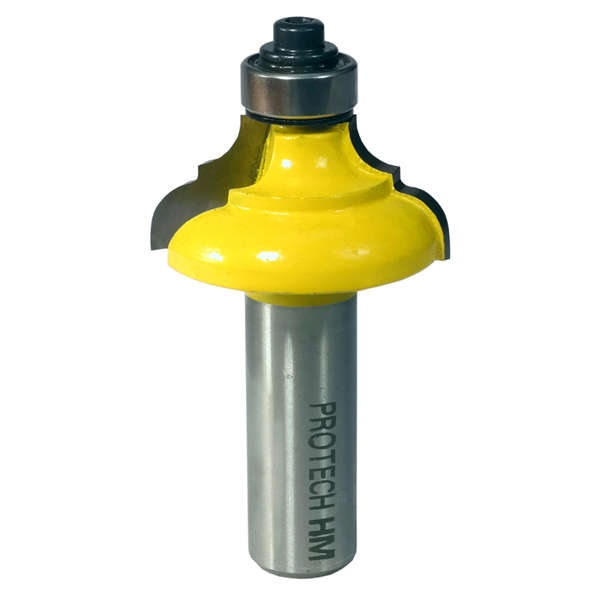

Pro-Tech - Classical Ogee Bit 1 5/16" X 5/8" 1/2" Shank - Pro-Tech - Classical Ogee Bit 1 5/16" X...

New

19 available

Indicative market price: R1,279.00

R1,065.00

17% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Toolhome397

83.33 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

18401

Bob Shop ID

689033531

Edge profile router bits
Classical Ogee profile

Carbide Tipped

The classical ogee profile router bit is designed for creating decorative mouldings or edge profiles. This cutter allows one to shape a convex and concave shape with a bead in the middle of the two curves. Picture framers love this design in combination with our classical bit range (KP3401 and KP3403).

An extra bead over the bottom corner is possible when replacing the guide bearing with a smaller size (KP100 3-8).

Change the guide bearing size

This router bit has a12.7 mm shank (shaft) that will fit most large routers. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.

PRO-TECH router bits are manufactured in Taiwan.

Features

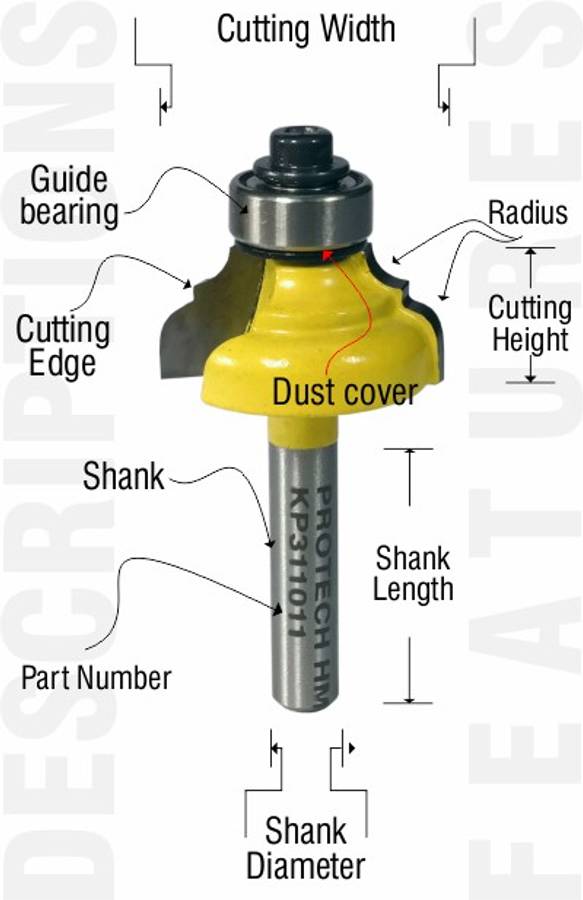

Classical ogee features

Specifications

Part No.	Shank dia.	Cutting width	Cutting Height	Radius (r)
KP3602	¹/₂ inch	1⁵/₁₆ inch	⁵/₈ inch	⁵/₆₄ inch
KP3602	12.7 mm	33.34 mm	17.46 mm	1.985 mm

Length of Shank: 38 mm
Replacement bearing part number: KP100 1-2

Classical Ogee sample

Safety

consider safety for your health and the people around you
General safety suggestions: It is advisable to always have the following items nearby and in a good condition Eye protection clean and scratch free Hearing protection quality earmuffs Dust masks discard old and dirty masks Gloves for easy handling of material and hand protection

Wear Gloves	Eye Protection	Hearing Protection	Dust Mask

To use router bits safely (and to get the best results from your router), the router bits need to be installed properly into the router's collet. Improper installation of your bits can cause excessive chatter and could increase the likelihood that the bits will break when in use.

Clean and sharp

First of all, before beginning any routing operation, check your bits to make sure that they are clean, relatively free of pitch, and most of all, sharp. If the bit is dull, chipped, is excessively burned or has any other defect, it should be sharpened or replaced before use.
