Edge Profile router bit
This profile can also be used to craft large picture frames. Table edge router bits from Pro-Tech can be used to form deep decorative detail found on dining room, coffee or end tables, window sills, chair rails and china cabinets. You can create a unique style edge or duplicate a classic design. One edge, or top and bottom edges can be moulded depending on wood thickness. Grandfather clock gooseneck mouldings are one favourite projects this router bit is called for.

With large diameter router bits best results are obtained by making several light passes, increasing depth of cut with each pass. In order to minimize burning on some woods such as cherry, maple or oak, the Router Speed Control can be used to reduce the router speed.
This router bit has a12.7 mm shank (shaft) that will fit most large routers with the correct size collet. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.
PRO-TECH router bits are manufactured in Taiwan.

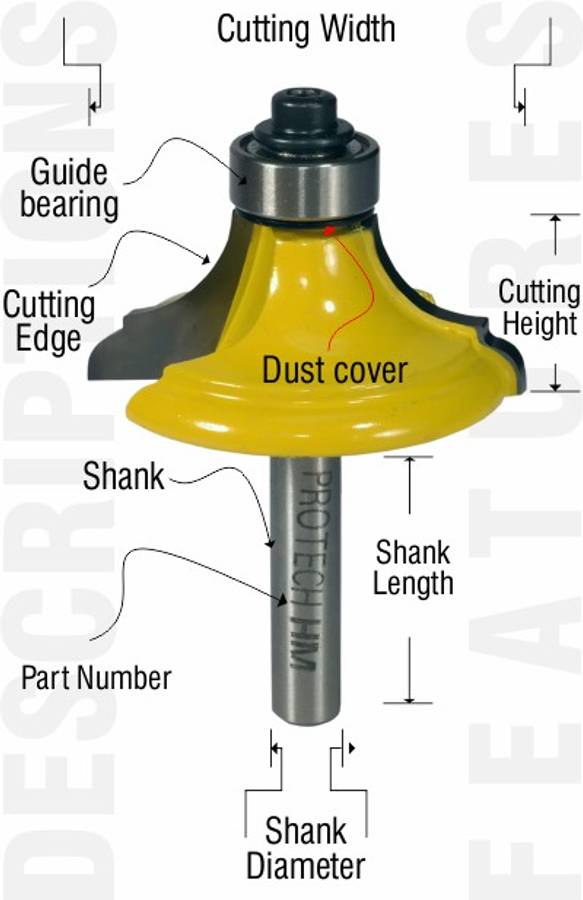

| Part No. | Shank dia. | Cutting width | Cutting Height |
| KP315411 | 1/2 inch | 1 1/2 inch | 5/8 inch |
| 12.7 mm | 38.10 mm | 15.88 mm |
Length of Shank: 38 mm
Replacement bearing: KP100 1-2

![]()
![]()
Fortunately, this is pretty easy. The best way to prolong the life of a router bit is to keep it clean. And what you need to do varies with the type of bit.
Note: Sharpening is extremely important too.
To clean bits with bearings, first, remove the bearing. Then clean the bit as you did with non-bearing bits.
It's important to remove the bearings because even though router bearings are "sealed," resin remover can sneak in and dissolve the bearing grease. If this were to happen, you would be faced with the problem of trying to lubricate a sealed bearing.
Despite the claims of bearing grease sellers, we've never had much luck with this. Once that grease is gone, just go buy a new bearing.
Periodically inspect the shanks of your router bits for rust or burrs. Either of these can be removed quickly with ScotchBrite®. Left on, they can interfere with your ability to properly tighten the bit in the collet.
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
| |||
