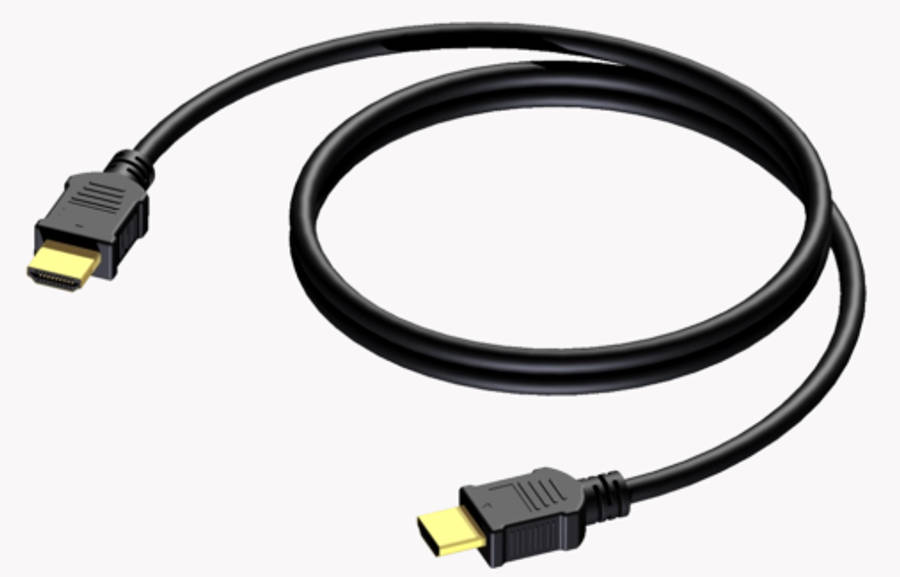

The ProCab BSV110 0.5m Basic Series HDMI Cable - HDMI A Male - HDMI A Male, is a Quality HDMI Cable Offering a Reliable Solution for HDMI Interconnections.
The BSV110 is a Basic Series quality HDMI Cable offering a Reliable Solution for HDMI Interconnections in Audiovisual Systems.
This Cable complies to the Highest available Certification standards in HDMI, supporting specific Features such as Ethernet and an Audio return Channel.
The combination of Gold-plated Contacts with Oxygen-free Copper Conductors and Triple Shielding guarantees an Optimal Performance.
Lengths below 10m are composed using a 30 AWG Conductor Section, supporting High Speed Performance with Ethernet capable of carrying 1080p Signals, 4K x 2K Cinema Resolutions and 3D Images.
Lengths of 10m and above are composed using a 28 AWG Conductor Section supporting Standard Speed Performance with Ethernet and can carry up to 1080i and 720p Signals.
The High Speed HDMI Cables are designed and tested to handle Video Resolutions of 1080p and beyond, including Advanced Display Technologies such as 4K, 3D and Deep Colour.
This Cable is also equipped with an Ethernet Cable inside.
The additional Cable allows to Connect All of Your Electronic Devices to the Internet, without using an External Ethernet Cable for Your Setup.
HDMI Stands for High-definition Multimedia Interface and is the most common Standard for Transferring High-quality Uncompressed Digital Video and Data.
All modern Video Projectors, Computers and Monitors are compatible with this Transfer type.
HDMI Cables can differ in Speed what makes them achieve Higher Resolutions.
The Resolution of 4K is up to 4 times as High as 1080p.
This Resolution consists of a Horizontal Resolution of 4000 Pixels and a Vertical Resolution of 2000 Pixels.
| Application | AV & IT |
| Series | Connect Series |
| Inner Conductor | Insulation | Material | FPE 0.7 mm (Ø) (<5 m) |
| FPE 0.9 mm (Ø) (10 m) | |||
| Shielding | Aluminium Foil | Al-mylar, 100% Coverage - 25% Overlap | |
| Drain Wire | BC 1 x 0.254 mm (Ø) (OFC) (<5 m) | ||
| BC 1 x 0.32 mm (Ø) (OFC) (10 m) | |||
| Overall Shielding | Aluminium Foil | Al-mylar, 100% Coverage - 25% Overlap | |
| Drain Wire | BC 1 x 0.254 mm (Ø) (OFC) (<5 m) | ||
| BC 1 x 0.32 mm (Ø) (OFC) (10 m) | |||
| Braiding | AL-MG 16 x 4 x 0.12 mm (Ø) | ||
| Outer Jacket | Material | PVC 6.0 mm (Ø) (<5 m) | |
| PVC 7.3 mm (Ø) (10 m) | |||
| Colour | Black | ||
| Type of Cable | HDMI High Speed with Ethernet | ||
| Inner Conductor | Material | BC 1 x 0.254 mm (Ø) (OFC) (<5 m) | |
| BC 1 x 0.32 mm (Ø) (OFC) (10 m) | |||
| Section | 0.05 mm² (<5 m) | ||
| 0.08 mm² (10 m) | |||
| Number of Conductors | 15 | ||
| RoHS2 Compliant | According EU Directive 2011/65/EU |
| Reach Compliant | According EC 1907/2006 |
| Indoor / Outdoor | Indoor |
| Temperature Range | Fixed Installation | - 20 °C till + 80 °C |
| Mobile Installation | - 15 °C till + 60 °C | |
| Bending Radius | Fixed Installation | 4 x Outer Diameter |
| Mobile Installation | 6 x Outer Diameter |
| Dielectric Strength | 0.5 (KV / 1 min. DC) |
| Rated Voltage | 30 V |
| Characteristic Impedance | 100 ± 10 |
