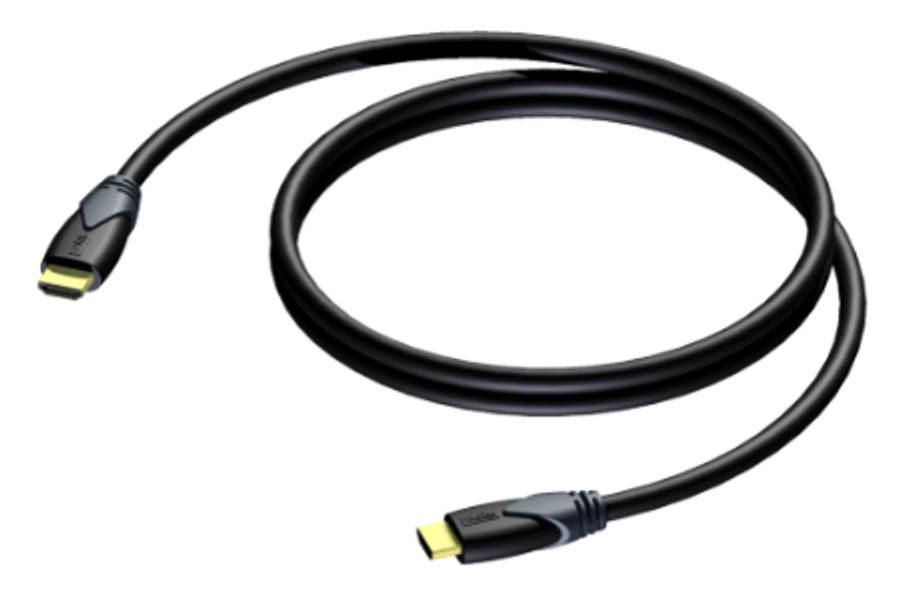

The ProCab CLV100 5m Classic Series Quality HDMI Cable - HDMI A Male - HDMI A Male, Will Provide a Reliable Solution for All Your Audiovisual Connections.
The ProCab CLV100 5m Classic Series Quality HDMI Cable Lives up to the Highest Certification standards currently available in HDMI and offers Ethernet support as well as an Audio return Channel.
The combination of Gold-plated Contacts, Oxygen-free Copper Conductors and the added Triple Shielding (to Protect against EM and RF Interference) assure an Optimal Performance.
To make sure this Performance lasts, it is Protected by a Durable Long Life Outer Jacket.
Lengths below 10m will perform as HIGH SPEED HDMI with ETHERNET.
This means that at lengths below 10 metres, the CLV100 supports not only 1080p Signals, but also Massive 4K x 2K Cinema Resolutions and 3D Images.
Lengths of 10m and above will perform at STANDARD SPEED HDMI with ETHERNET standards and can carry up to 1080i/720p Signals.
The High Speed HDMI Cables are designed and tested to handle Video Resolutions of 1080p and beyond, including Advanced Display Technologies such as 4K, 3D and Deep Colour.
This Cable is also equipped with an Ethernet Cable inside.
The additional Cable allows to Connect All of Your Electronic Devices to the Internet, without using an external Ethernet Cable for Your setup.
HDMI Stands for High-definition Multimedia Interface and is the most common Standard for Transferring High-quality Uncompressed Digital Video and Data.
All modern Video Projectors, Computers and Monitors are compatible with this Transfer type.
HDMI Cables can differ in Speed what makes them achieve Higher Resolutions.
The Resolution of 4K is up to 4 times as High as 1080p.
This Resolution consists of a Horizontal Resolution of 4000 Pixels and a Vertical Resolution of 2000 Pixels.
| Application | AV & IT |
| Series | Classic Series |
| Inner Conductor | American Wire Gauge | 28 AWG (< 5 m) | |
| 24 AWG (5 - 10 m) | |||
| 23 AWG (15 - 20 m) | |||
| Material | SC 1 x 0.32 mm (Ø) (OFC) (< 5 m) | ||
| SC 1 x 0.525 mm (Ø) (OFC) (5 - 10 m) | |||
| SC 1 x 0.573 mm (Ø) (OFC) (15 - 20 m) | |||
| Shielding | Aluminium Foil | Al-mylar, 100% coverage - 25% Overlap | |
| Drain wire | BC 7 x 0.127 mm (Ø) (OFC) | ||
| Overall Shielding | Aluminium Foil | Al-mylar, 100% coverage - 25% Overlap | |
| Braiding | BC 16 x 10 x 0.10 mm (Ø) (OFC) (<5 m) | ||
| BC 24 x 10 x 0.10 mm (Ø) (OFC) (5- 10 m) | |||
| BC 24 x 10 x 0.10 mm (Ø) (OFC) (15- 20 m) | |||
| Outer Jacket | Material | PVC 7.3 mm (Ø) (<5 m) | |
| PVC 8.8 mm (Ø) (5- 10 m) | |||
| PVC 9.3 mm (Ø) (15- 20 m) | |||
| Attenuation | Frequency (MHz) | Range | 300 kHz ~ 825 MHz |
| Max. Attenuation dB | < 5 dB | ||
| Range | 825 MHz ~ 2475 MHz | ||
| Max. Attenuation dB | < 12 dB | ||
| Range | 2475 MHz ~ 4125 MHz | ||
| Max. Attenuation dB | < 20 dB | ||
| Dielectric Test | 500 VAC / min | ||
| Intraskew | 151 ps/Cable | ||
| Resistance | Min. 100 M / km @ 20°C | ||
| Delay | 5.05 ns/m | ||
| Impedance | 100 ± 10 | ||
