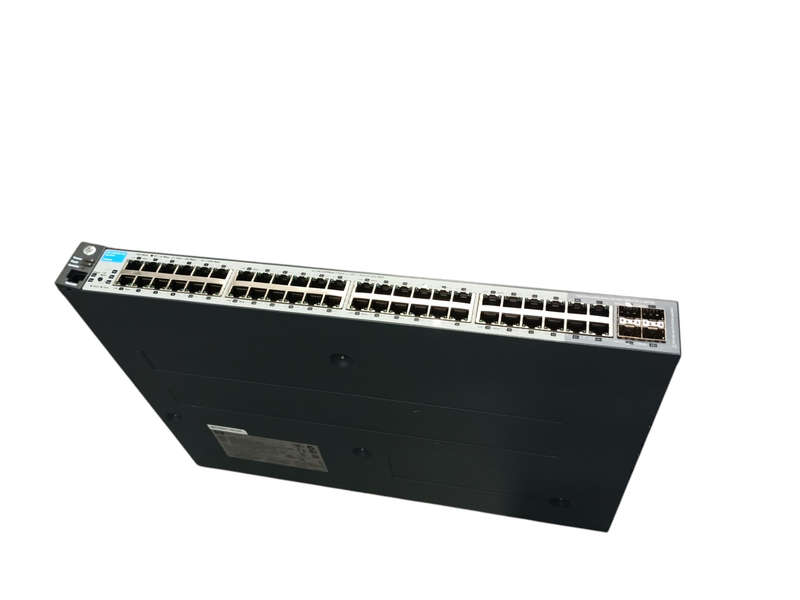

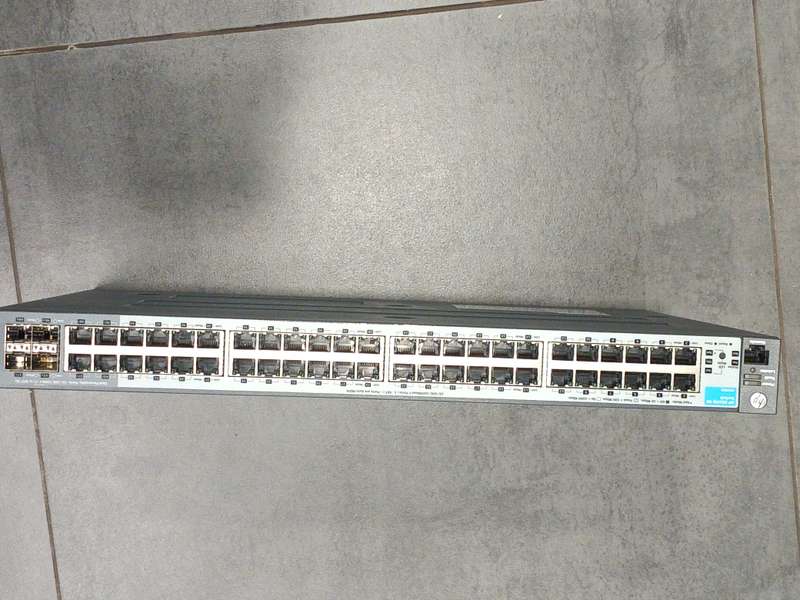

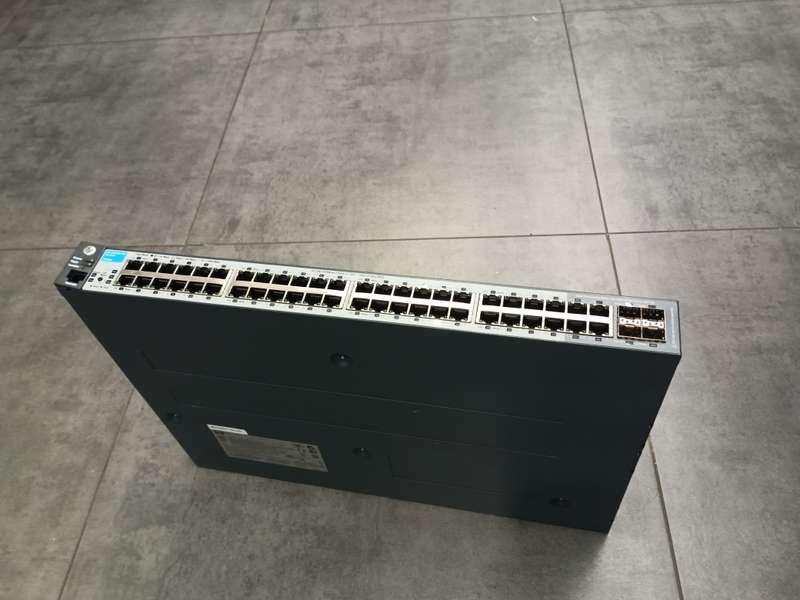

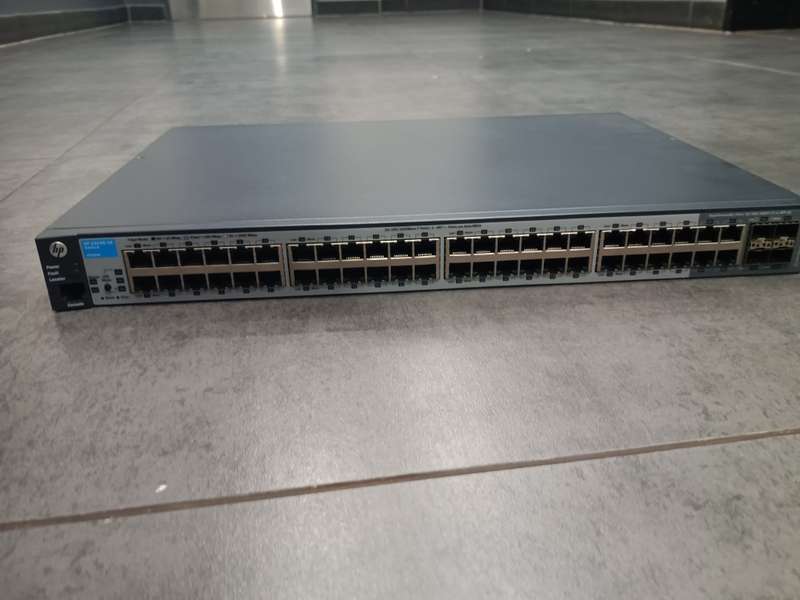

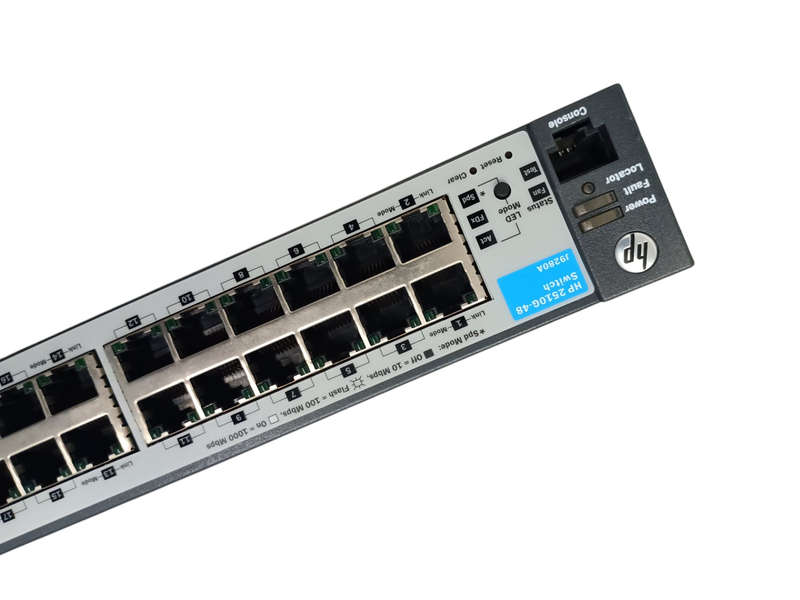

HP ProCurve 2510G-48 (J9280A)
The [HP ProCurve 2510G-48 (J9280A)]() is a reliable Layer 2 managed switch designed for small to medium-sized business networks requiring Gigabit connectivity. Below are its key specifications:
Hardware Specifications
Ports: 48 auto-sensing 10/100/1000 Mbps RJ-45 ports
Dual-Personality Ports: 4 combo ports supporting either RJ-45 or SFP (mini-GBIC) for fiber uplinks
Switching Capacity: 96 Gbps
Throughput: Up to 6.5 million packets per second (pps)
Latency: Less than 5.4 microseconds for 64-byte packets
Processor: MIPS @ 264 MHz
Memory: 64 MB SDRAM, 16 MB flash
Packet Buffer Size: 1.5 MB
Dimensions: 442 x 322.6 x 43.2 mm (1U rack-mountable)
Weight: Approximately 3.9 kg
Power Consumption: 92 W
Noise Level: 40.5 dB
Network Features
Layer 2 Switching: Supports VLANs (IEEE 802.1Q), Spanning Tree Protocol (IEEE 802.1s), and Link Aggregation Control Protocol (IEEE 802.3ad)
Auto-MDIX: Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Management: Web browser interface, command-line interface (CLI), SNMP v1/v2c/v3, RMON (groups 1, 2, 3, 9)
Security: IEEE 802.1X port-based access control, RADIUS, TACACS+, Secure Sockets Layer (SSL), and Secure Shell (SSH)
Stacking Capability: Single IP address management for a virtual stack of up to 16 switches
🛠 Installation and Mounting
Rack Mountable: Standard 1U height for easy integration into equipment racks
Wall Mountable: Can be mounted horizontally with RJ-45 ports facing up or down

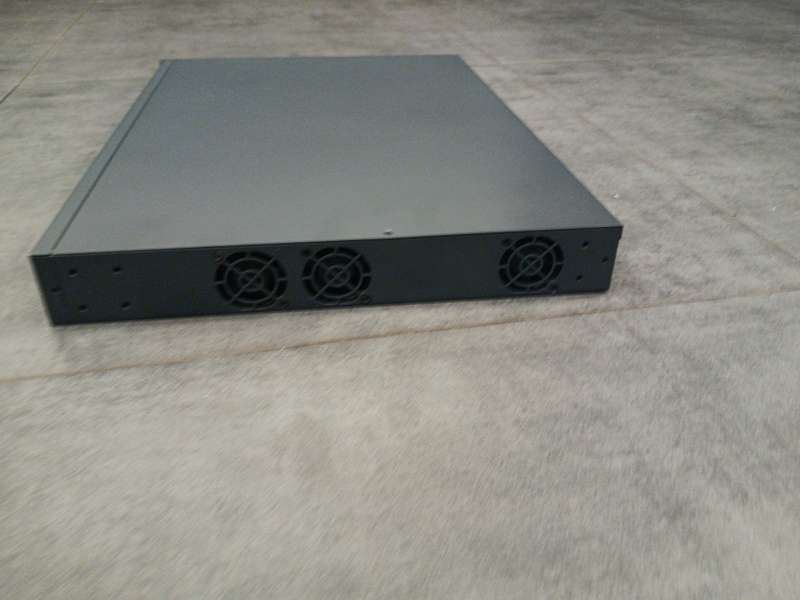

Cooling: Built-in fans for active cooling
