Professional Visual Inspecting Cleaning Borescope

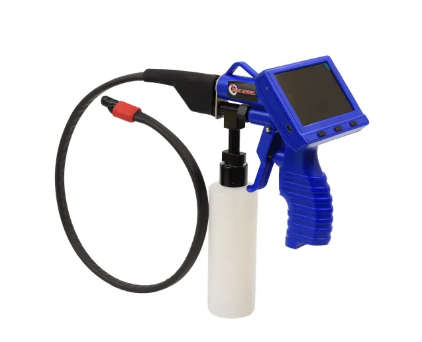

MAC AFRIC Cleaning Camera Borescope

• Overview:

  • The MAC AFRIC Cleaning Camera Borescope is an innovative inspection tool that integrates both camera and pneumatic spray cleaning functionality. This versatile device is designed to accurately locate and clean problematic dirty areas inside air-conditioning evaporators, motor vehicle radiators, and other hard-to-reach spaces. The ability to simultaneously view the cleaning process on a 4.3" LCD screen while cleaning makes it ideal for automotive, air conditioning, and various industrial applications.

• Key Features:

  • Integrated Pneumatic Spray Cleaning:

    • This borescope features an integrated pneumatic spray cleaning attachment, allowing for real-time inspection and cleaning. By connecting a compressor and adding a suitable detergent, users can efficiently clean dirt, grime, and debris from confined areas such as air conditioning evaporators and radiators while observing the progress on the screen.

  • 3-Stage 9mm Camera with Side Spray Design:

    • The 9mm camera is designed with a side spray camera head, ensuring effective and precise cleaning of targeted areas. This side spray design optimizes cleaning efficiency by directing the spray exactly where it is needed, allowing for focused cleaning while viewing the area of concern.

  • 4.3 LCD Screen:

    • The 4.3 LCD screen provides a clear and detailed view of the inspected area. The screen allows users to monitor the cleaning process in real-time, ensuring that the cleaning is being done thoroughly and effectively.

  • Flexible Snake Tube:

    • The 800mm flexible snake tube allows the borescope to reach deep into tight spaces and around obstacles, making it ideal for cleaning and inspecting areas that are otherwise difficult to access.

  • Wide Application:

    • This borescope is widely used in automotive, air conditioning, and various industrial fields, making it a valuable tool for both maintenance professionals and DIY enthusiasts. It is especially effective in environments where cleanliness and maintenance are crucial, such as vehicle radiators and air conditioning systems.

  • Compressor Required:

    • A compressor is required for operation, providing the necessary air pressure to power the cleaning function. This makes the tool more efficient and effective in tackling cleaning jobs that require a pressurized spray.

Technical Specifications:

• Tube Length: 800 mm

  • Provides the reach necessary to inspect and clean deep, hard-to-reach areas.

• Working Current:

  • 6 × 0603 LEDs: The LEDs illuminate the inspection area, providing adequate lighting for viewing in low-light conditions.

• Screen Size: 4.3

  • A clear 4.3-inch LCD screen allows for easy monitoring of the cleaning and inspection process in real-time.

• View Angle: 60º

  • The 60º view angle ensures a wide field of view, making it easier to inspect larger areas in a single frame.

• Focus Distance: 30-80 mm

  • The borescopes focus range ensures that users can view areas with great detail, from 30 mm to 80 mm in focus. This is ideal for inspecting dirt buildup and ensuring precise cleaning.

• Effective Pixels: 720 × 625

  • The 720 × 625 effective pixels provide clear and detailed images for accurate inspection and monitoring.

• Image Sensor: CMOS Sensor

  • The CMOS sensor captures high-quality images, offering clear visuals during both inspection and cleaning processes.

• Screen Working Current: 500 mA

  • The 500 mA screen working current ensures stable operation of the LCD screen during prolonged use.

Benefits of the MAC AFRIC Cleaning Camera Borescope:

• Dual Functionality:

  • Combines real-time inspection and cleaning, allowing users to identify dirty or clogged areas and clean them simultaneously, significantly improving workflow efficiency.

• Increased Inspection Accuracy:

  • With the cameras side spray head, users can ensure that the cleaning is focused and effective, as they can visually track the process and confirm that the target areas are thoroughly cleaned.

• Versatile Use:

  • Perfect for inspecting and cleaning a wide range of systems, including automotive radiators, HVAC systems, and other industrial equipment that require precise cleaning and maintenance.

• Flexible Reach:

  • The 800mm flexible tube allows for greater maneuverability, making it easier to reach into tight spots and perform inspections or cleaning in confined spaces.

• Real-Time Visual Feedback:

  • The 4.3 LCD screen provides immediate visual feedback on the inspection area, allowing users to monitor the progress and effectiveness of the cleaning operation.

• Efficient Cleaning:

  • The ability to use a compressor to provide pressure for cleaning ensures more effective removal of dirt, grime, and debris, compared to manual cleaning methods.

Package Information:

• Package Dimensions:

  • Length: 32.80 cm

    • Ensures the borescope and its components are securely packaged, reducing the risk of damage during transit.

  • Width: 36.20 cm

    • The width accommodates the borescope, flexible tube, screen, and any necessary accessories, ensuring all components are stored neatly.

  • Height: 11.60 cm

    • The height of the package provides enough space for the device and its protective packaging, ensuring safe delivery.

• Package Weight: 2.04 kg

  • The package weight indicates a lightweight, easy-to-handle tool that offers portability without sacrificing durability.
