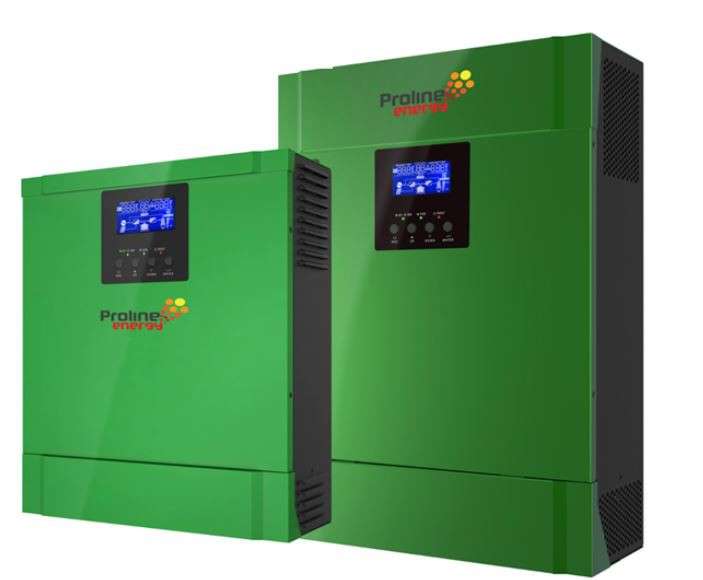

Proline Energy 5000VA/4000W Pure Sine Wave Inverter with PWM Controller - Proline
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Features:
- Pure Sine Wave Inverter
- Built-in PWM Solar Charge Controller
- Selectable Input Voltages for Home Appliances and
- Selectable Charging Current
- Configurable AC / Solar input priority via LCD Setting
- Parallel Operation with up to 6 Units available on 5KVA (Parallel Kit available separately)
- Overload and Short Circuit Protection
- Smart Battery Charger Design
- Cold Start Function
- Optional Remote Panel Available
Specifications:
Capacity - VA: 5000 W: 4000
Input Voltage: 230 VAC
Surge Power: 10000 VA
Acceptable Voltage Range: 170 - 280 VAC (Personal Computers), 90 - 280 VAC (Home Appliances)
Frequency: 50 Hz / 60 Hz (Auto Sensing)
Output - 50 Hz / 60 Hz (Auto Sensing): 230 VAC +- 5%
Efficiency (Peak): 93%
Transfer Time: 10-20 ms (Typical)
Waveform (Battery Mode): Pure Sine Wave
Battery Voltage: 48 VDC
Floating Charge Voltage:54 VDC
Shutdown Voltage: Configurable
Overcharge Protection: 60 VDC
Maximum PV Array Power: 3000 W
MPPT Range at Operating Voltage: 60 - 115 VDC
Maximum PV Array Open Circuit Voltage: 105 VDC
Maximum Solar Charge Current: 60 A
Maximum Charge Current: 110 A (AC + Solar)
Maximum Efficiency: 98%
Standby Power Consumption: 2W
Physical Dimension D x W x H (mm): 120 x 295 x 468
Net Weight (kg): 9.8
Operating Humidity: 0 to 90% Relative Humidity (Non-Condensing)
Operating Temperature: 0 C to 55 °C
Storage Temperature: -15 C to 60 °C
Expected Run times:
